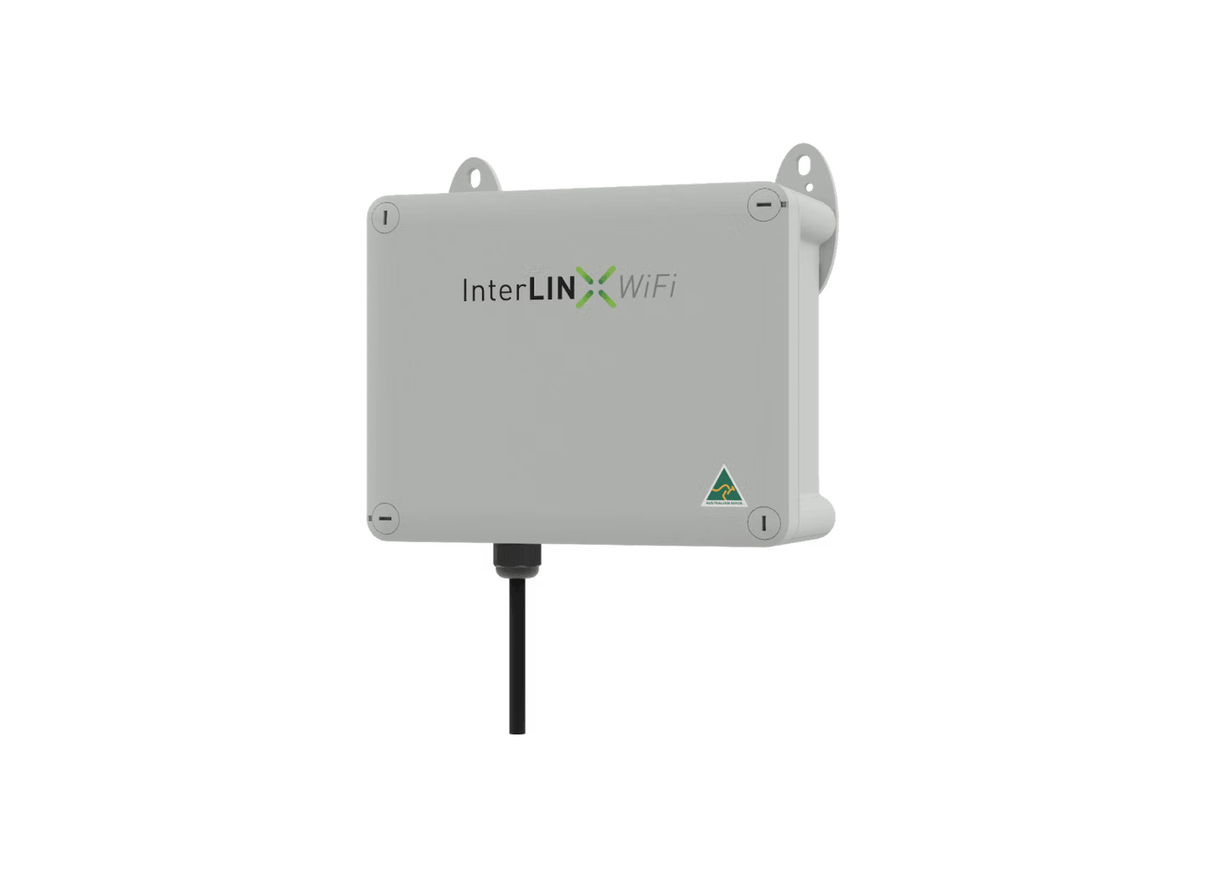

MATelec FPC-30126-PE InterLINX WiFi IoT Communicator with RS-485 Modbus & 5A Relay (IP55 Poly)

Indoor plant rooms and compact pump enclosures require space-efficient telemetry modules to connect equipment to cloud management systems. The MATelec FPC-30126-PE InterLINX WiFi IoT Communicator provides 2.4GHz Wi-Fi cloud data logging and status monitoring in a compact halogen-free polymer enclosure.

The device incorporates an RS-485 Modbus RTU serial port supporting pre-configured registers for MATelec controllers to report run hours, starts per hour, and diagnostic alarms. Two onboard digital inputs provide pulse counting to compute water flowrates, while a 250Vac 5A changeover relay provides remote control switching from the Propitect cloud.

Housed in a halogen-free polypropylene casing measuring 199 mm W x 158 mm H x 93 mm D with an IP55 indoor rating, the unit operates from a 230Vac single-phase electrical supply. Internal low-voltage circuitry powers the Wi-Fi module and telemetry interfaces.

The unit includes a local 45 mm stub 2.4GHz Wi-Fi antenna with an SMA connector and a 1.5 m 10 Amp mains cable. Initial commissioning is performed wirelessly via an internal Wi-Fi hotspot and responsive browser interface.

Features

• Compact polypropylene enclosure measuring 199 mm W x 158 mm H x 93 mm D with IP55 rating
• Integrates directly with local 2.4GHz Wi-Fi networks for telemetry upload to Propitect cloud
• RS-485 Modbus RTU port with pre-mapped registers for MATelec pump controller monitoring
• Two digital inputs supporting pulse counting functionality for liquid flowrate and volume tracking
• One changeover relay output rated at 250Vac 5A for remote cloud-triggered equipment control
• Supplied with a module-mounted 45 mm stub 2.4GHz Wi-Fi antenna with female SMA connector
• Pre-wired with a 1.5 m mains power cable fitted with a standard 10 Amp 3-pin Australian plug
