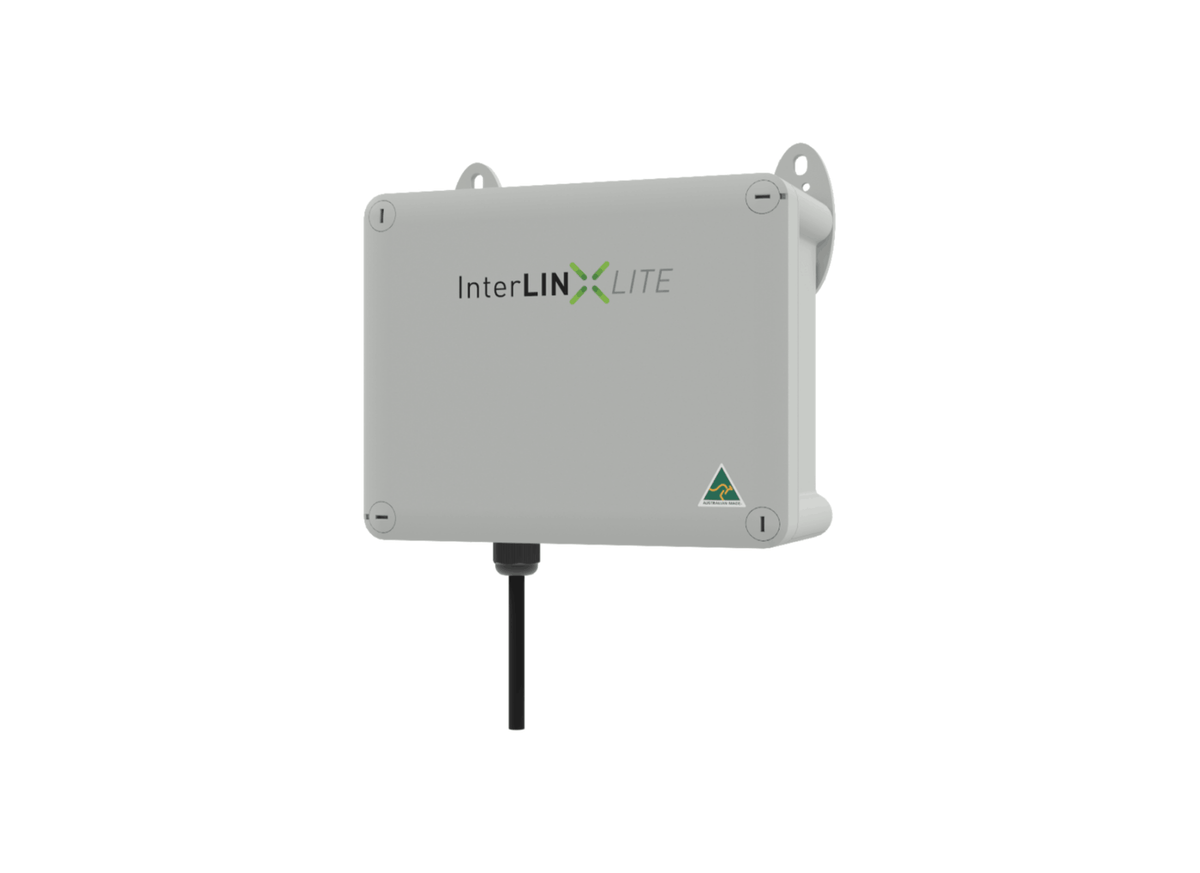

MATelec FPC-30127-ME InterLINX LITE 4G LTE Communicator with SMS Alerts & Cloud IoT (IP65 Metal)

Monitoring outdoor water infrastructure requires simultaneous text message alerting for immediate response and cloud telemetry for long-term data logging. The MATelec FPC-30127-ME InterLINX LITE SMS/IoT Communicator utilizes the 4G LTE cellular network to deliver dual-channel SMS alerts and Propitect cloud tracking within a metal outdoor housing.

The communicator monitors two digital 12Vdc inputs (B0 and B1) that also function as pulse counters for flowrate and volume calculation. When alarm setpoints are triggered, the device sends SMS texts to up to 10 stored mobile contacts while updating the Propitect cloud dashboard. An onboard 250Vac 5A relay output can be controlled remotely via SMS commands or cloud interface.

Operating on a single-phase 230Vac supply, the unit is protected in a 200 mm W x 300 mm H x 150 mm D powder-coated mild steel enclosure rated at IP65 for outdoor service. Supply voltage monitoring provides automatic alerts in the event of power supply anomalies.

The panel includes a top-mounted low-profile sealed vandal and weather-resistant antenna and a pre-wired 1.5 m 10 Amp power lead. A standard 4G LTE Micro SIM card is required for cellular network operation.

Features

• Powder-coated mild steel enclosure measuring 200 mm W x 300 mm H x 150 mm D with IP65 rating
• Utilizes the 4G LTE cellular network for simultaneous SMS alerting and Propitect cloud telemetry
• Stores up to 10 mobile phone numbers for customizable SMS alarm, status, and reminder dispatches
• Two digital inputs supporting pulse counting modes for fluid flowrate and consumption logging
• One 250Vac 5A changeover relay output controllable via SMS mobile commands or cloud interface
• Top-mounted sealed vandal and weather-resistant antenna with female SMA connection
• Supplied with a pre-wired 1.5 m power supply cable with standard 10 Amp 3-pin Australian plug
