MATelec FPC-30127-PE InterLINX LITE 4G LTE Communicator with SMS Alerts & Cloud IoT (IP55 Poly)

Compact indoor control cabinets and plant rooms often require cellular telemetry without the bulk of heavy metal housings. The MATelec FPC-30127-PE InterLINX LITE SMS/IoT Communicator delivers 4G LTE cellular SMS alerting and Propitect cloud monitoring within a lightweight halogen-free polymer enclosure.

The unit features two digital inputs (B0 and B1) with a trigger voltage of 2.5Vdc and input impedance of 2400 ohms, both configurable for pulse flow counting. In addition to transmitting data to Propitect, the module sends SMS alerts to up to 10 mobile numbers upon input triggers. An integrated 250Vac 5A relay output allows remote equipment switching via mobile SMS commands.

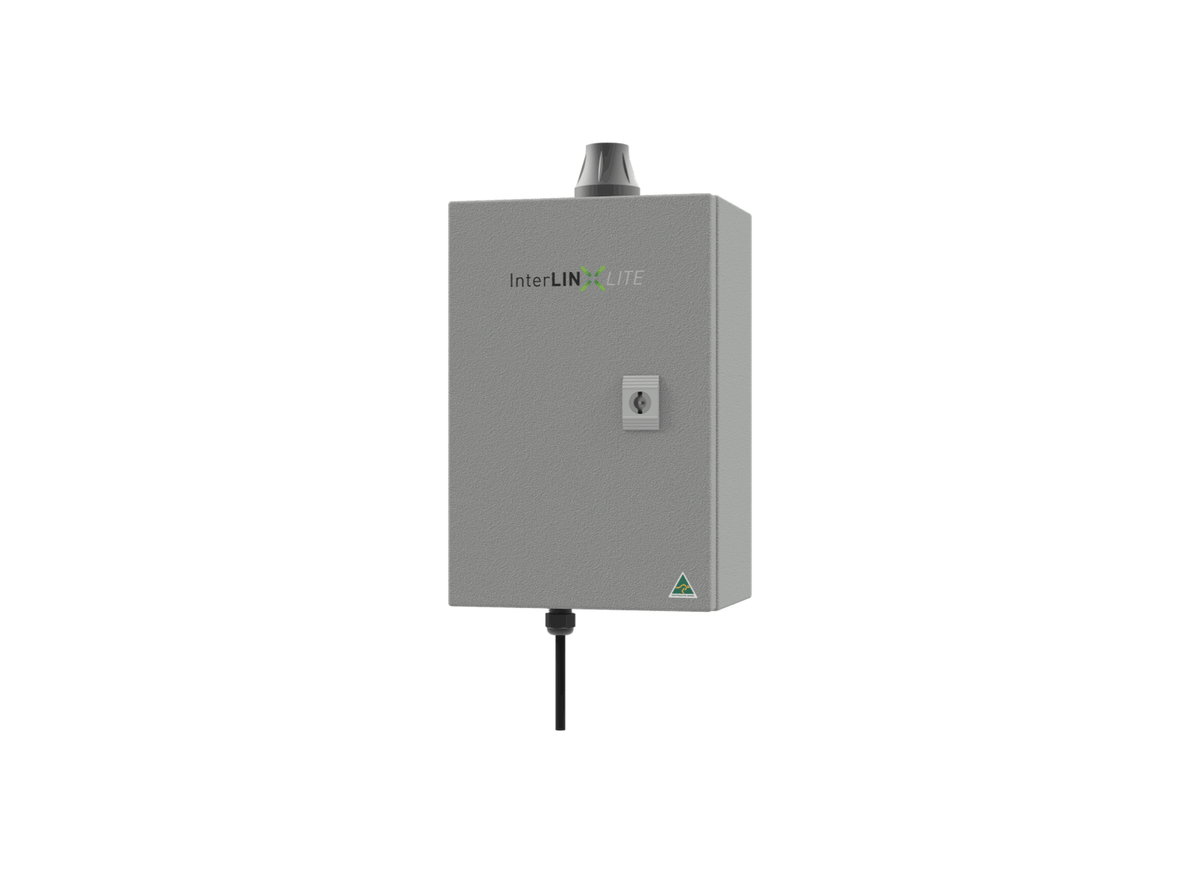

Built into an IP55 rated halogen-free polypropylene enclosure measuring 199 mm W x 158 mm H x 93 mm D, the unit connects to a 230Vac single-phase supply via an attached 1.5 m power lead with a 10A plug. It includes continuous internal monitoring of supply voltage to report power irregularities.

The module is supplied with a local 45 mm stub antenna connected via an SMA port. Configuration is managed through a web-based interface and SMS text commands using a standard cellular Micro SIM card.

Features

• Halogen-free polypropylene enclosure measuring 199 mm W x 158 mm H x 93 mm D with IP55 rating
• 4G LTE cellular connectivity providing dual SMS alarm messaging and Propitect cloud monitoring
• Integrated phonebook portal supporting up to 10 mobile contacts for automated alert messages
• Two digital inputs configurable as pulse counters for flowrate and volumetric consumption alarms
• One 250Vac 5A changeover relay output controllable remotely via incoming mobile SMS commands
• Equipped with a local 45 mm stub cellular antenna and supply voltage monitoring circuitry
• Pre-fitted with a 1.5 m mains power supply cable with standard 10 Amp 3-pin Australian plug
