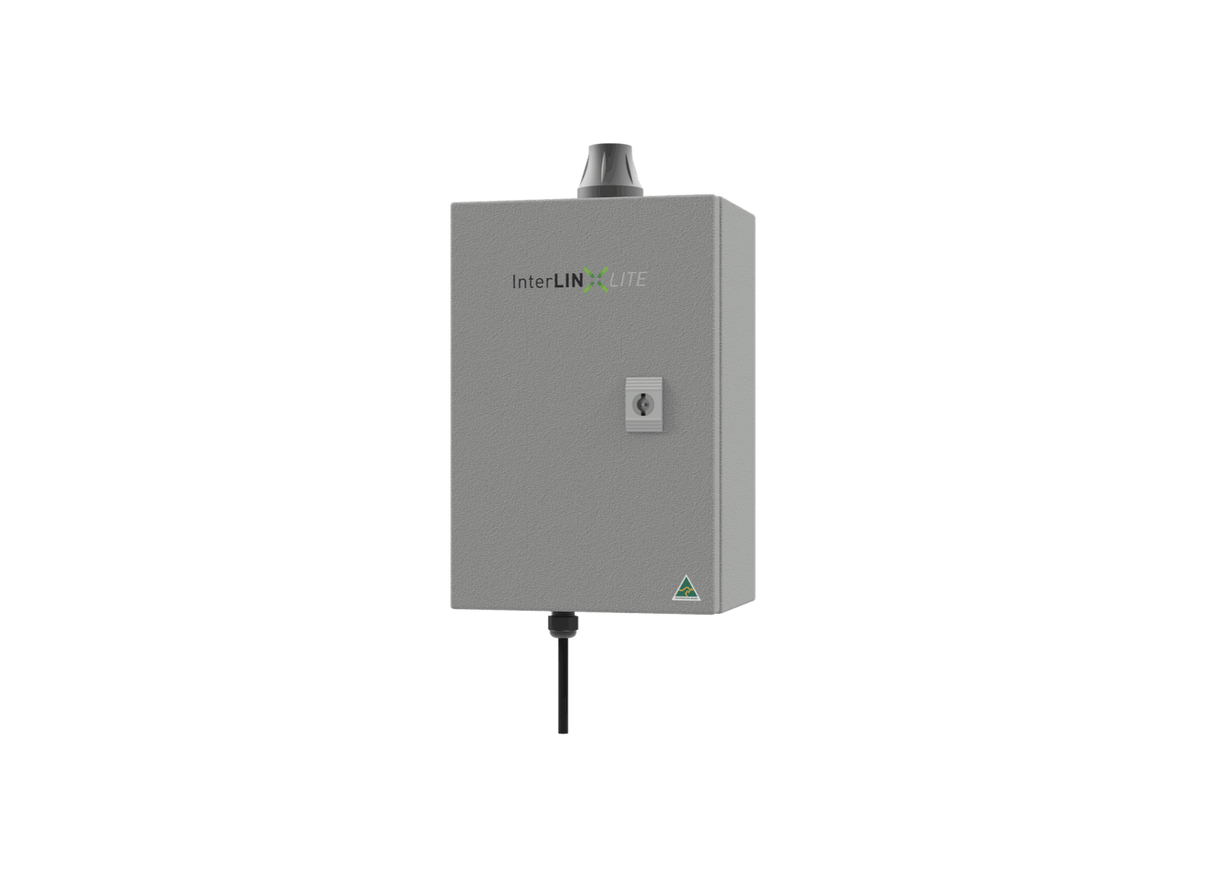

MATelec FPC-30127-SOLAR InterLINX LITE 4G LTE Communicator with 40W Solar Panel, SMS & Cloud (IP65)

Remote dams, municipal outfalls, and civil storage reservoirs often require cellular cloud logging where electrical grid infrastructure does not exist. The MATelec FPC-30127-SOLAR InterLINX LITE Communicator integrates an off-grid solar power system with 4G LTE cellular communication to provide SMS alarm messaging and Propitect cloud monitoring.

The communicator tracks two digital 12Vdc inputs configurable as high-speed pulse counters for liquid flow measurement. During alarm events or threshold triggers, the unit transmits SMS alerts to up to 10 mobile numbers and updates the Propitect cloud dashboard. An onboard 250Vac 5A changeover relay output enables remote switching of external valves or equipment via cellular commands.

Enclosed in a 300 mm W x 400 mm H x 200 mm D powder-coated mild steel housing rated at IP65, the system is powered by an internal 12Vdc battery pack and solar charge regulator coupled to an external 40 Watt solar panel.

The unit is fitted with a top-mounted sealed vandal-resistant IP65 antenna and internal wiring terminals. It provides an autonomous monitoring solution requiring only a standard 4G LTE Micro SIM card and solar panel positioning.

Features

• IP65 outdoor rated powder-coated mild steel enclosure measuring 300 mm W x 400 mm H x 200 mm D
• Autonomous 12Vdc solar power system complete with internal battery bank and 40W solar panel
• 4G LTE cellular modem supporting dual SMS alarm dispatch to 10 numbers and Propitect cloud upload
• Two digital/pulse inputs for flowrate computation, volume threshold alerts, and switch monitoring
• One changeover relay output rated at 250Vac 5A for remote SMS or cloud-triggered equipment control
• Supplied with a top-mounted sealed vandal and weather-resistant external cellular antenna
• Includes solar panel mounting hardware, internal charge controller, and DIN-rail wiring terminals
