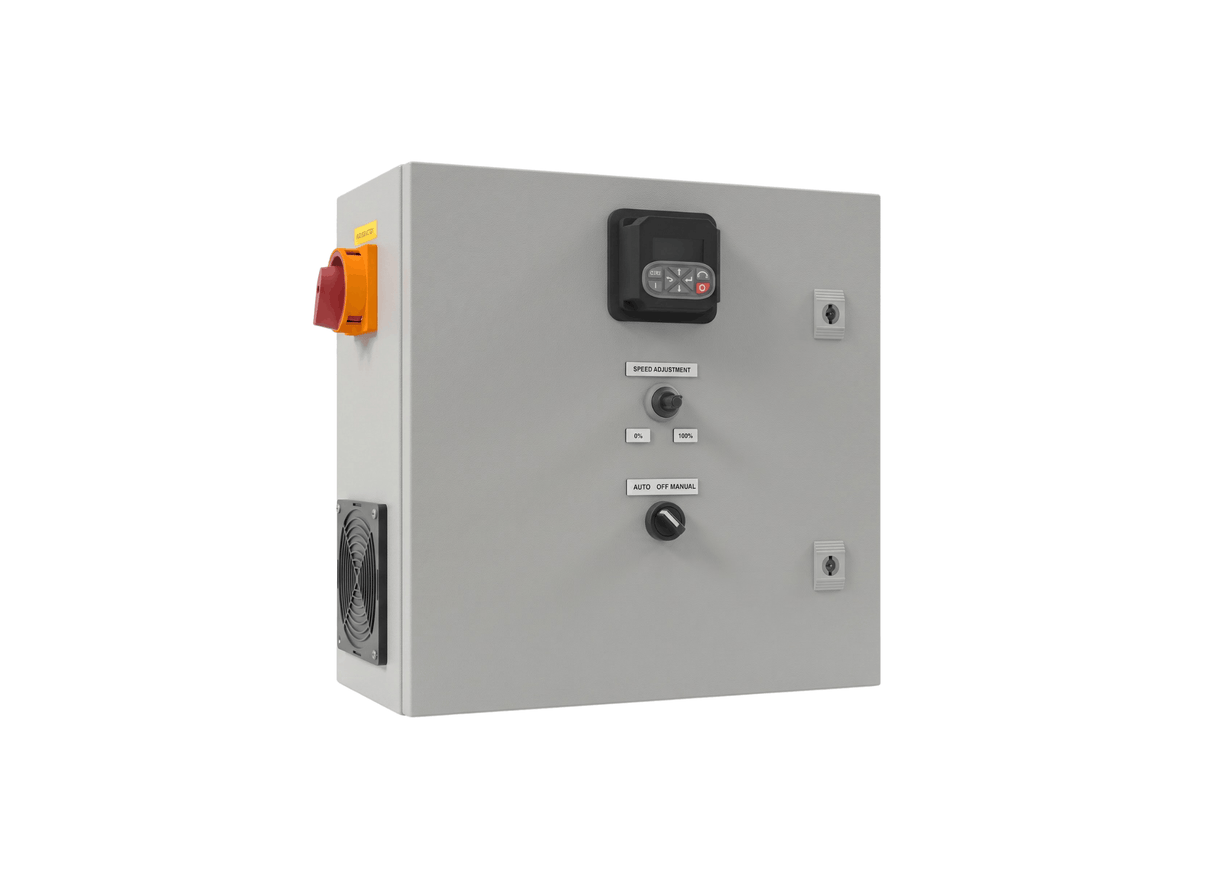

MATelec FPC-33905-B Mild Steel IP44 3PH 1.5kW Variable Speed Drive Controller

Suited to low-power three-phase pumping duties, the MATelec Australia FPC-33905-B variable speed controller is rated at 1.5kW. Housed in a powder-coated mild steel enclosure measuring 400x400x200mm, the system provides variable speed operation for pump applications requiring controlled motor starting.

The controller operates from a three-phase 400Vac supply and delivers variable speed control through an integrated VSD module. A VSD user interface displays pump status, speed and current draw. An auto/off/manual selector and potentiometer provide manual speed adjustment. The VSD starts and stops based on digital inputs.

The enclosure is manufactured from powder-coated mild steel with an IP44 rating. The cabinet includes a padlockable mains isolator switch for lock-out safety during maintenance and a removable gland plate to simplify cable entry. Optional IP54 enclosure with inner door is available.

Prior to installation, ensure the power supply is isolated. All electrical connections must be carried out by a suitably qualified and registered electrician in accordance with relevant electrical standards.

• Variable speed drive module for controlled motor starting
• VSD user interface for pump status, speed and current draw
• Auto/off/manual selector and potentiometer for speed adjustment
• VSD starts/stops based on digital inputs
• Pump overload shutdown protection
• Under-voltage and over-voltage protection
• Phase failure protection and short-circuit protection
• IP44 powder-coated mild steel enclosure
• Padlockable mains isolator switch and removable gland plate
