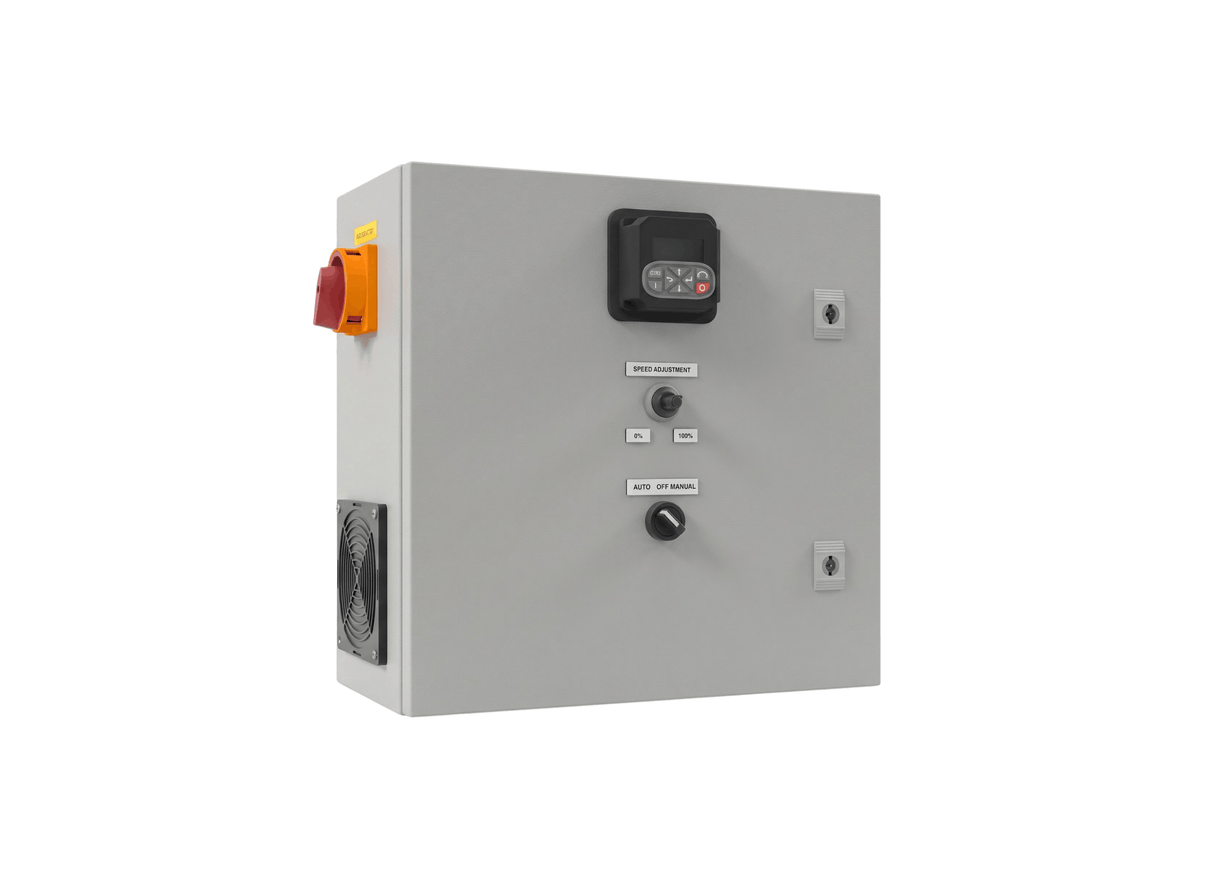

MATelec FPC-33905-C Mild Steel IP44 3PH 2.2kW Variable Speed Drive Controller

Operating on a three-phase 400Vac supply, the MATelec Australia FPC-33905-C variable speed controller is rated at 2.2kW. The VSD module provides controlled motor starting and operation for pump systems. The controller is housed in an IP44 powder-coated mild steel enclosure measuring 400x400x200mm.

Variable speed operation is managed through the integrated VSD with user interface displaying pump status, speed and current draw. An auto/off/manual selector and potentiometer allow manual speed adjustment. The VSD starts and stops based on digital input signals. Protection features include pump overload shutdown, under-voltage and over-voltage protection, phase failure protection and short-circuit protection.

The enclosure is manufactured from powder-coated mild steel with an IP44 rating. The cabinet includes a padlockable mains isolator switch and a removable gland plate. An optional IP54 enclosure with inner door is available for applications requiring additional protection.

Installation and servicing must be performed with the supply isolated. Electrical connections require a qualified and registered electrician to maintain compliance with wiring standards. Additional power ratings are available on request beyond the 2.2kW configuration.

• Integrated variable speed drive with 2.2kW power rating
• VSD user interface for pump status, speed and current draw
• Auto/off/manual selector with potentiometer speed adjustment
• VSD starts/stops based on digital inputs
• Pump overload shutdown and under/over-voltage protection
• Phase failure protection and short-circuit protection
• IP44 powder-coated mild steel enclosure
• Padlockable mains isolator switch and removable gland plate
