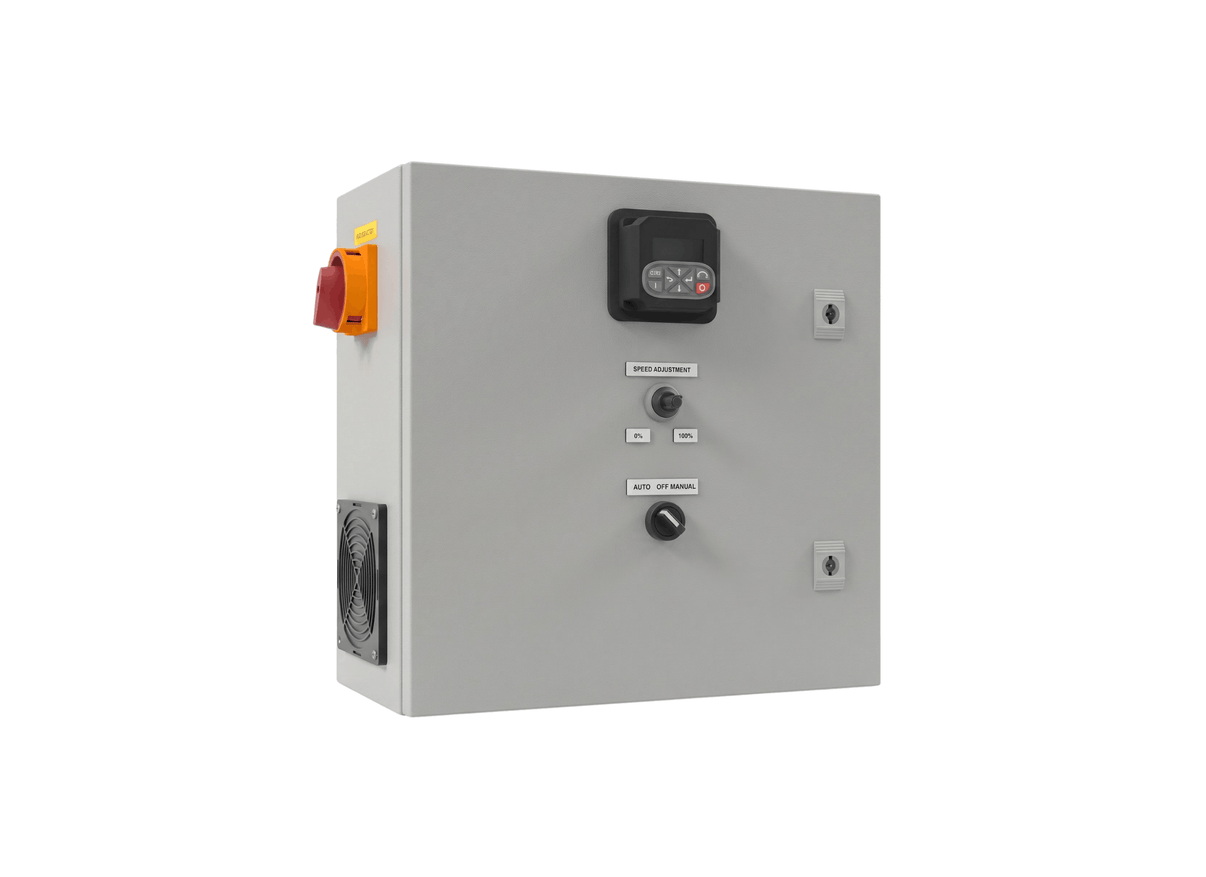

MATelec FPC-33905-E Mild Steel IP44 3PH 4kW Variable Speed Drive Controller

Configured for medium-power pumping duties, the MATelec Australia FPC-33905-E variable speed controller delivers 4kW of drive capacity. The system operates from a three-phase 400Vac supply and is housed in an IP44 powder-coated mild steel enclosure measuring 500x500x300mm.

The integrated VSD provides variable speed operation with user interface displaying pump status, speed and current draw. An auto/off/manual selector and potentiometer allow manual speed adjustment. The VSD starts and stops based on digital input signals. Protection features include pump overload shutdown, under-voltage and over-voltage protection, phase failure protection and short-circuit protection.

The enclosure is manufactured from powder-coated mild steel with an IP44 rating. The cabinet includes a padlockable mains isolator switch and a removable gland plate. An optional IP54 enclosure with inner door is available. The larger 500x500x300mm cabinet accommodates the 4kW drive configuration.

Isolate the supply before installation or servicing. Electrical connections must be performed by a qualified and registered electrician in accordance with relevant standards.

• Variable speed drive with 4kW power rating
• VSD user interface for pump status, speed and current draw
• Auto/off/manual selector with potentiometer speed adjustment
• VSD starts/stops based on digital inputs
• Pump overload shutdown and under/over-voltage protection
• Phase failure protection and short-circuit protection
• IP44 powder-coated mild steel enclosure
• Padlockable mains isolator switch and removable gland plate
• 500x500x300mm enclosure size
