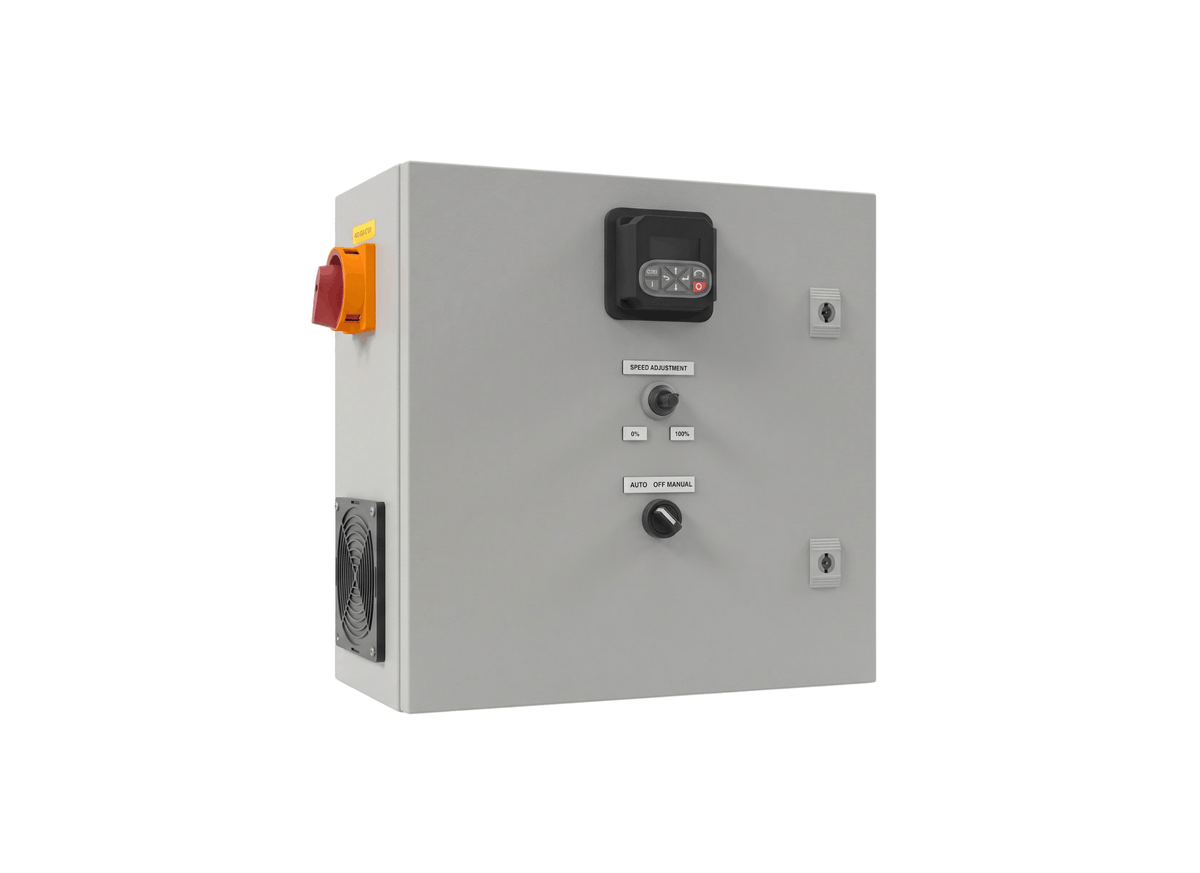

MATelec FPC-33905-G Mild Steel IP44 3PH 7.5kW Variable Speed Drive Controller

Delivering 7.5kW of variable speed control, the MATelec Australia FPC-33905-G operates from a three-phase 400Vac supply. The VSD module is housed in an IP44 powder-coated mild steel enclosure measuring 500x500x300mm. The controller is part of the FPC-33905 series of variable speed pump controllers.

Variable speed operation is managed through the integrated VSD with user interface displaying pump status, speed and current draw. An auto/off/manual selector and potentiometer allow manual speed adjustment. The VSD starts and stops based on digital input signals. Protection features include pump overload shutdown, under-voltage and over-voltage protection, phase failure protection and short-circuit protection.

The enclosure is manufactured from powder-coated mild steel with an IP44 rating. The cabinet includes a padlockable mains isolator switch and a removable gland plate. An optional IP54 enclosure with inner door is available. The 500x500x300mm cabinet accommodates the 7.5kW drive module and associated components.

Isolate the supply before any installation or maintenance work. Electrical connections must be performed by a qualified and registered electrician in accordance with applicable standards.

• Variable speed drive with 7.5kW power rating
• VSD user interface for pump status, speed and current draw
• Auto/off/manual selector with potentiometer speed adjustment
• VSD starts/stops based on digital inputs
• Pump overload shutdown and under/over-voltage protection
• Phase failure protection and short-circuit protection
• IP44 powder-coated mild steel enclosure
• Padlockable mains isolator switch and removable gland plate
• 500x500x300mm enclosure dimensions
