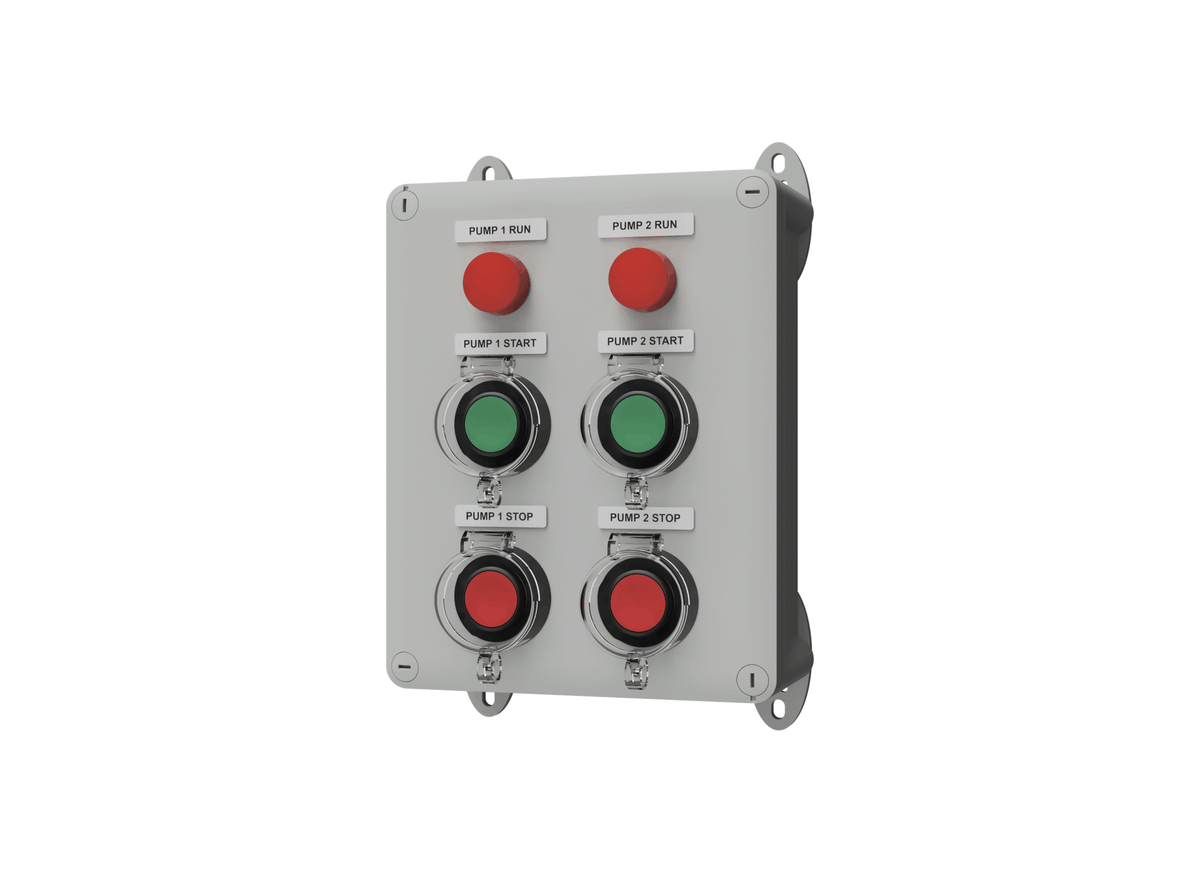

MATelec FPC-35120 Fire Pump Remote Start/Stop Controller for 12V Dual Pumps

Duty and standby fire pump systems operating on 12V signal networks require independent remote control and running-status verification for both machines from a single station. The MATelec FPC-35120 Fire Pump Remote Start/Stop Controller provides dual-channel manual start, stop, and run monitoring for two fire pumps.

The unit incorporates two separate sets of start and stop push buttons protected by padlockable clear covers that switch volt-free contact outputs to command Pump 1 and Pump 2 at their main panels. Dual 12V digital inputs receive operational feedback from both pump starters, illuminating separate front-panel indicator lamps for each pump.

Built into an IP54 rated polycarbonate housing measuring 240 x 190 x 95 mm, the station utilizes internal 12V low-voltage circuitry compatible with commercial fire alarm panels and auxiliary starter circuits.

The front interface is organized with color-coded push buttons and LED status indicators for both pumps. Internal DIN-rail screw terminals provide secure termination for field wiring, and integrated enclosure brackets allow rapid surface mounting.

Features

• Weatherproof IP54 rated polycarbonate enclosure measuring 240 x 190 x 95 mm
• Dual-channel control providing independent start and stop push buttons for two fire pumps
• Two separate front-panel indicator lights showing individual running status for Pump 1 and Pump 2
• Padlockable clear protective covers fitted over push buttons for operational security
• Volt-free contact outputs delivering dedicated start and stop signaling to main pump starters
• Two digital 12V inputs configured for receiving running status signals from both pump panels
• Integrated external surface mounting brackets and DIN-rail terminals for clean installation
