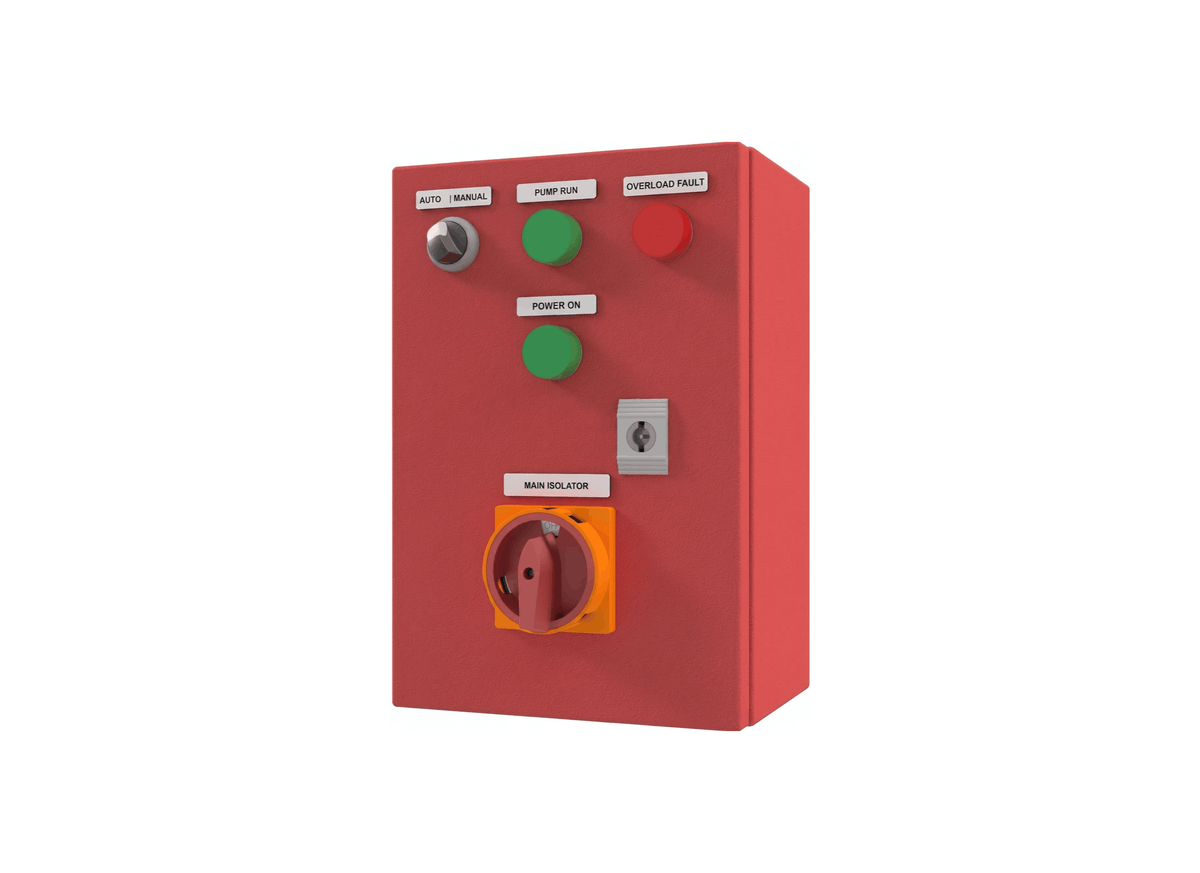

MATelec FPC-71013-(AA-E) AS 2941 Compliant 3PH 400Vac Fire Hose Reel Pump Controller (1.6-18A)

Large commercial and industrial buildings require three-phase booster pump control to meet water flow mandates under Australian Standard AS 2941-2013 Section 6. The MATelec FPC-71013-(AA-E) Fire Hose Reel Pump Controller delivers automated starting, status indication, and motor thermal protection for three-phase fire hose reel pumps.

The unit initiates automatic pump start upon a pressure drop detected by a 24Vdc digital pressure switch on the fire main. A front Auto/Manual selector switch enables testing and emergency manual running. An integrated thermal overload relay detects overcurrent conditions, shutting down the pump and illuminating the front overload fault lamp.

Operating on a 400Vac three-phase mains supply, the panel includes a three-phase contactor and adjustable thermal overload mechanism with current ratings from 0.7 to 18 Amps across model suffixes AA to E. The red powder-coated mild steel IP54 housing measures 300 x 200 x 150 mm and includes a padlockable door isolator.

High-visibility front LED lamps display power on, pump run, and overload fault states. Internal components are mounted on DIN rails with a removable bottom gland plate for motor and mains power cabling.

Features

• Certified compliant with Australian Standard AS 2941-2013: Section 6 for fire hose reel installations
• Red powder-coated mild steel enclosure measuring 300 x 200 x 150 mm carrying an IP54 rating
• Three-phase 400Vac electrical configuration with industrial contactor and thermal overload (0.7-18 Amps)
• Three front-mounted status indicator lights for power on, pump run, and overload fault
• Door-mounted Auto/Manual selector switch enabling straightforward operational verification
• Padlockable rotary mains isolator switch providing physical electrical isolation
• Digital 24Vdc pressure switch input loop, DIN-rail terminals, and removable bottom gland plate
