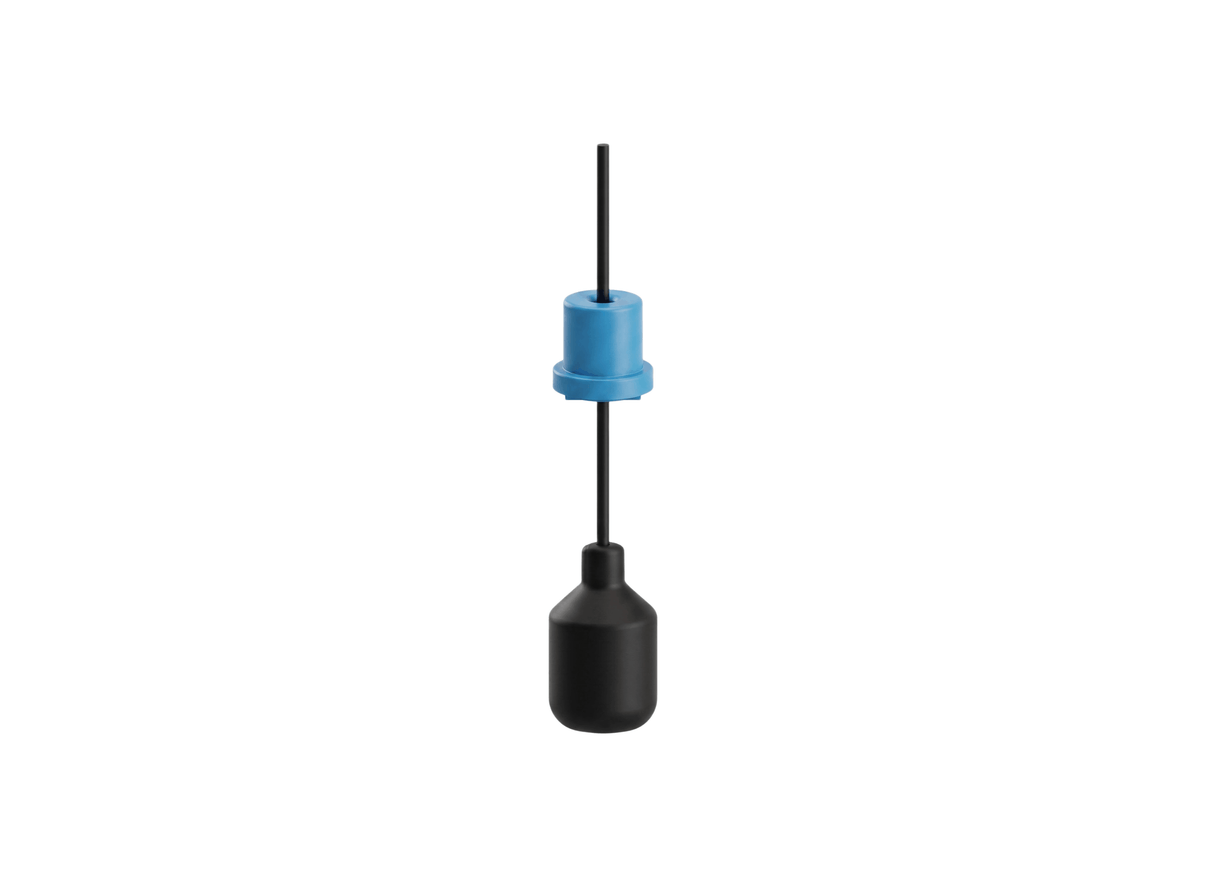

MATelec FSW-12409 9004 Oil and Chemical-Resistant 6m CPE N/O Float Switch

With a 6 m cable, the 9004 provides a straightforward float-operated switching arrangement for liquid level control. Its smooth polypropylene switch housing is intended to reduce the adhesion of foreign materials. The specified liquid temperature range is 5°C to 60°C, with IP68 protection at 9 m (30 ft) and corrosion resistance.

The switch uses mechanically activated snap-action contacts, and the range table identifies this particular model as normally open. Its maximum run current is 10 A at 240 Vac 50/60 Hz. Cable construction is specified as Chlorinated Polyethylene (CPE), ø8 mm / 2 x 0.75 mm². The supplied cable length is 6 m.

For level setting, the cable is secured at the required height. Moving the cable weight farther from the float increases the switching differential, while the sliding detent action helps obviate wave-induced oscillation and maintain consistent switching level accuracy.

Features

• Smooth polypropylene housing helps reduce adhesion of foreign materials.
• 6 m cable length with Chlorinated Polyethylene (CPE) cable material.
• 8 mm cable diameter with 2 x 0.75 mm² cable construction.
• Mechanically activated snap-action contacts; this model is listed as normally open in the range table.
• Sliding detent action helps maintain consistency in switching level accuracy by obviating wave-induced oscillation.
• IP68 protection is specified at 9 m (30 ft), with corrosion-resistant construction.
• Switching differential can be adjusted by changing the cable weight position relative to the float.
