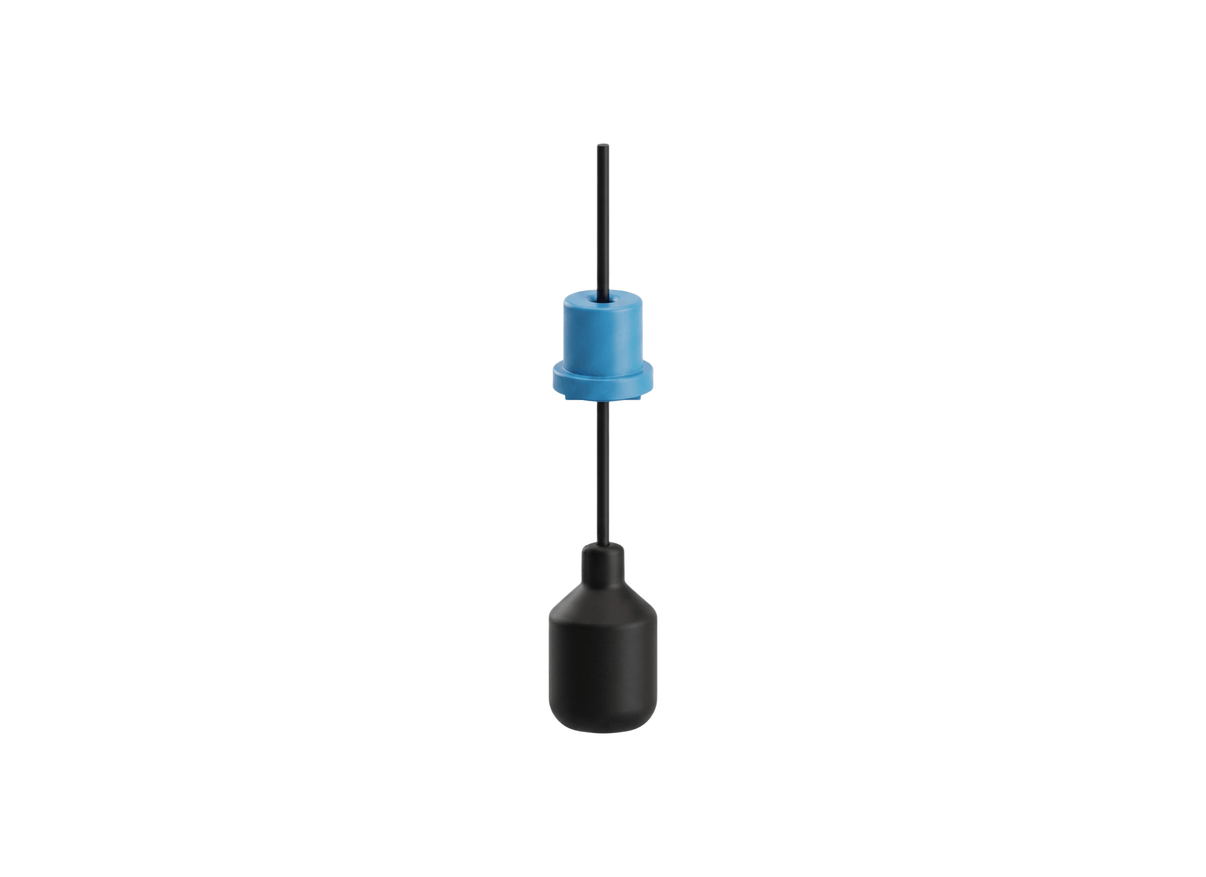

MATelec FSW-12411 9004 Oil and Chemical-Resistant 15m CPE N/O Float Switch

This 9004 model uses a 15 m CPE cable and a mechanically activated float mechanism to respond as the liquid level changes. The float housing is polypropylene with a smooth surface that reduces adhesion of foreign materials. The liquid temperature range is 5°C to 60°C, and protection is specified as IP68 @ 9 m (30 ft) with corrosion resistance.

The switch uses mechanically activated snap-action contacts, and the range table identifies this particular model as normally open. Its maximum run current is 10 A at 240 Vac 50/60 Hz. Cable construction is specified as Chlorinated Polyethylene (CPE), ø8 mm / 2 x 0.75 mm². The supplied cable length is 15 m.

For level setting, the cable is secured at the required height. Moving the cable weight farther from the float increases the switching differential, while the sliding detent action helps obviate wave-induced oscillation and maintain consistent switching level accuracy.

Features

• Smooth polypropylene housing helps reduce adhesion of foreign materials.
• 15 m cable length with Chlorinated Polyethylene (CPE) cable material.
• 8 mm cable diameter with 2 x 0.75 mm² cable construction.
• Mechanically activated snap-action contacts; this model is listed as normally open in the range table.
• Sliding detent action helps maintain consistency in switching level accuracy by obviating wave-induced oscillation.
• IP68 protection is specified at 9 m (30 ft), with corrosion-resistant construction.
• Switching differential can be adjusted by changing the cable weight position relative to the float.
