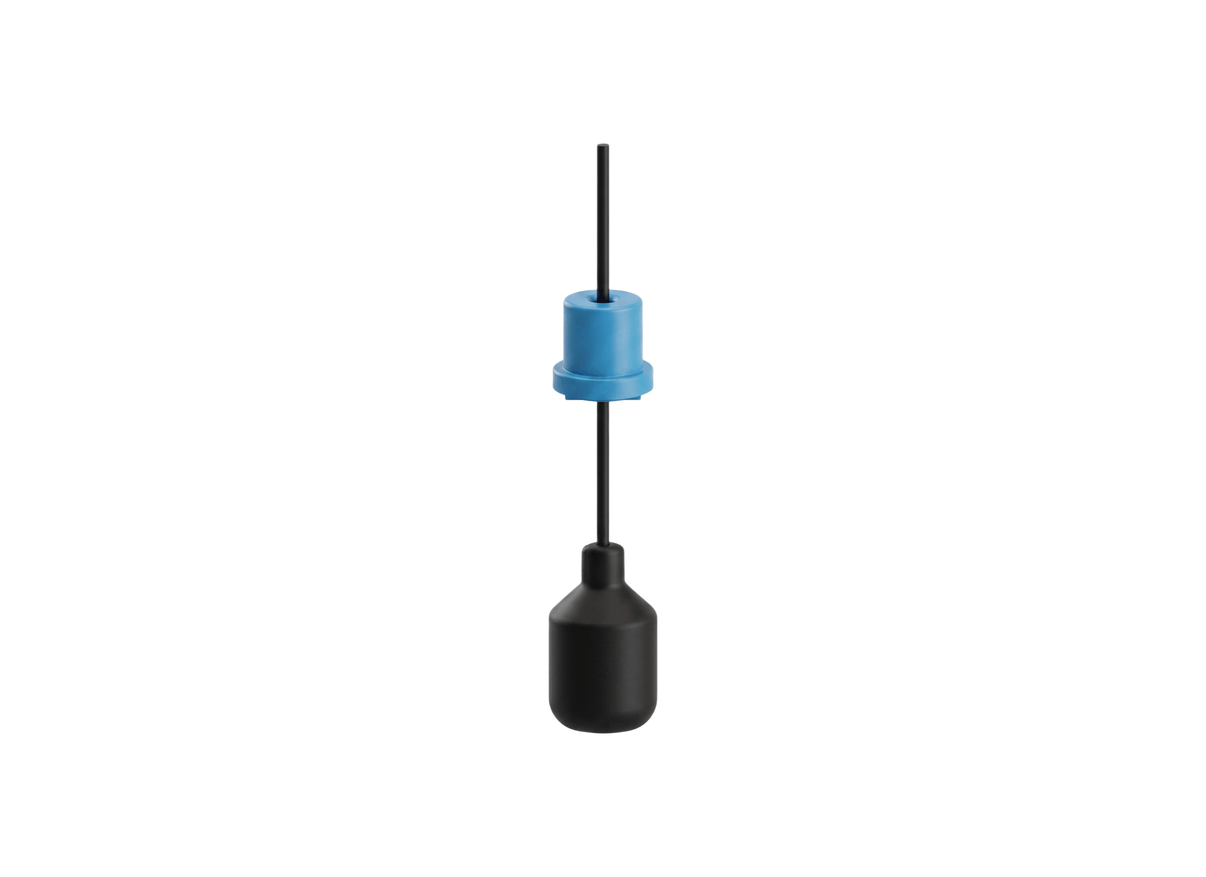

MATelec FSW-12412 9004 Oil and Chemical-Resistant 20m CPE N/O Float Switch

A 20 m cable is fitted to this 9004 float switch, allowing the cable to be secured at a chosen height to establish the required switching levels. Its smooth polypropylene switch housing is intended to reduce the adhesion of foreign materials. The specified liquid temperature range is 5°C to 60°C, with IP68 protection at 9 m (30 ft) and corrosion resistance.

Electrical switching uses a mechanically activated snap-action contact arrangement. For this SKU, the manufacturer's range table specifies normally open operation and a maximum run current of 10 A at 240 Vac 50/60 Hz. The supplied cable uses Chlorinated Polyethylene (CPE) and is specified at ø8 mm / 2 x 0.75 mm², with 20 m of cable on this model.

The manufacturer specifies a sliding detent action to obviate wave-induced oscillation and maintain consistency in switching level accuracy. During setup, the cable is secured at the desired height and the differential is adjusted by changing the cable weight position.

Features

• Mechanically activated snap-action contacts; this model is listed as normally open in the range table.
• IP68 protection is specified at 9 m (30 ft), with corrosion-resistant construction.
• Smooth polypropylene housing helps reduce adhesion of foreign materials.
• Switching differential can be adjusted by changing the cable weight position relative to the float.
• 20 m cable length with Chlorinated Polyethylene (CPE) cable material.
• Sliding detent action helps maintain consistency in switching level accuracy by obviating wave-induced oscillation.
• 8 mm cable diameter with 2 x 0.75 mm² cable construction.
