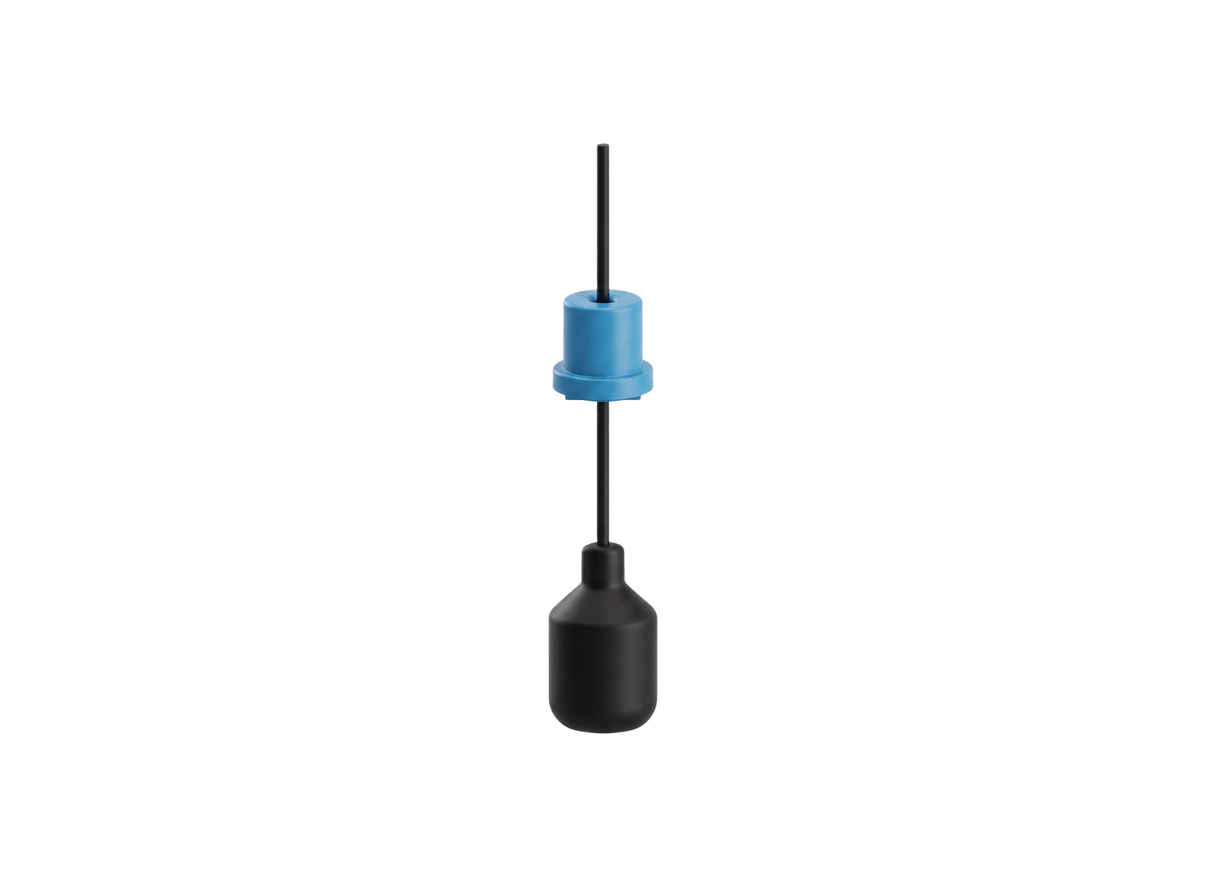

MATelec FSW-12413 9004 Oil and Chemical-Resistant 30m CPE N/O Float Switch

The extended 30 m cable on this 9004 version provides the specified suspension length while the float mechanism handles the level change. The housing is made from polypropylene and has a smooth finish that helps reduce the adhesion of foreign materials. It is specified for liquids from 5°C to 60°C and IP68 protection at 9 m (30 ft).

Switching is mechanically activated with snap-action contacts. This model is listed in the range table as normally open, with a maximum run current of 10 A at 240 Vac 50/60 Hz. The cable is Chlorinated Polyethylene (CPE), with a diameter of 8 mm and 2 x 0.75 mm² conductors. The cable length for this model is 30 m.

The sliding detent action helps prevent wave-induced oscillation and maintains consistency in switching level accuracy. The cable should be secured at the appropriate height, and the switching differential can be changed by moving the cable weight relative to the float; a greater distance produces a greater differential.

Features

• 30 m cable length with Chlorinated Polyethylene (CPE) cable material.
• Smooth polypropylene housing helps reduce adhesion of foreign materials.
• Mechanically activated snap-action contacts; this model is listed as normally open in the range table.
• IP68 protection is specified at 9 m (30 ft), with corrosion-resistant construction.
• Sliding detent action helps maintain consistency in switching level accuracy by obviating wave-induced oscillation.
• Switching differential can be adjusted by changing the cable weight position relative to the float.
• 8 mm cable diameter with 2 x 0.75 mm² cable construction.
