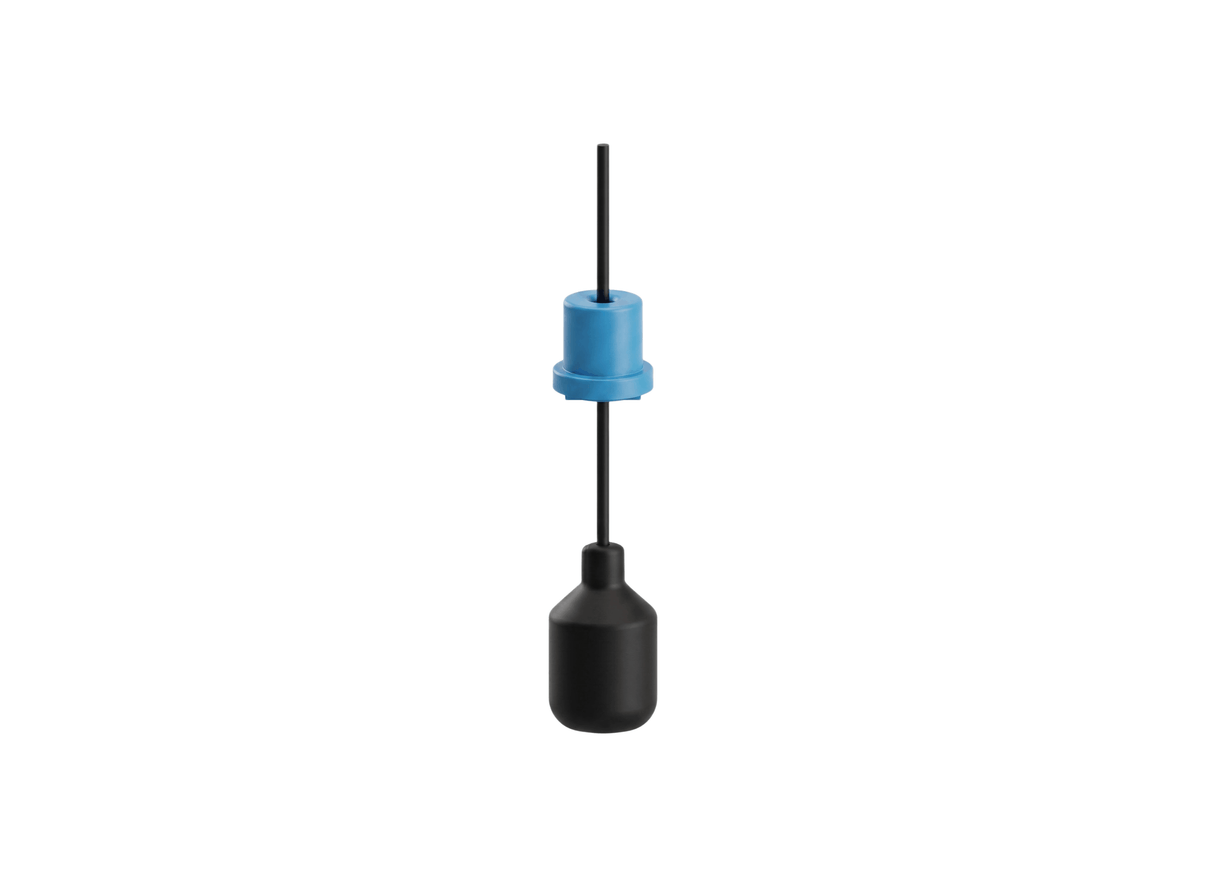

MATelec FSW-12414 9004 Oil and Chemical-Resistant 40m CPE N/O Float Switch

This 9004 variant is identified by its 40 m cable length and uses the same polypropylene float construction and snap-action switching arrangement throughout the range. A smooth polypropylene housing forms the float body, with the manufacturer specifying 5°C to 60°C liquid temperature and IP68 @ 9 m (30 ft) corrosion-resistant protection.

The switch uses mechanically activated snap-action contacts, and the range table identifies this particular model as normally open. Its maximum run current is 10 A at 240 Vac 50/60 Hz. Cable construction is specified as Chlorinated Polyethylene (CPE), ø8 mm / 2 x 0.75 mm². The supplied cable length is 40 m.

For level setting, the cable is secured at the required height. Moving the cable weight farther from the float increases the switching differential, while the sliding detent action helps obviate wave-induced oscillation and maintain consistent switching level accuracy.

Features

• Smooth polypropylene housing helps reduce adhesion of foreign materials.
• 40 m cable length with Chlorinated Polyethylene (CPE) cable material.
• 8 mm cable diameter with 2 x 0.75 mm² cable construction.
• Mechanically activated snap-action contacts; this model is listed as normally open in the range table.
• Sliding detent action helps maintain consistency in switching level accuracy by obviating wave-induced oscillation.
• IP68 protection is specified at 9 m (30 ft), with corrosion-resistant construction.
• Switching differential can be adjusted by changing the cable weight position relative to the float.
