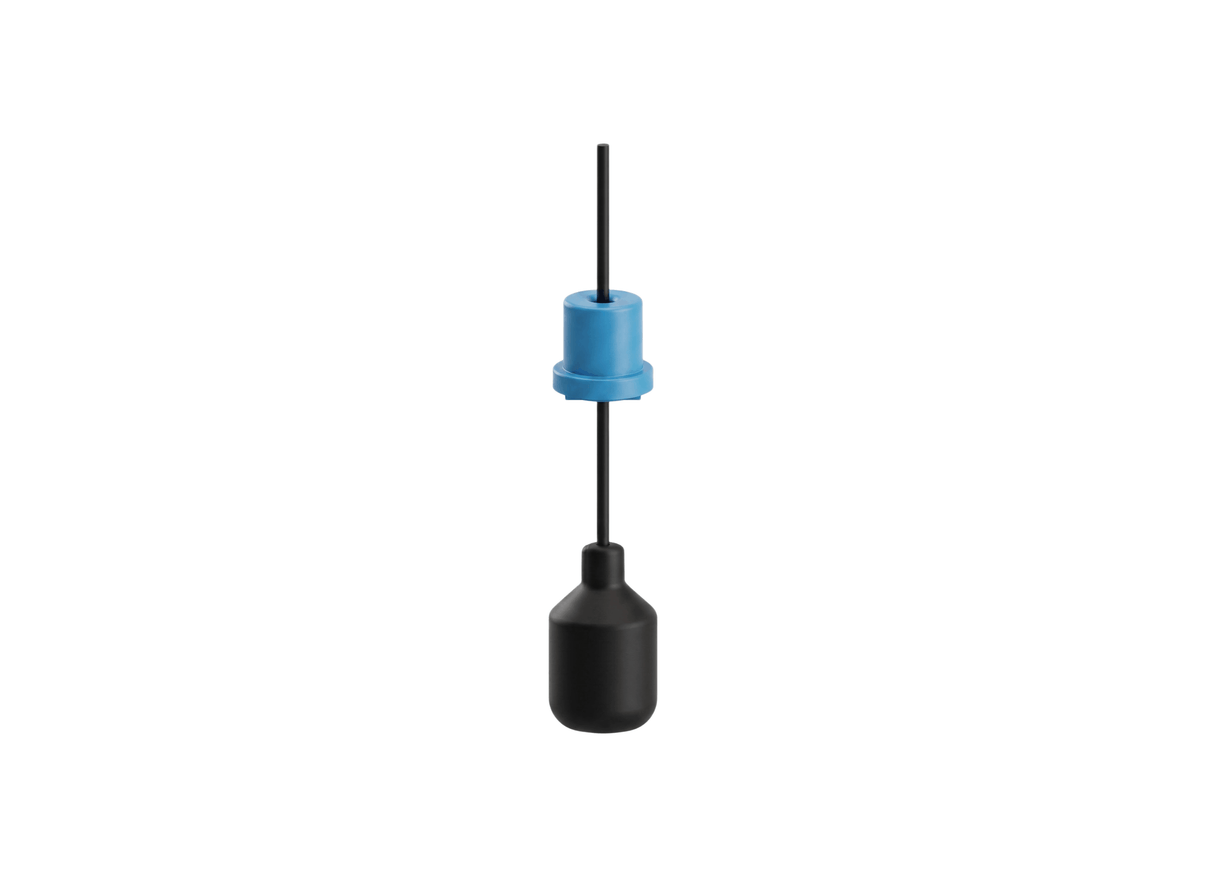

MATelec FSW-12415 9004 Oil and Chemical-Resistant 50m CPE N/O Float Switch

For the longest cable option in this group, the 9004 is supplied with a 50 m CPE cable while retaining its stated 10 A switching rating. The float housing is polypropylene with a smooth surface that reduces adhesion of foreign materials. The liquid temperature range is 5°C to 60°C, and protection is specified as IP68 @ 9 m (30 ft) with corrosion resistance.

Electrical switching uses a mechanically activated snap-action contact arrangement. For this SKU, the manufacturer's range table specifies normally open operation and a maximum run current of 10 A at 240 Vac 50/60 Hz. The supplied cable uses Chlorinated Polyethylene (CPE) and is specified at ø8 mm / 2 x 0.75 mm², with 50 m of cable on this model.

The manufacturer specifies a sliding detent action to obviate wave-induced oscillation and maintain consistency in switching level accuracy. During setup, the cable is secured at the desired height and the differential is adjusted by changing the cable weight position.

Features

• Mechanically activated snap-action contacts; this model is listed as normally open in the range table.
• IP68 protection is specified at 9 m (30 ft), with corrosion-resistant construction.
• Smooth polypropylene housing helps reduce adhesion of foreign materials.
• Switching differential can be adjusted by changing the cable weight position relative to the float.
• 50 m cable length with Chlorinated Polyethylene (CPE) cable material.
• Sliding detent action helps maintain consistency in switching level accuracy by obviating wave-induced oscillation.
• 8 mm cable diameter with 2 x 0.75 mm² cable construction.
