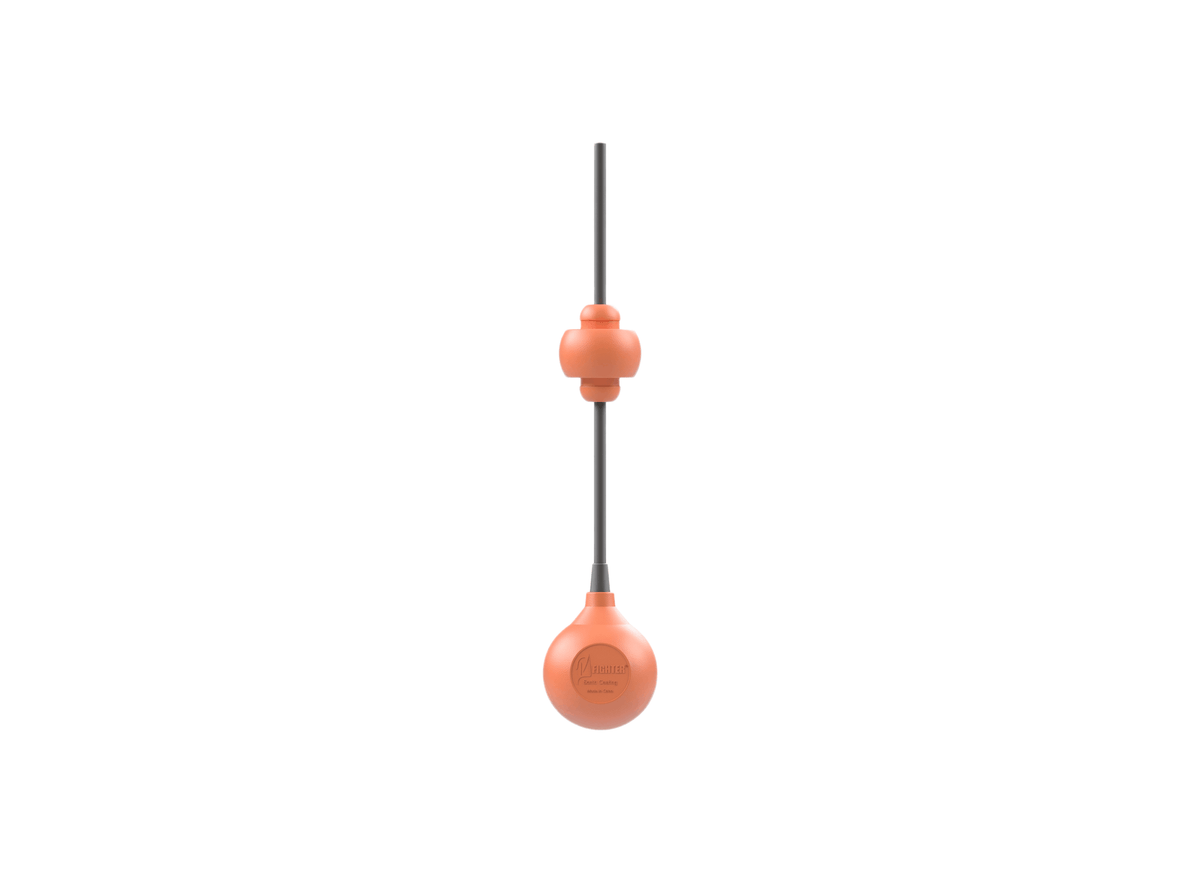

MATelec FSW-12529 9006 High Precision Repeatability 6m Neoprene NO/NC Float Switch

The 6 m cable version provides the specified suspension length for this 9006 float switch, with switching controlled by the movement of the float. Its ABS housing is smooth and robust, helping reduce adhesion of foreign materials. The switch is specified for liquids from 5°C to 60°C and densities from 0.65 to 1.5 g/cm³.

Switching is provided by a microswitch with NO and NC contacts. The specified switching angle is 25° from horizontal, while the electrical rating is 6 A at 240 Vac 50/60 Hz. Contact life is 10,000 switches and switching speed is 600/min.

The switch is rated IP68 @ 20 m (65 ft) and 0.35 MPa working pressure. Its cable is specified as ø7 mm / 3 x 0.75 mm² Neoprene rubber, with a total length of 6 m.

Level adjustment is made by securing the cable at the desired height and changing the position of the 220 g cable weight. A greater distance between the weight and float produces a greater switching differential, while the sliding detent action helps prevent wave-induced oscillation.

Features

• Smooth, robust ABS housing helps reduce adhesion of foreign materials.
• IP68 protection is specified at 20 m (65 ft), with a 0.35 MPa working pressure rating.
• 6 m Neoprene rubber cable, specified at ø7 mm / 3 x 0.75 mm².
• ABS housing has manufacturer-specified good resistance to acid, alkaline fluids and petrol.
• Microswitch provides both NO and NC contacts with a 25° switching angle from horizontal.
• The 220 g cable weight can be repositioned to adjust the switching differential.
• Sliding detent action helps obviate wave-induced oscillation and maintain switching level accuracy.
• Maximum run current is 6 A at 240 Vac 50/60 Hz, with 10,000-switch contact life.
