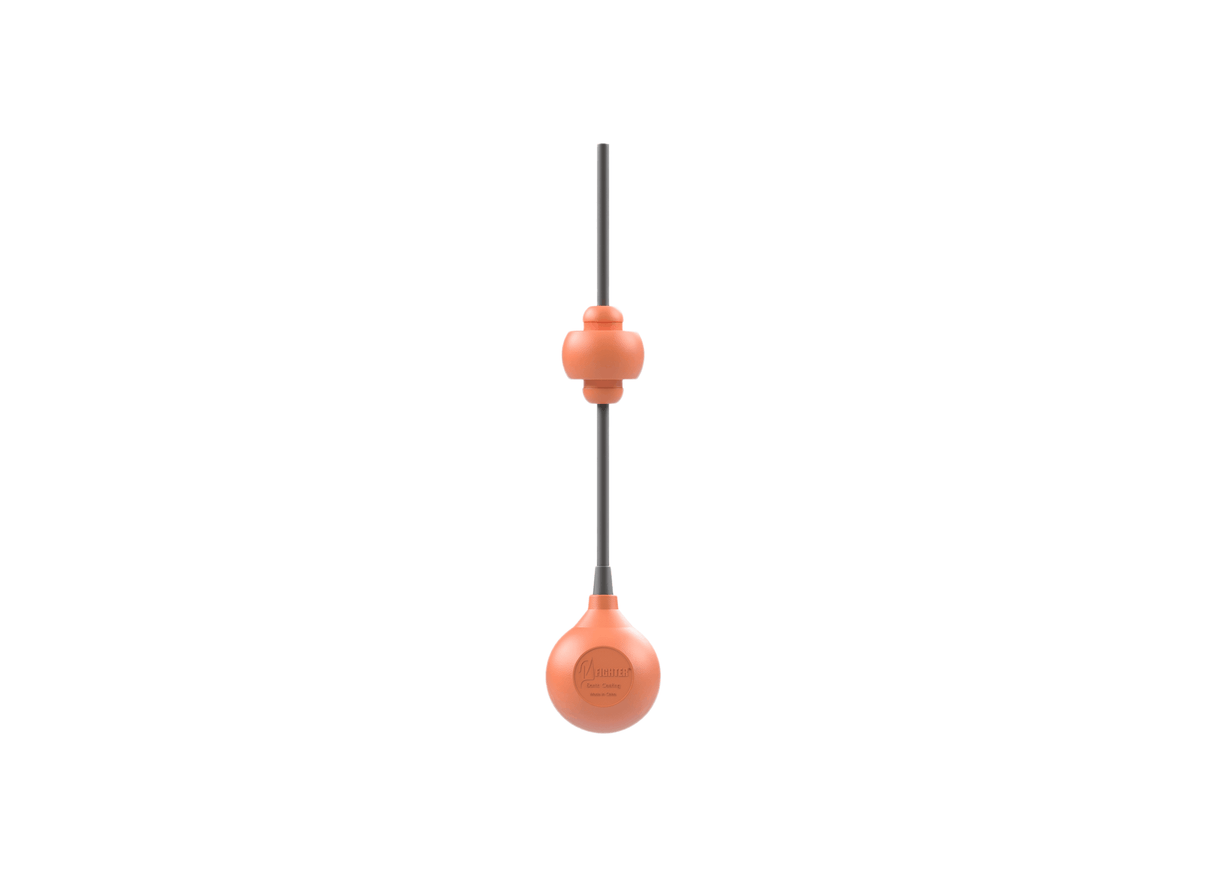

MATelec FSW-12533 9006 High Precision Repeatability 30m Neoprene NO/NC Float Switch

The 30 m cable allows the float to be positioned at the required level, while the 9006 mechanism responds to the float's movement through its specified switching angle. The housing material is ABS (Acrylonitrile butadiene styrene), with the manufacturer specifying 5°C to 60°C liquid temperature and 0.65 to 1.5 g/cm³ liquid density.

The electrical specification includes NO and NC microswitch contacts, a 25° switching angle from horizontal, and a maximum run current of 6 A at 240 Vac 50/60 Hz. The contact life is rated at 10,000 switches, with switching speed specified at 600/min.

IP68 protection is specified at 20 m (65 ft), together with a 0.35 MPa working pressure rating. The 30 m cable is Neoprene rubber, specified at ø7 mm / 3 x 0.75 mm².

The manufacturer specifies a 220 g cable weight and an adjustable switching differential. Moving the weight farther from the float increases that differential, while the sliding detent action helps maintain switching level accuracy in the presence of wave-induced movement.

Features

• Microswitch provides both NO and NC contacts with a 25° switching angle from horizontal.
• 30 m Neoprene rubber cable, specified at ø7 mm / 3 x 0.75 mm².
• Maximum run current is 6 A at 240 Vac 50/60 Hz, with 10,000-switch contact life.
• Smooth, robust ABS housing helps reduce adhesion of foreign materials.
• Sliding detent action helps obviate wave-induced oscillation and maintain switching level accuracy.
• ABS housing has manufacturer-specified good resistance to acid, alkaline fluids and petrol.
• IP68 protection is specified at 20 m (65 ft), with a 0.35 MPa working pressure rating.
• The 220 g cable weight can be repositioned to adjust the switching differential.
