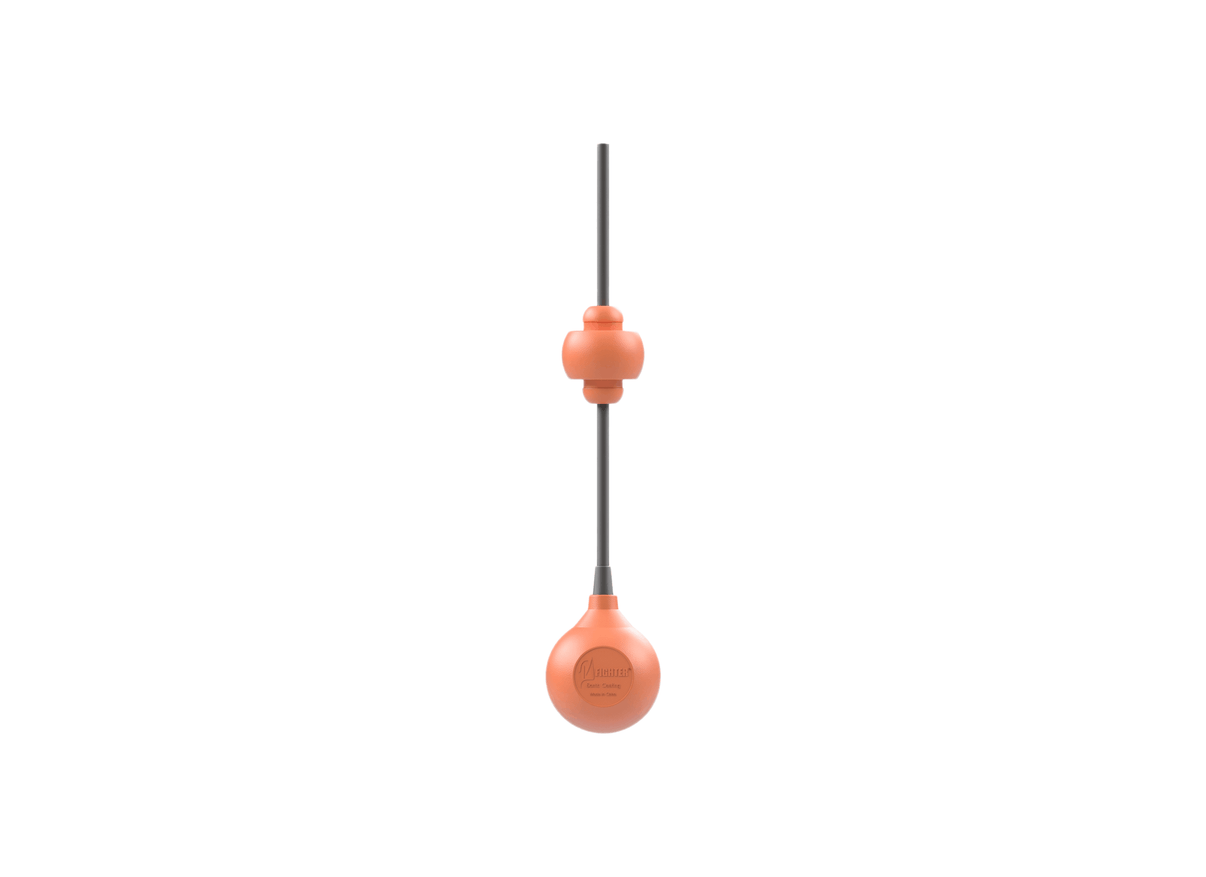

MATelec FSW-12534 9006 High Precision Repeatability 40m Neoprene NO/NC Float Switch

With its 40 m Neoprene rubber cable, this 9006 model retains the same electrical and mechanical characteristics specified across the series. The float has a smooth, robust ABS switch housing that reduces adhesion of foreign materials. The specified liquid temperature range is 5°C to 60°C, with a liquid density range of 0.65 to 1.5 g/cm³.

The microswitch has both NO and NC contacts and operates at a switching angle of 25° from horizontal. Maximum run current is 6 A at 240 Vac 50/60 Hz, with a contact life of 10,000 switches and a switching speed of 600/min.

Protection is IP68 @ 20 m (65 ft), with a working pressure of 0.35 MPa. The cable is 7 mm Neoprene rubber with 3 x 0.75 mm² construction, and this version is supplied with 40 m of cable.

The sliding detent action obviates wave-induced oscillation and helps maintain consistency in switching level accuracy. For setup, the cable is secured at the required height and the 220 g cable weight can be moved relative to the float to change the switching differential; moving it farther away increases the differential.

Features

• 40 m Neoprene rubber cable, specified at ø7 mm / 3 x 0.75 mm².
• Smooth, robust ABS housing helps reduce adhesion of foreign materials.
• Microswitch provides both NO and NC contacts with a 25° switching angle from horizontal.
• Maximum run current is 6 A at 240 Vac 50/60 Hz, with 10,000-switch contact life.
• IP68 protection is specified at 20 m (65 ft), with a 0.35 MPa working pressure rating.
• Sliding detent action helps obviate wave-induced oscillation and maintain switching level accuracy.
• The 220 g cable weight can be repositioned to adjust the switching differential.
• ABS housing has manufacturer-specified good resistance to acid, alkaline fluids and petrol.
