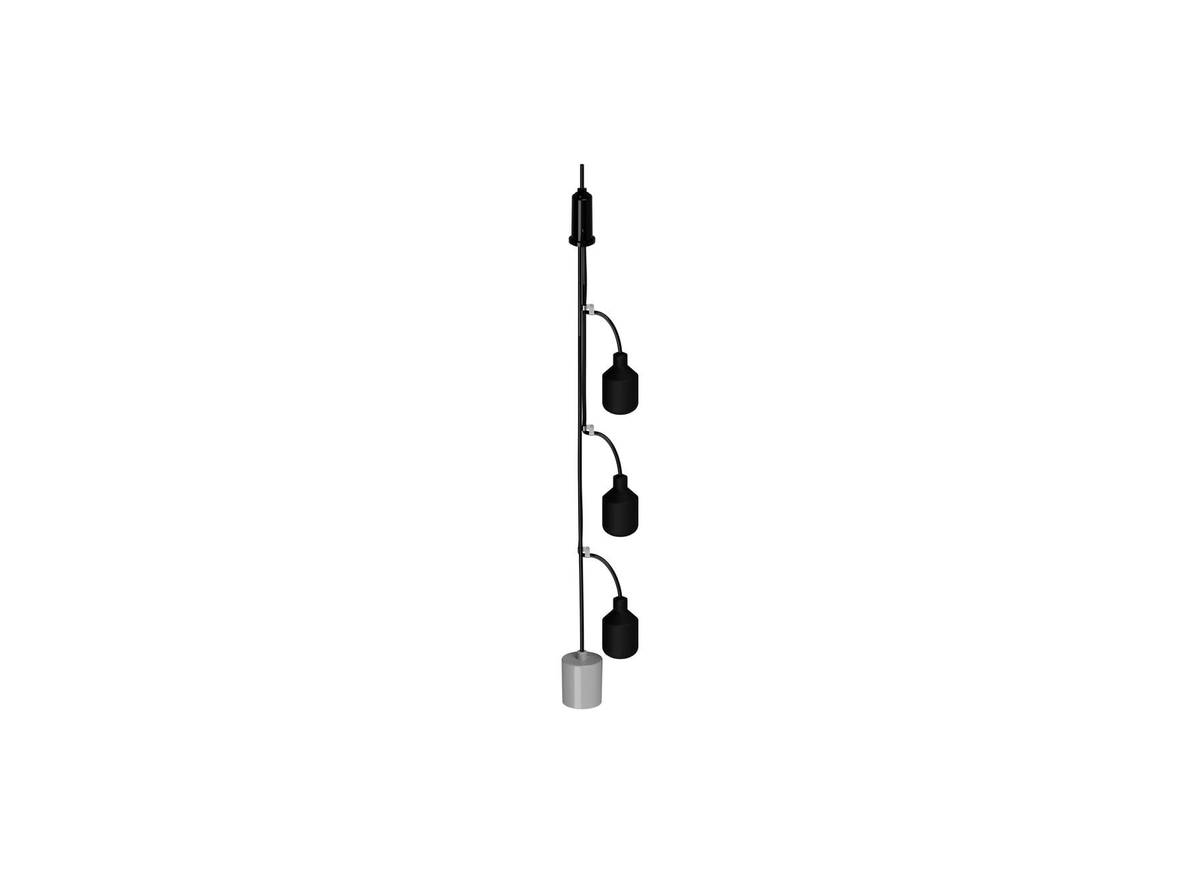

MATelec FSW-12547 Polypropylene IP68 20m 3 Float Multi Level Tree

Traditional float switch installations in wet wells and sumps require individual mounting of each float, separate conduit runs, and careful wiring to avoid tangles and signal crosstalk, and the FSW-12547 multi level float tree consolidates three floats into a single pre-configured assembly to reduce installation complexity. The tree uses mechanically activated snap action N/O contacts that close on rise, with each float positioned at a defined level along the cable to establish the low, stop, start, and high level setpoints required by pump controllers.

Each float is constructed from polypropylene housing material with a horizontal pivot point that provides switching accuracy and consistency regardless of flow-induced movement in the wet well. The floats are weighted to resist flow induced travel, reducing the tangling, conduit routing, and wire identification problems associated with individual float installations. A resin filled and potted connection at the cable entry point provides IP68 rated submersibility for continuous underwater service.

Electrical ratings include a maximum voltage of 250Vac at 50/60 Hz and a maximum run current of 6 Amps resistive. The contact type is mechanically activated snap action N/O, configured to close on liquid level rise. Cable construction uses neoprene rubber for the float leads and polyvinyl chloride for the multicore section, with the multicore measuring 8 mm in diameter and containing four 0.75 mm² conductors.

Features

• Three-float pre-configured assembly with snap action N/O contacts closing on rise
• IP68 rated resin filled and potted connection for continuous submersible service
• Horizontal pivot point and weighted floats resist flow induced tangling
• Polypropylene float housing with neoprene rubber and PVC cable construction
• Maximum voltage 250Vac with 6 Amps resistive run current rating
• Compatible with MATelec HydroSTART and HydroWHIZ controller input terminals
• 20 m cable length for deep sump and remote controller installations
