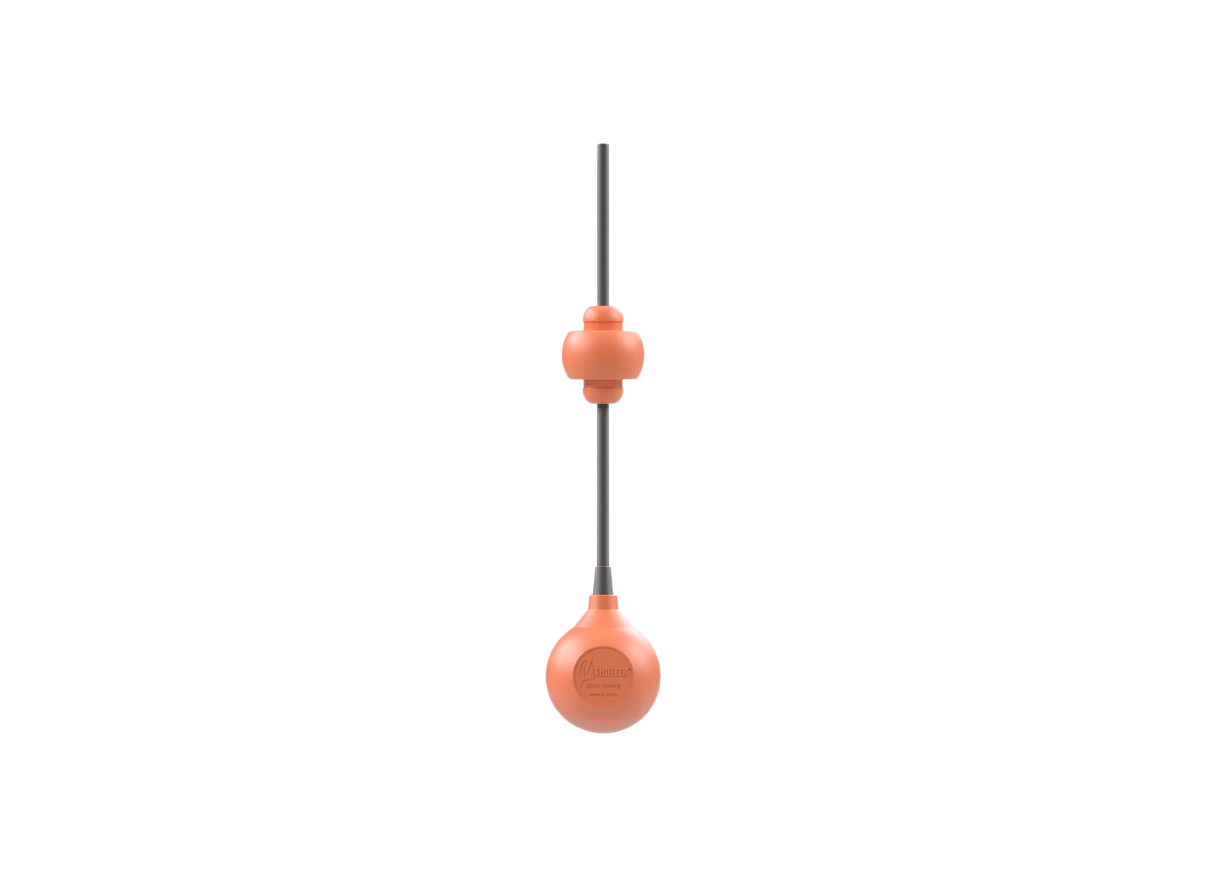

MATelec FSW-12551 9006 High Precision Repeatability 50m Neoprene NO/NC Float Switch

This 9006 version provides the 50 m cable option and uses the same robust ABS housing, microswitch contacts and adjustable cable-weight arrangement as the range. Its ABS housing is smooth and robust, helping reduce adhesion of foreign materials. The switch is specified for liquids from 5°C to 60°C and densities from 0.65 to 1.5 g/cm³.

Switching is provided by a microswitch with NO and NC contacts. The specified switching angle is 25° from horizontal, while the electrical rating is 6 A at 240 Vac 50/60 Hz. Contact life is 10,000 switches and switching speed is 600/min.

The switch is rated IP68 @ 20 m (65 ft) and 0.35 MPa working pressure. Its cable is specified as ø7 mm / 3 x 0.75 mm² Neoprene rubber, with a total length of 50 m.

Level adjustment is made by securing the cable at the desired height and changing the position of the 220 g cable weight. A greater distance between the weight and float produces a greater switching differential, while the sliding detent action helps prevent wave-induced oscillation.

Features

• Smooth, robust ABS housing helps reduce adhesion of foreign materials.
• IP68 protection is specified at 20 m (65 ft), with a 0.35 MPa working pressure rating.
• 50 m Neoprene rubber cable, specified at ø7 mm / 3 x 0.75 mm².
• ABS housing has manufacturer-specified good resistance to acid, alkaline fluids and petrol.
• Microswitch provides both NO and NC contacts with a 25° switching angle from horizontal.
• The 220 g cable weight can be repositioned to adjust the switching differential.
• Sliding detent action helps obviate wave-induced oscillation and maintain switching level accuracy.
• Maximum run current is 6 A at 240 Vac 50/60 Hz, with 10,000-switch contact life.
