MATelec HydroSTART FPC-82143-CON/SMS Mild Steel IP56 3PH 0.1-6A/5-16A Single Pump Controller with SMS

Three-phase pumping installations requiring conductivity probe inputs combined with SMS messaging can be configured with dual option modules. This 400Vac three-phase single-pump panel incorporates both a Conductivity Module (up to 5 probe inputs plus common) and an ME-Link module for SMS alarm/status messaging.

The Conductivity Module communicates via ME-NET and features a programmable 0 to 10 second delay between probe signal received and signal sent to the control module, assisting in alleviating false alarms. The integrated ME-Link module provides SMS alarm and status messaging functionality. The controller operates a three-phase pump contactor with current transformers monitoring two phases across selectable 0.1–6A and 5–16A ranges, backed by low level lockout, undercurrent, and zero current protections.

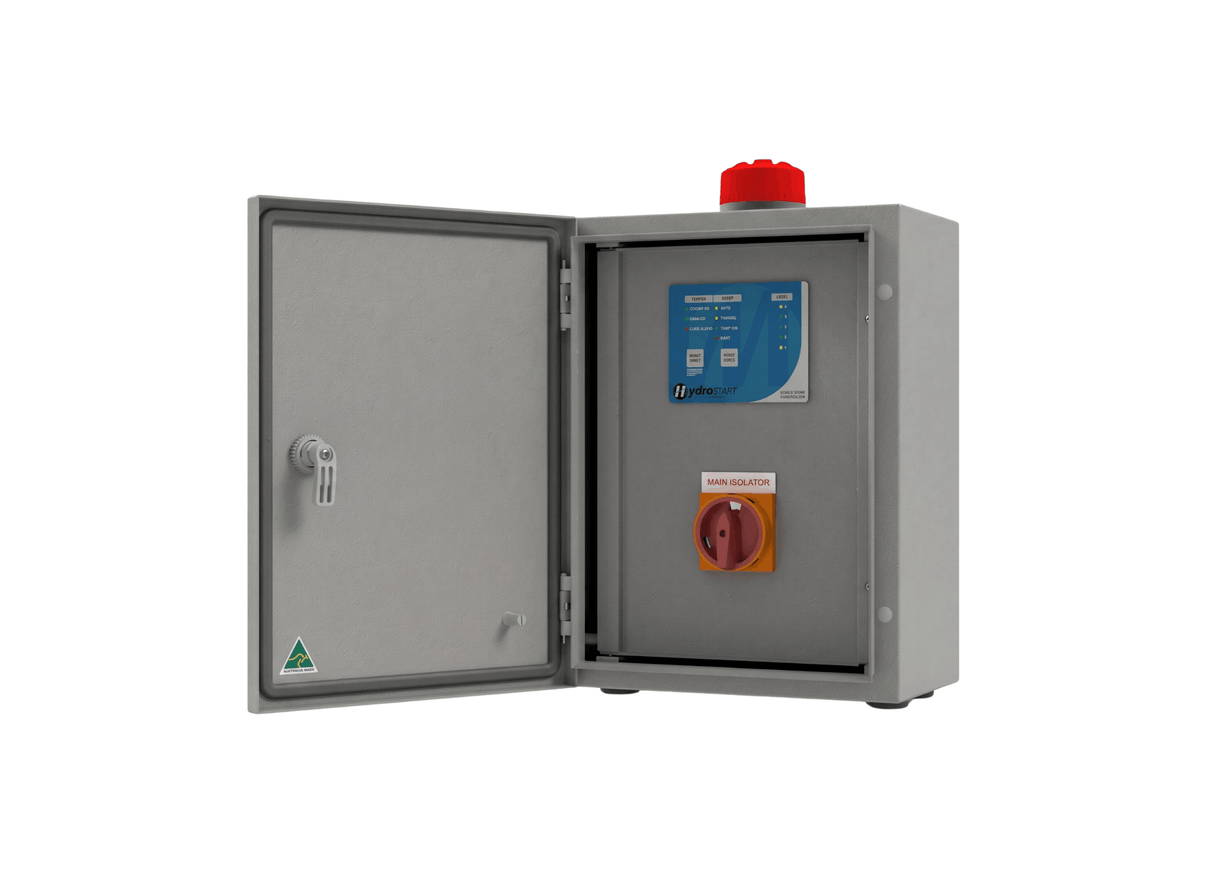

The enclosure door features a capacitive touch keypad with indicator lights for power, system enable, probe level states, pump mode, pump run, and fault codes. An integrated visual strobe and audible buzzer with smart chirp silencing provide local alarm alerts. A padlockable mains power isolator and dedicated circuit breaker ensure electrical isolation.

Housed in a 400 x 400 x 200 mm powder-coated mild steel enclosure with an inner door, the panel is IP56 rated for outdoor mounting. Hardware includes a removable gland plate, a volt-free BMS common fault relay output, and Modbus RTU Serial RS485 connections for SCADA.

Features

• Powder-coated mild steel enclosure measuring 400 mm high by 400 mm wide by 200 mm deep with removable gland plate
• IP56 rated with inner door, for outdoor mounting
• Integrated ME-Link module for SMS alarm/status messaging
• Integrated Conductivity Module with inputs for up to 5 conductivity probes plus common
• Programmable 0 to 10 second probe delay assisting in alleviating false alarms
• Three-phase 400Vac supply (4 core and earth with neutral) operating a single pump via contactor
• Two current transformers monitoring two phases with selectable 0.1–6A and 5–16A overload ranges
• HydroSTART capacitive touch keypad with multi-state LED indicators and touch buttons
• Padlockable mains power isolator switch, volt-free BMS output, and Modbus RS-485 port
