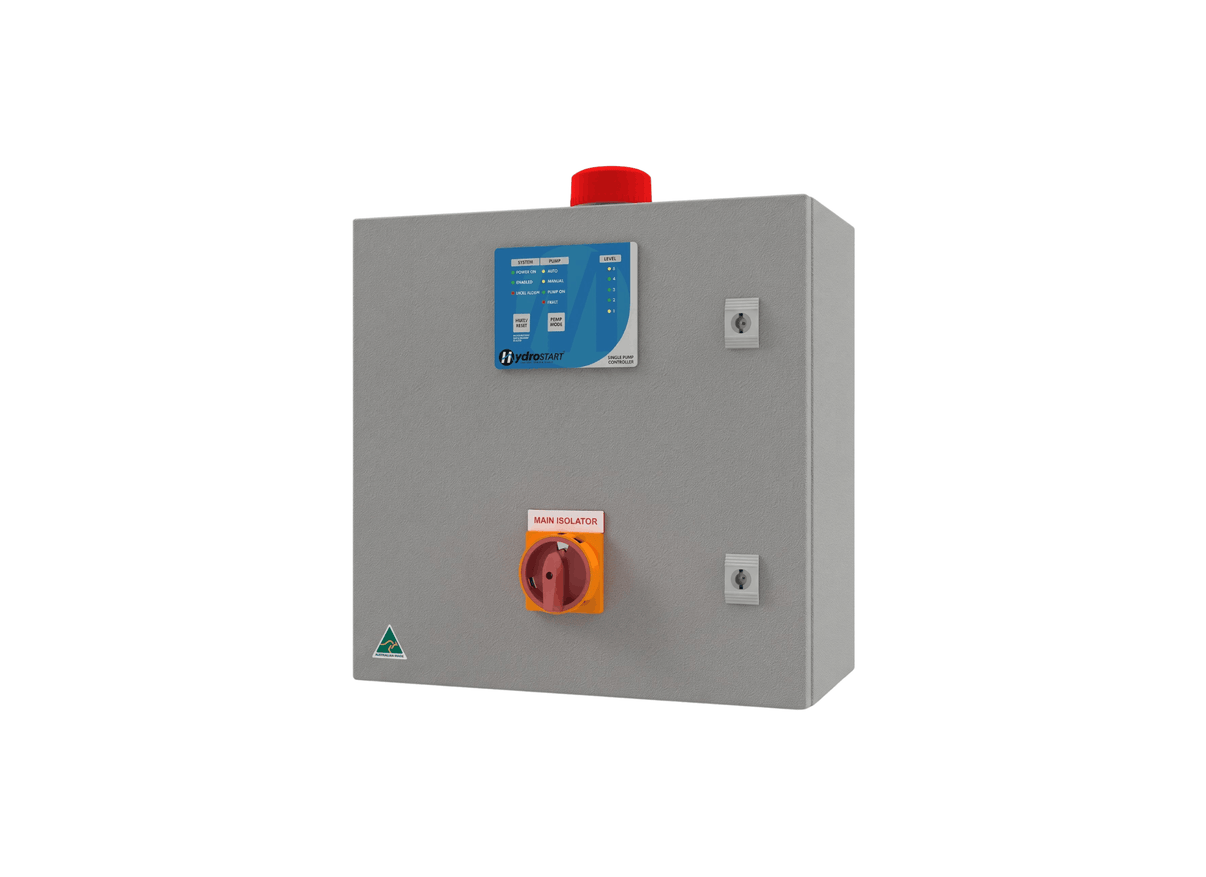

MATelec HydroSTART FPC-81241-HWC/QP Mild Steel 1PH 2 Pump Quick Plug Hot Water Circulation Controller

Quick plug connections make installation faster and easier on the FPC-81241-HWC/QP. This HydroSTART hot water circulation controller from MATelec manages two pumps on single phase 230Vac supply with a 0.1-10A operating current range.

The quick plug configuration simplifies field wiring, letting you connect the float and valve circuits without hard wiring. The HydroSTART platform provides the low voltage control and input circuitry needed for reliable hot water circulation control.

The HydroSTART platform's construction features include a powder coated mild steel enclosure with inner door and removable gland plate, with padlockable mains isolator and circuit breaker protected low voltage control. This variant is configured with quick plug connections for simpler installation on single phase 230Vac supply.

Hardware specifications including enclosure rating and dimensions should be confirmed with MATelec at the time of ordering as detailed individual datasheets may not cover every suffix variant. All installation work should be performed by a qualified electrician with the supply isolated.

• HydroSTART pump controller platform.
• Single phase 230Vac supply.
• Two pump configuration.
• 0.1-10A operating current range.
• Quick plug connections for simplified wiring.
• Hot water circulation control.
• Powder coated mild steel enclosure with inner door and removable gland plate.
• Padlockable mains isolator and circuit breaker protected low voltage control.
• Qualified electrical installation required with isolated supply.
• Confirm enclosure rating and dimensions with MATelec.
