MATelec HydroSTART FPC-82141-RMC/PL Mild Steel 1PH Pulse Latching Rain Mains Changeover

For systems that need a pulse latching valve, the FPC-82141-RMC/PL delivers. This HydroSTART rain/mains changeover controller from MATelec runs a 12Vdc pulse latching valve output on single phase 230Vac supply with one pump.

A pulse latching valve holds its position without continuous power, making it energy efficient for rain/mains changeover applications. The controller sends a pulse to close the valve when rain water is available and another pulse to open it when the tank runs dry.

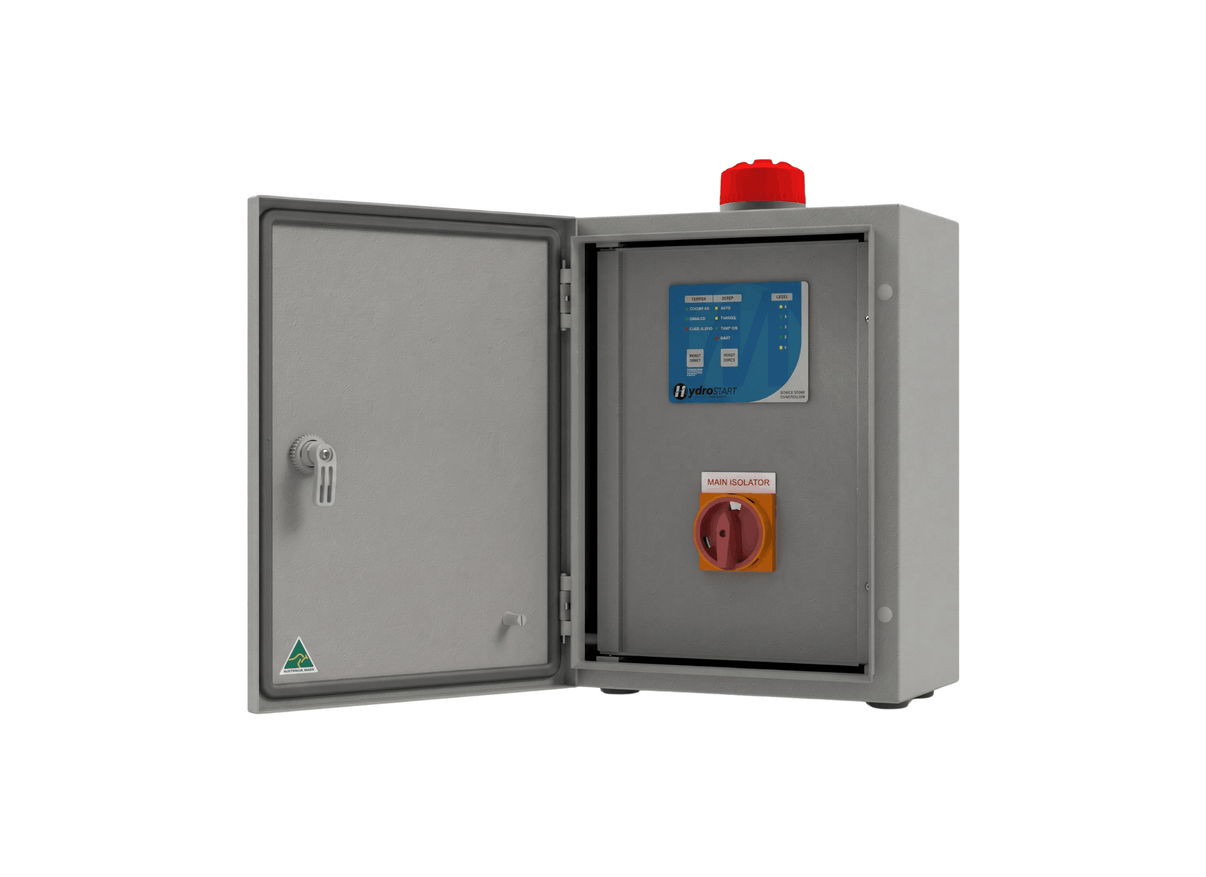

The controller is rated at 0.1-16A for the pump circuit. The HydroSTART platform's construction features include a powder coated mild steel enclosure with inner door and removable gland plate, with padlockable mains isolator and circuit breaker protected low voltage control. This variant is configured for rain/mains changeover with a 12Vdc pulse latching valve output on single phase 230Vac supply.

Hardware specifications including enclosure rating and dimensions should be confirmed with MATelec at the time of ordering as detailed individual datasheets may not cover every suffix variant. All installation work should be performed by a qualified electrician with the supply isolated.

• HydroSTART pump controller platform.
• Single phase 230Vac supply.
• Single pump configuration.
• 0.1-16A operating current range.
• 12Vdc pulse latching valve output.
• Powder coated mild steel enclosure with inner door and removable gland plate.
• Padlockable mains isolator and circuit breaker protected low voltage control.
• Qualified electrical installation required with isolated supply.
• Confirm enclosure rating and dimensions with MATelec.
