MATelec HydroSTART FPC-82143-RMC/AC Mild Steel 3PH 24Vac Rain Mains Changeover

Three phase 400Vac supply meets rain/mains changeover in the FPC-82143-RMC/AC. This HydroSTART controller from MATelec manages one pump on 400Vac with a 24Vac valve output for the mains water changeover.

When rain water is available, the controller pulse closes the mains valve and keeps the pump running on tank water. When the tank runs dry or the power fails, it opens the valve and the system switches to mains water. The 24Vac valve output drives the changeover valve directly.

The controller is rated at 0.1-16A for the pump circuit. The HydroSTART platform's construction features include a powder coated mild steel enclosure with inner door and removable gland plate, with padlockable mains isolator and circuit breaker protected low voltage control. This variant is configured for rain/mains changeover with a 24Vac valve output on three phase 400Vac supply.

Hardware specifications including enclosure rating and dimensions should be confirmed with MATelec at the time of ordering as detailed individual datasheets may not cover every suffix variant. All installation work should be performed by a qualified electrician with the supply isolated.

• HydroSTART pump controller platform.
• Three phase 400Vac supply.
• Single pump configuration.
• 0.1-16A operating current range.
• 24Vac valve output for rain/mains changeover.

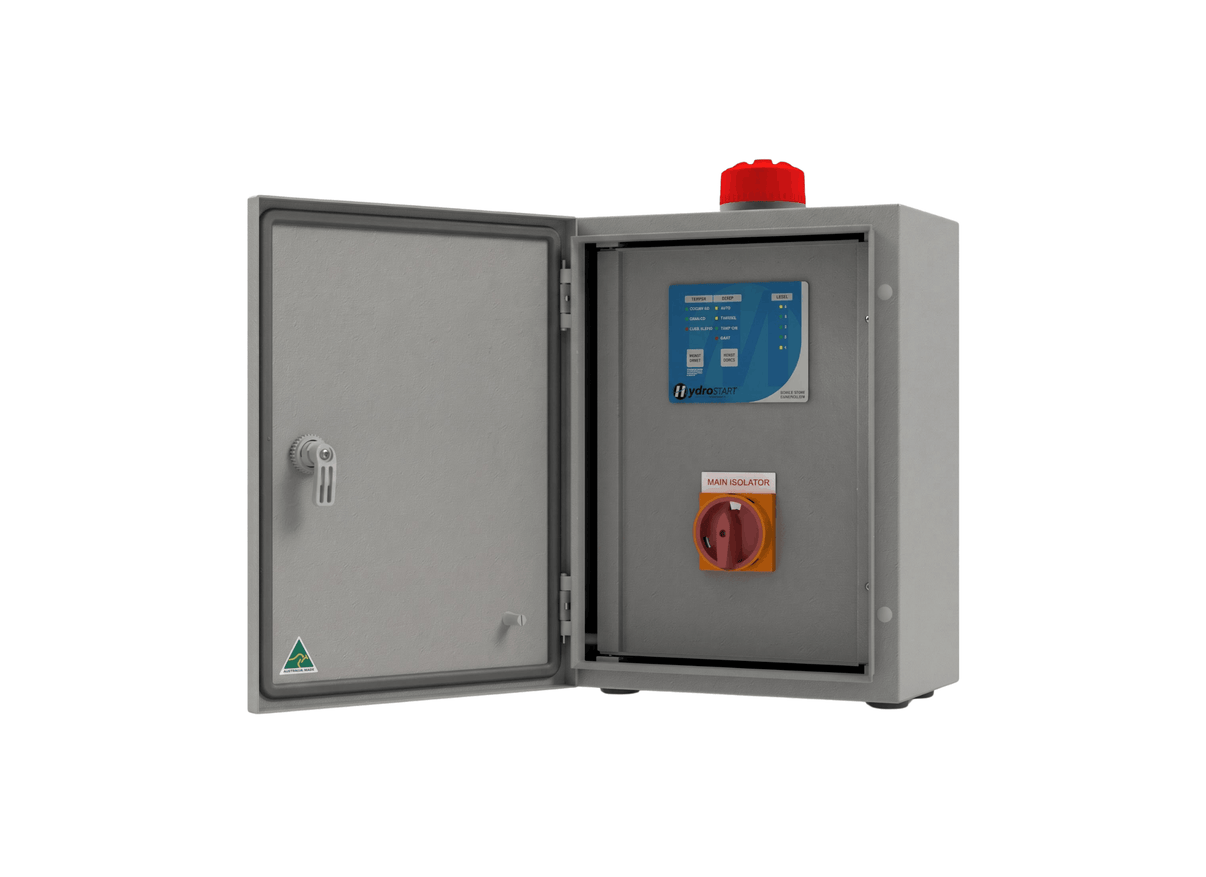

• Powder coated mild steel enclosure with inner door and removable gland plate.
• Padlockable mains isolator and circuit breaker protected low voltage control.
• Qualified electrical installation required with isolated supply.
• Confirm enclosure rating and dimensions with MATelec.
