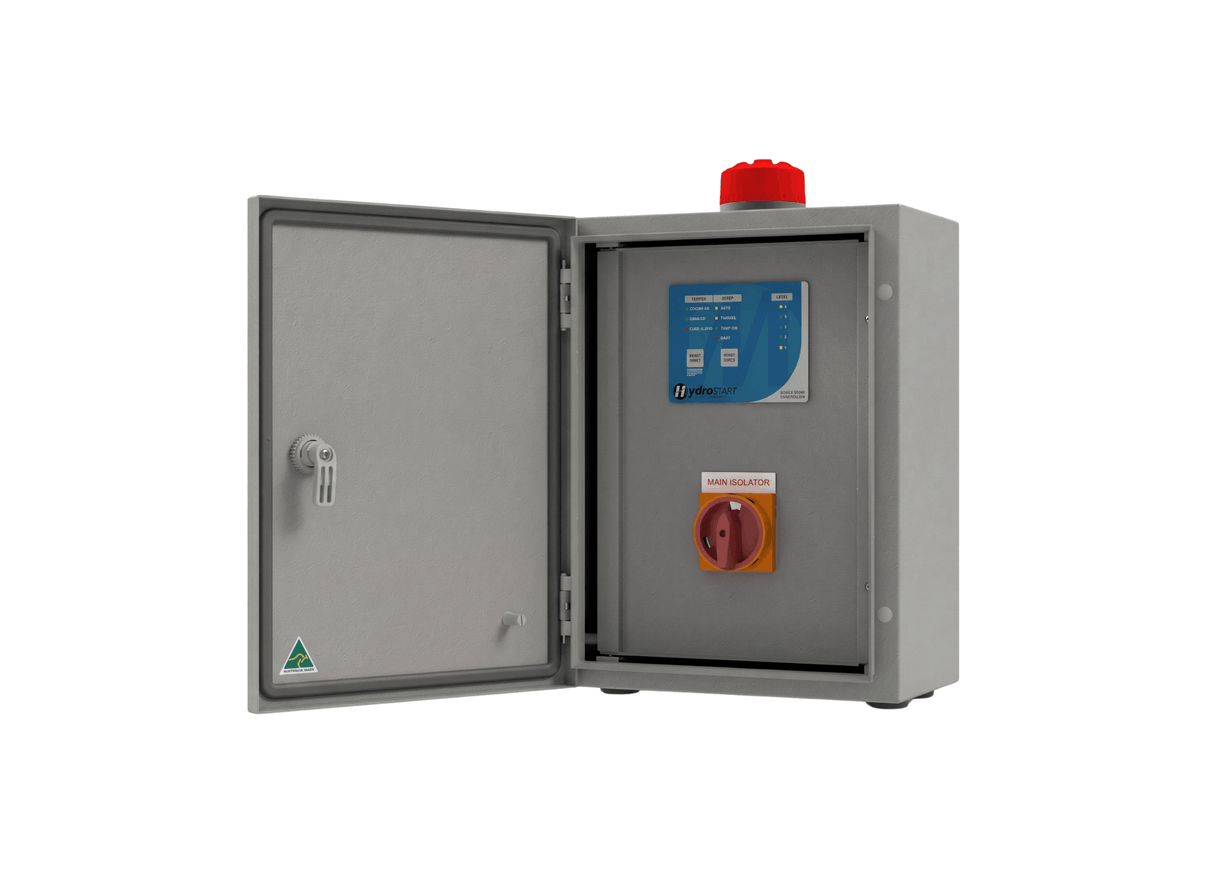

MATelec HydroSTART FPC-82143-RMC/PL Mild Steel 3PH Pulse Latching Rain Mains Changeover

Pulse latching valve control on three phase 400Vac supply - the FPC-82143-RMC/PL delivers exactly that. This HydroSTART rain/mains changeover controller from MATelec manages one pump on 400Vac with a 12Vdc pulse latching valve output.

The pulse latching valve holds its position without continuous power, making it an energy efficient choice for rain/mains changeover. The controller sends a close pulse when rain water is available and an open pulse when the tank runs dry or the power fails.

The controller is rated at 0.1-16A for the pump circuit. The HydroSTART platform's construction features include a powder coated mild steel enclosure with inner door and removable gland plate, with padlockable mains isolator and circuit breaker protected low voltage control. This variant is configured for rain/mains changeover with a 12Vdc pulse latching valve output on three phase 400Vac supply.

Hardware specifications including enclosure rating and dimensions should be confirmed with MATelec at the time of ordering as detailed individual datasheets may not cover every suffix variant. All installation work should be performed by a qualified electrician with the supply isolated.

• HydroSTART pump controller platform.
• Three phase 400Vac supply.
• Single pump configuration.
• 0.1-16A operating current range.
• 12Vdc pulse latching valve output.
• Powder coated mild steel enclosure with inner door and removable gland plate.
• Padlockable mains isolator and circuit breaker protected low voltage control.
• Qualified electrical installation required with isolated supply.
• Confirm enclosure rating and dimensions with MATelec.
