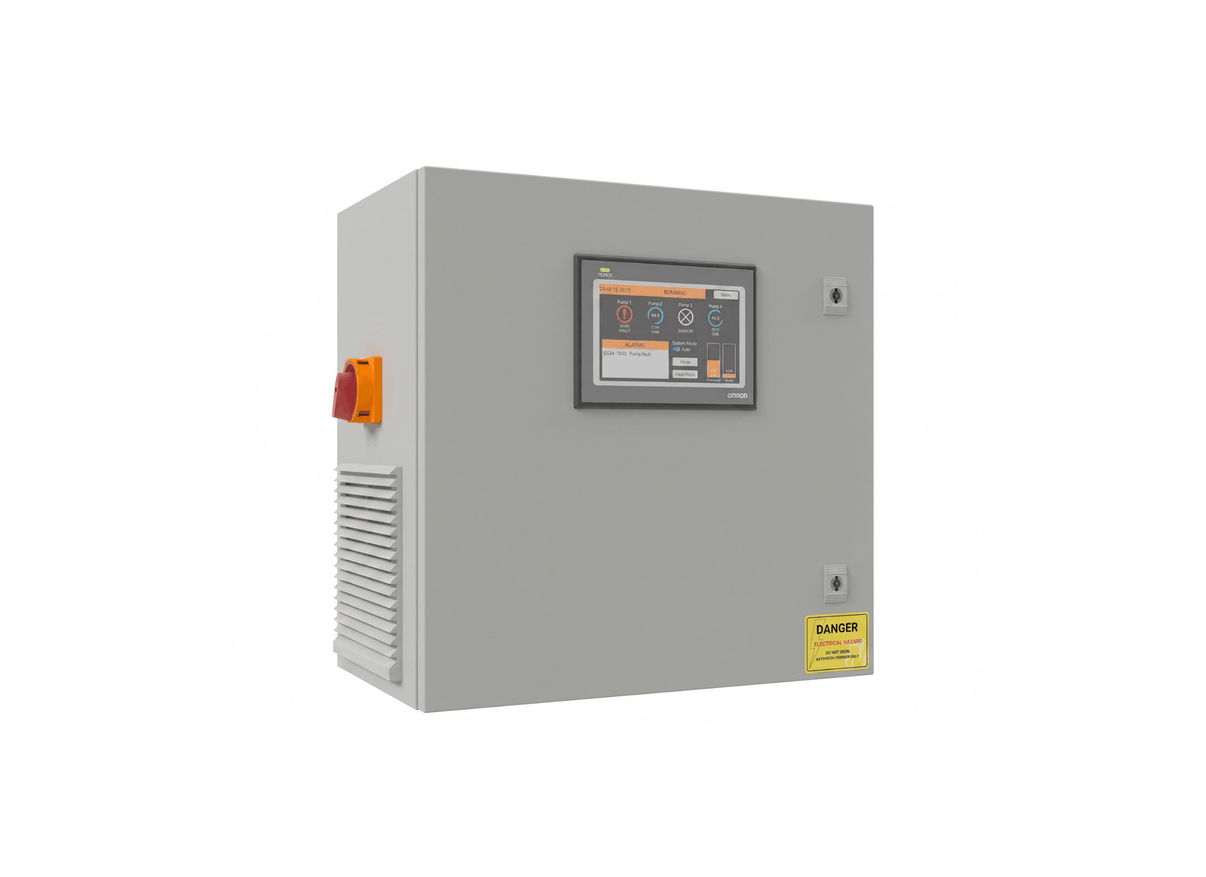

MATelec HydroTOUCH FPC-43120-I Mild Steel 15 kW Variable Speed Single Pump Controller

Accurate chemical dosing starts with consistent motor control, which the MATelec HydroTOUCH FPC-43120-I provides for a single 15 kW pump using dual transducer inputs. This controller operates on a standard three-phase power supply of 400 Vac at 50 Hz, adjusting VSD speed based on live transducer inputs. Connected instrumentation feedback allows the control module to adjust VSD frequency dynamically, ensuring efficient water management.

To maintain system efficiency, this panel incorporates advanced PID control parameters that adjust pump speed in response to system feedback. The controller adjusts the connected pump speed in response to system feedback to support stable operation.

A 7-inch touchscreen HMI and Setup Wizard simplify system commissioning. The interface provides detailed system monitoring, including power usage graphs, trend plots for pressure or level, and logged alarm events.

Din rail mounted terminals are provided for dual 4–20 mA inputs for level, pressure or temperature transducers, plus up to five 24 Vdc digital inputs. Standard RCD protection is not recommended because VSD EMC filtering can cause nuisance tripping. If RCD protection is required, Type B RCDs must be used with consideration of VSD earth leakage current.

• Supports Modbus RTU RS485 SCADA protocols for remote monitoring and diagnostics
• Features two assignable analogue outputs for mirroring speed, pressure, or level
• Integrated Setup Wizard on 7-inch color touchscreen HMI simplifies system commissioning
• Features a pad-lockable mains power isolator switch for electrical safety
• Optional UV lamp control based on system supply state or pump operation
• Provides configurable transducer inputs for pressure, flow, level or temperature control
• Housed in an IP44-rated, powder-coated mild steel enclosure with integrated ventilation
• Provides variable speed operation to adjust the connected pump in response to system demand
