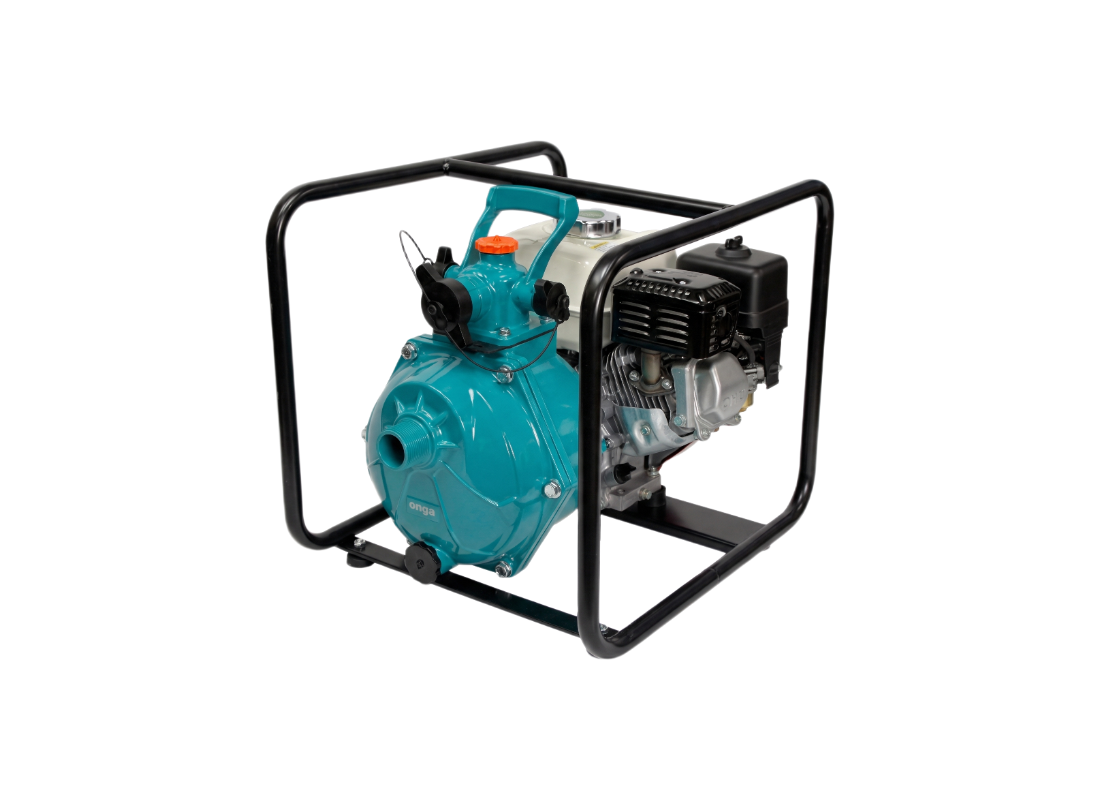

Onga BM2-55HR Aluminium Roll Frame Twin Stage Firefighting Petrol Pump with Honda GX160 Engine

Long distance transfer and high-pressure water distribution are the primary applications for this specialized twin stage engine-driven pump. It is engineered for environments where clean water must be delivered over significant elevations or through extensive pipe networks. The unit is ideal for rural properties requiring reliable high-head performance from mobile water sources.

Powered by a Honda GX160 petrol engine with a manual recoil start, this unit is built for dependable service in isolated field locations. Hydraulic performance includes a maximum head of upto 89 m and a maximum flow rate of upto 450 L/Min. This high-pressure profile is achieved through a multi-impeller configuration designed for maximum vertical lift.

The hydraulic design features a twin stage centrifugal impeller system that builds pressure across two distinct stages for enhanced performance. This twin-impeller configuration enables the pump to achieve significantly higher head than single-stage units while maintaining a stable flow rate. Integrated self-priming capability ensures rapid suction and immediate operation.

Construction hardware includes a marine grade aluminium pump body for superior durability and corrosion resistance in outdoor environments. The unit features a 40 mm suction inlet and a 3-way discharge configuration with one 40 mm and two 25 mm outlets. Mechanical integrity is maintained by high-quality internal seals and a rugged mounting frame for engine stability.

FEATURES

• High-pressure twin stage centrifugal pump designed for long distance water transfer and high-head distribution in rural areas.
• Driven by a premium Honda GX160 petrol engine with manual recoil start for reliable operation without utility power.
• Marine grade aluminium pump body provides a high-strength, corrosion-resistant shell for long-term service in harsh conditions.
• Dual impeller hydraulic configuration provides stronger pressure for pumping higher and longer distances.
• Rapid self-priming design allows for quick suction establishment from tanks, dams, or creeks for immediate high-head service.
• Versatile 3-way discharge arrangement featuring one 40 mm and two 25 mm ports supports multiple distribution lines simultaneously.
• Professional-grade internal sealing arrangement ensures a leak-free environment and protects the pump internals during operation.
• Robust portable platform provides a stable operating base and facilitates rapid deployment across diverse rural and civil terrains.
