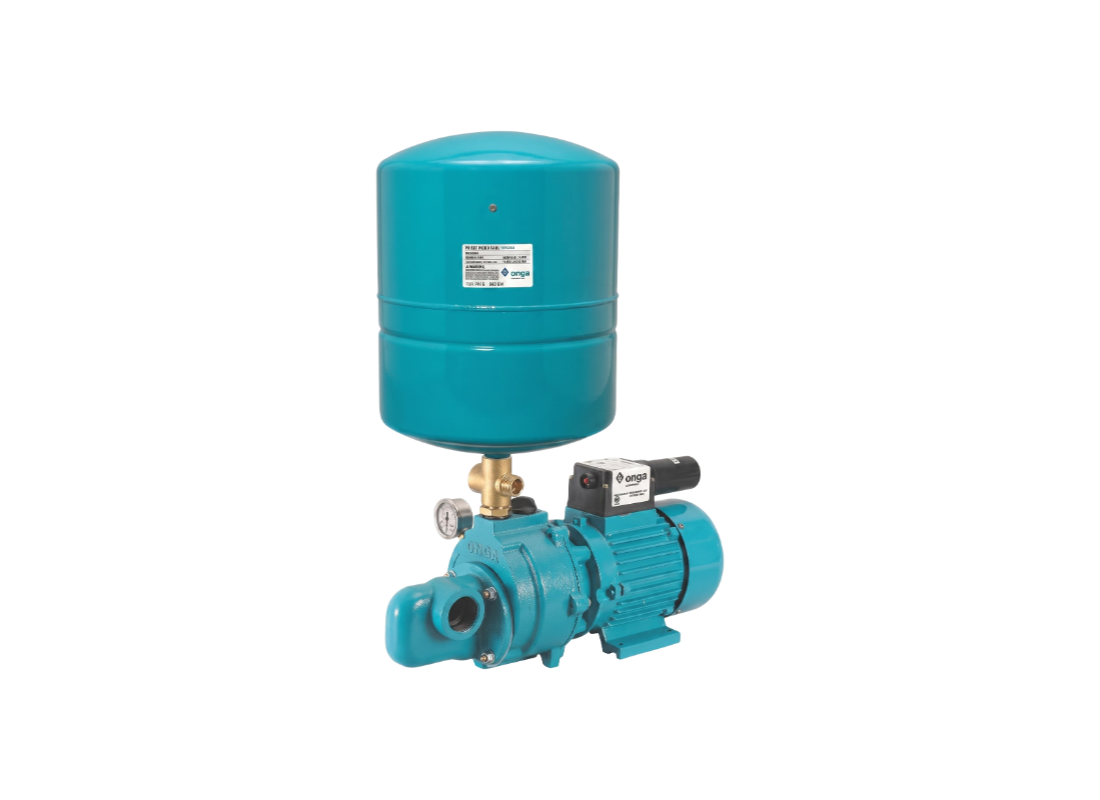

Irrigation supply and rural water transfer are the primary service areas for this 415v FarmMaster JJ600 kit. It is engineered for agricultural and industrial environments requiring a high-pressure automatic supply from bores, dams, or rivers. The unit provides a solution for properties where a three-phase power supply is available for continuous-duty operation.
Hydraulic performance reaches a maximum total head of 63 m and a maximum flow rate of 137 L/Min at 50Hz. This 1.1 kW three-phase motor draws a rated current of 2.6 Amps on a 400v/415v supply. These specifications establish the hydraulic output needed for large-scale agricultural irrigation and rural pressure boosting.
The pump utilizes a horizontal single-stage centrifugal design with jet and venturi assistance for enhanced suction lift. This design facilitates shallow well lifts of 7.6m and deep well lifts up to 37m when coupled with appropriate injectors. The closed impeller configuration is balanced for the high-efficiency movement of clean, debris-free water.
Structural hardware features a heavy-duty Cast Iron pump casing and injector housing for maximum mechanical strength. The internal assembly utilizes a glass-filled polycarbonate impeller and a carbon/ceramic mechanical seal with EPDM bellows. This kit is supplied with a factory-fitted pressure switch and a 24L steel pressure tank.
FEATURES
- Rugged Cast Iron pump casing and injector housing ensure mechanical durability in rural agricultural settings.
- Jet assisted pressure pump design utilizes a venturi system for reliable suction and vertical fluid lift.
- 20% Glass Filled Polycarbonate closed impeller ensures mechanical stability and high hydraulic efficiency.
- Versatile suction performance allowing shallow well lifts to 7.6m and deep well lifts to 37m with various injectors.
- Equipped with a 24L steel accumulation tank for automatic pressure management and reduced motor starts.
- Factory-fitted pressure switch provides consistent automatic start/stop control for the three-phase motor.
- Internal mechanical seal with ceramic and carbon graphite faces ensures a reliable watertight motor barrier.
- High-performance 415v three-phase induction motor rated at IP44 for functional outdoor reliability.
