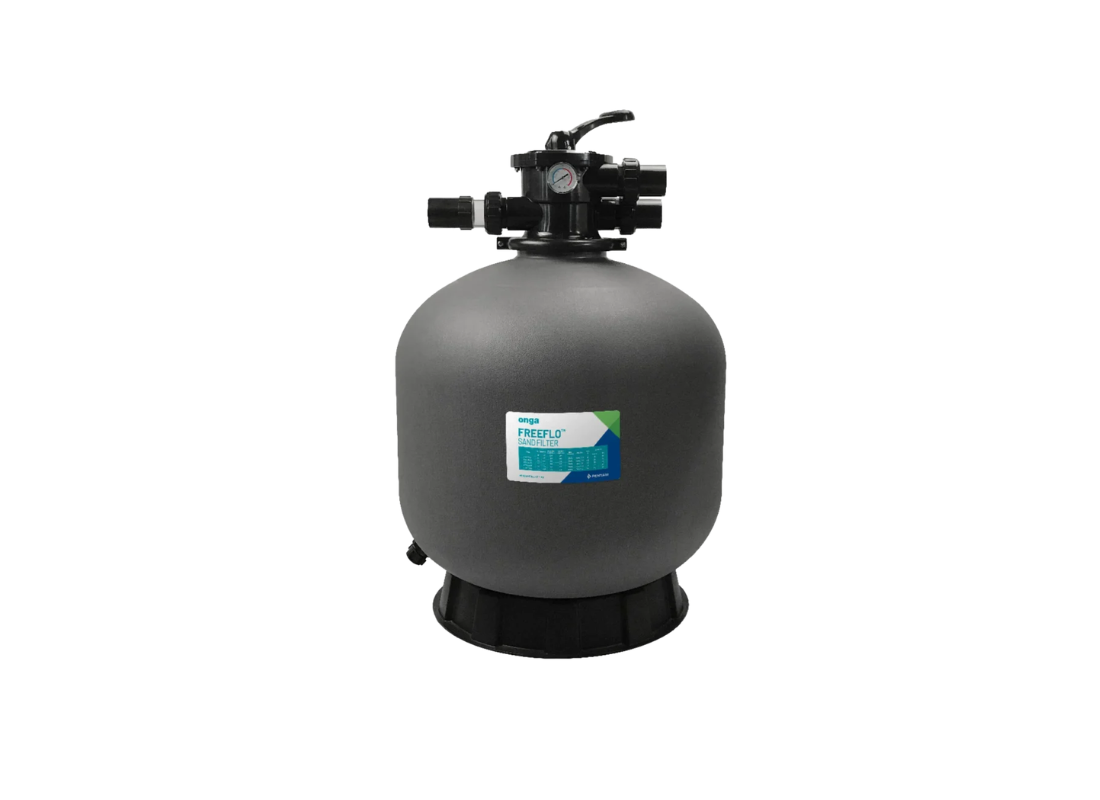

Onga FreeFlo 28" Fibreglass Sand Filter for Large Pool Systems with Rotating Thermoplastic Clamp

Higher residential pool turnover requirements and larger circulation systems can place additional demand on filtration equipment during extended operating periods. The Onga FreeFlo FFSF-28-50 increases vessel size, media capacity, and hydraulic handling capability to better support larger domestic pool systems requiring stronger water circulation and dependable long-duration filtration performance.

The filter provides an effective filtration area of 0.39 m² with maximum operating flow rates reaching 340 L/Min under normal filtration conditions. During servicing cycles, a minimum backwash flow rate of 230 L/Min is required to properly agitate and clean the media bed before returning the vessel to standard operation. Media compatibility includes 210 kg of sand or a dual-grade glass media configuration consisting of 120 kg fine glass together with 60 kg coarse glass media depending on installation preference and filtration setup requirements.

Its UV resistant fibreglass tank construction is intended for durability within exposed outdoor pool equipment areas and chemically treated residential water environments. The supplied six-function multi-port valve supports multiple operating positions including filtration, rinsing, recirculation, waste, closed, and backwash functions to simplify ongoing maintenance operation. A thermoplastic locking clamp secures the valve assembly while permitting full 360-degree rotational positioning during installation to assist plumbing alignment. Included barrel unions further simplify pipe connection and future servicing access around the filtration system.

• 28-inch fibreglass sand filter developed for larger residential circulation systems
• 50 mm / 2" six-function multi-port valve supplied with the filtration assembly
• Effective filtration area of 0.39 m² supporting higher residential turnover demand
• Maximum operating flow performance reaching 340 L/Min during filtration cycles
• Minimum required backwash flow of 230 L/Min for proper media cleaning operation
• Compatible with 210 kg sand loading or layered glass media configurations
• Glass media setup supports 120 kg fine glass and 60 kg coarse glass media
• UV resistant fibreglass vessel construction suited to outdoor pool installations
• Thermoplastic clamp allowing 360-degree valve rotation during plumbing setup
• 5 year pro-rata warranty*
