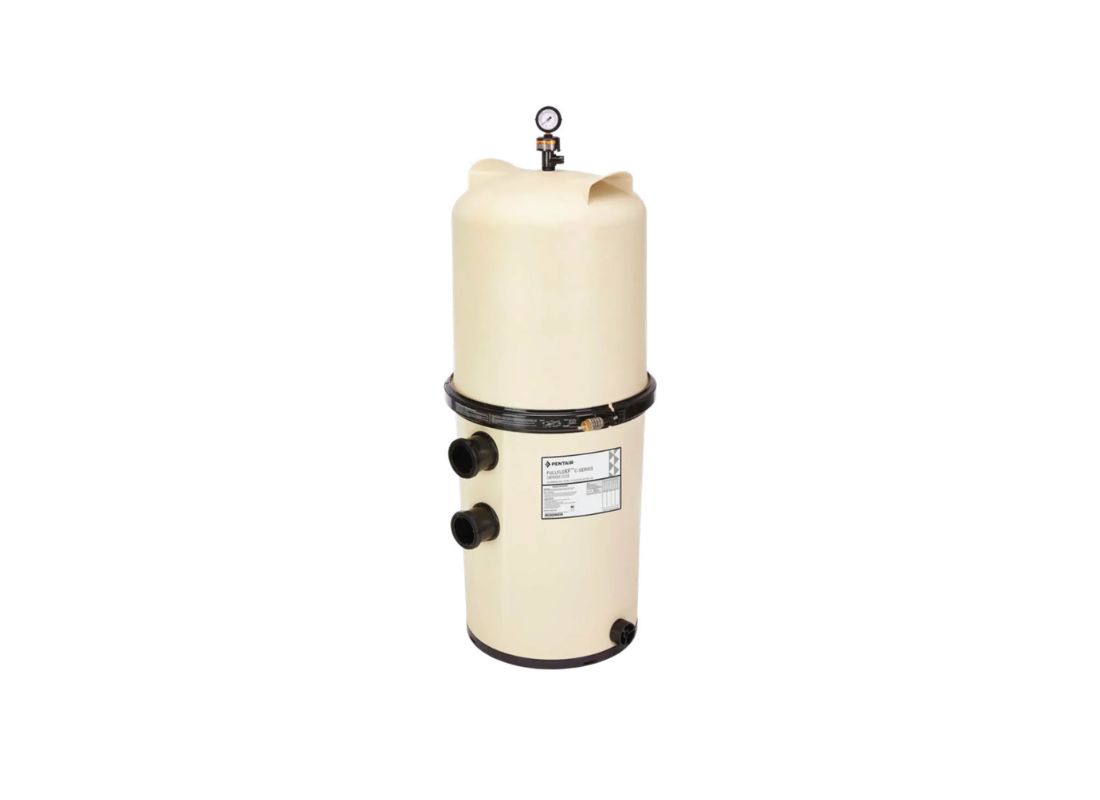

Onga FullFlo XF 620 Cartridge Filter for High Capacity Pool Systems with Glass Reinforced Tank

Large residential pools, feature pools, and higher-volume circulation systems can place significant demand on filtration equipment during extended operating periods. The Onga FullFlo XF 620 cartridge filter is configured to support these higher-capacity applications through an oversized cartridge assembly, balanced hydraulic performance, and reduced maintenance frequency compared with smaller cartridge filter systems.

The filter provides a total effective filtration area of 57.6 m² / 620 sq.ft. with maximum operating flow rates reaching approximately 681 L/Min. Turnover capacity is rated at approximately 328,000 litres over 8 hours, 410,000 litres over 10 hours, and 492,000 litres over 12 hours, allowing the unit to accommodate larger residential pools and demanding circulation requirements. Large 3€� / 80 mm port connections also assist higher-volume water movement through the filtration vessel.

Internally, the cartridge arrangement is configured to maximise available filtration surface area while increasing dirt holding capacity between cleaning intervals. Onga€™s balanced hydraulic flow design together with the enhanced internal flow path can deliver up to 25% greater energy efficiency and lower operating cost compared with standard cartridge filter configurations. Individually removable filter cartridges and dual easy-access drain plugs also simplify servicing and cleaning access during maintenance.

The tank body is manufactured from injection moulded glass reinforced polypropylene for strength, corrosion resistance, and long-term durability in chemically treated pool environments. A Tension Control„¢ clamp secures the vessel assembly, while the 1/4 turn manual air relief valve incorporates a hose port to assist controlled pressure release during servicing. Supplied 80 mm barrel unions support installation into larger plumbing systems, and the filter requires a vertical clearance of 193 cm for cartridge removal access. :contentReference[oaicite:0]{index=0}

• 620 sq.ft. / 57.6 m² effective filtration area for high-capacity residential pool systems
• Maximum operating flow rate of approximately 681 L/Min
• Approximate turnover capacity of 328,000L (8 hour), 410,000L (10 hour), and 492,000L (12 hour)
• Enhanced internal hydraulic design delivering up to 25% greater energy efficiency
• Large cartridge surface area increasing dirt holding capacity between cleanings
• Injection moulded glass reinforced polypropylene tank construction
• Individually removable cartridges with easy-access drain plugs for servicing
• 3€� / 80 mm ports supplied with 80 mm barrel unions
• Tension Control„¢ clamp with 1/4 turn manual air relief valve and hose port
• 10 year pro-rata warranty*
