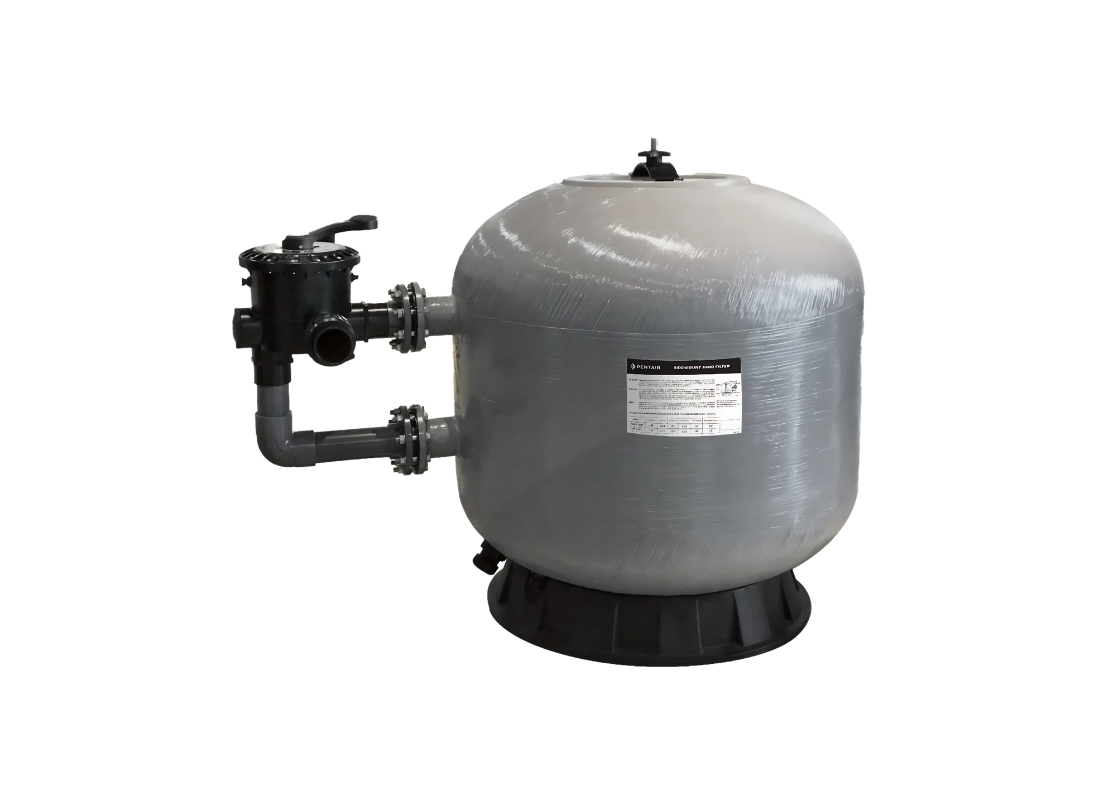

Onga PWT-S 1.0m Fibreglass Side-Mount Pool Filter for Commercial Pool with Six-Position Multi-Port Valve

Large commercial pool systems and aquatic circulation installations can utilise the Onga PWT-S-10-30 side-mount filter for continuous sand filtration and stable water treatment performance. The side-mount valve arrangement provides easier servicing access around plant room installations while supporting high-volume filtration duties across pools, fountains, and commercial water features.

Filtration capacity is supported through an effective filtration area of 0.82 m² with maximum flow rates reaching 41 m³/hr. Backwash performance extends to 29 m³/hr to assist with routine media cleaning and maintenance procedures, while the vessel accommodates approximately 620 kg of filtration sand media. Maximum operating pressure is rated to 250 kPa.

Balanced water movement through the media bed is maintained by dual layers of laterals designed to improve hydraulic distribution and support consistent debris removal during continuous commercial operation. The six-position multi-port valve enables filtration, backwash, rinse, recirculate, waste, and closed operating modes for day-to-day pool management and servicing requirements.

Spun-woven UV resistant fibreglass construction provides strong resistance against outdoor exposure, chemically treated water, and long-term commercial operating conditions. Plumbing integration is supported through 3” / 80 mm valve connections together with 2.5” (65 mm) barrel union connections suited to commercial circulation pipework layouts.

FEATURES

• Commercial side-mount sand filter with fibreglass tank construction
• 620 kg filtration media capacity for continuous-duty operation
• Dual lateral layers supporting balanced hydraulic flow distribution
• 2.5” (65 mm) barrel union plumbing connections
• Six-position valve arrangement for multiple servicing functions
• Spun-woven UV resistant fibreglass tank configuration
• 250 kPa maximum operating pressure capability
• Side-mount valve layout assisting commercial servicing access
