Onga PWT-V 1.0m Fibreglass Vertical Pool Filter for High Flow Water Treatment with Hybrid MPV

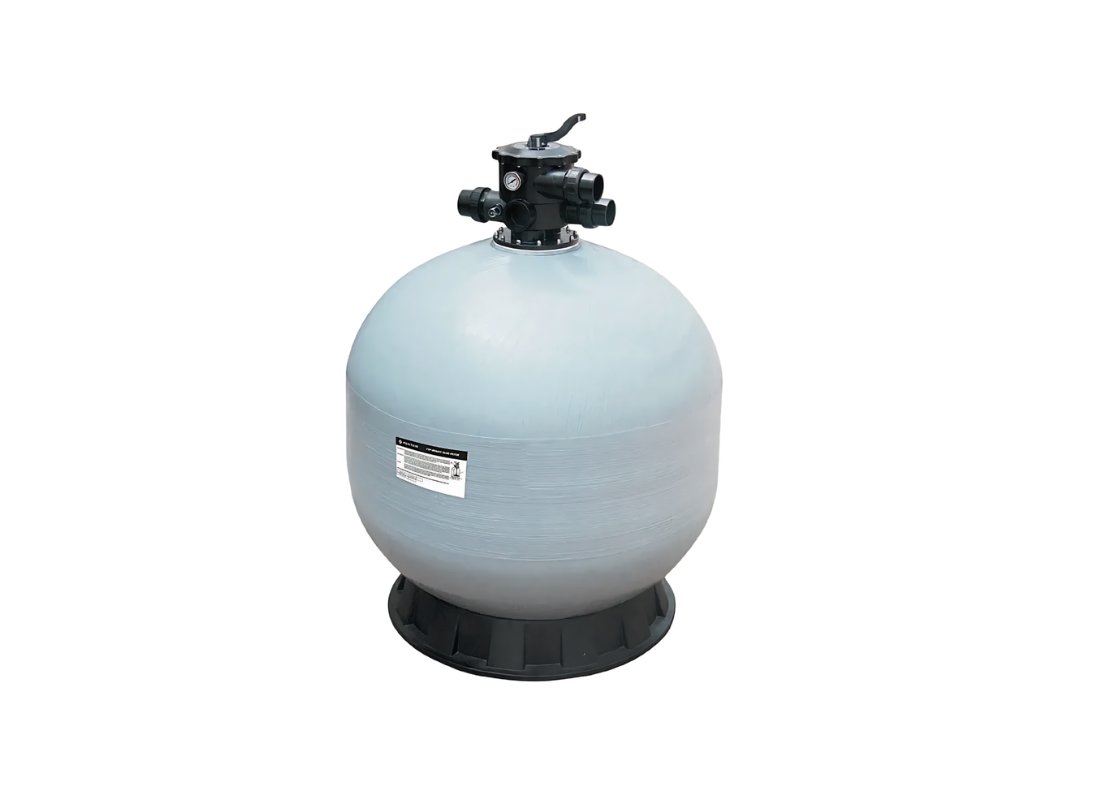

Higher commercial flow systems requiring stable sand filtration performance can integrate the Onga PWT-V-10-80 vertical filter across swimming pools, fountains, aquatic facilities, and large circulation installations. The 1.0 metre fibreglass tank configuration supports continuous-duty filtration while maintaining efficient hydraulic performance through commercial operating cycles.

The filter provides an effective filtration area of 0.79 m² with maximum hydraulic flow reaching 39.5 m³/hr. Backwash capacity extends to 27.6 m³/hr to support efficient media cleaning and servicing operations, while the vessel accommodates approximately 620 kg of filtration sand media.

Dual layers of laterals assist with balanced water dispersion across the filter bed to support effective debris capture and stable filtration performance under varying commercial flow conditions. A six-position multi-port valve is incorporated to manage filtration, rinse, waste, recirculate, backwash, and closed operating functions.

The tank is manufactured from spun-woven UV resistant fibreglass developed for strength, chemical resistance, and long-term outdoor durability. Commercial plumbing integration is supported through the hybrid 65 mm / 2.5€� multi-port valve arrangement together with 80 mm / 3€� barrel unions and 3€� / 80 mm valve connections.

FEATURES

• Commercial vertical fibreglass filtration vessel with top-mount MPV
• 620 kg sand media capacity for larger circulation systems
• Dual lateral layers supporting balanced filtration performance
• Hybrid 65 mm / 2.5€� MPV supplied with 80 mm / 3€� barrel unions
• Six-position valve arrangement for multiple operating modes
• UV resistant fibreglass tank construction for outdoor installations
• 250 kPa maximum operating pressure rating
• Commercial hydraulic configuration supporting higher flow applications
