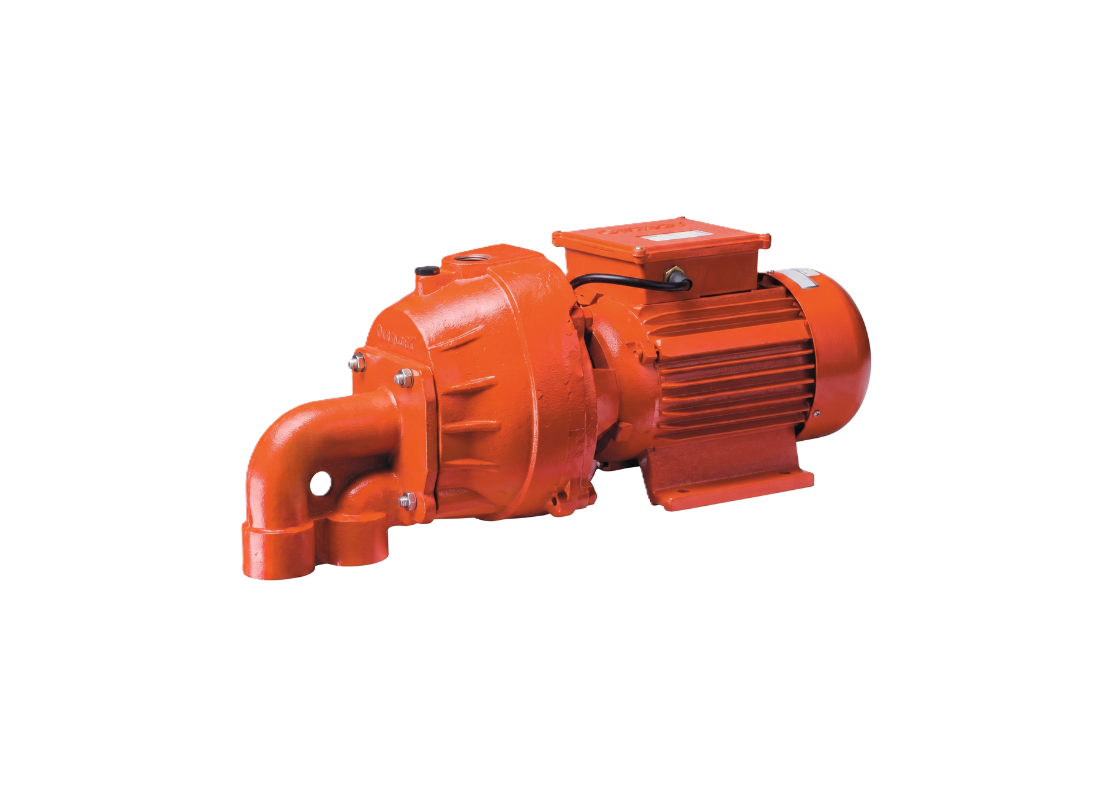

Built for irrigation rather than single trough or tap supply, the CJ650 with DW57-20 injector prioritises flow rate above all else. Farm irrigation is the intended application, with enough volume to feed sprinklers or a small irrigation zone without the pump labouring.
Output peaks at 130 L/Min at 10 m suction, tapering toward 45 m maximum head. The 1.1 kW / 240V motor draws 7.4 Amps. Larger 50 mm suction and 40 mm discharge pipework reduces friction loss compared with smaller injector variants, allowing higher water movement per minute.
The thermoplastic injector sits down the bore rather than at the pump, unaffected by salt, hardness and iron in groundwater. Its smooth bore keeps turbulence low at higher flow rates. The jet and venturi are matched to bore yield. An optional Offset Flange (101431, 1½ x 1½ inch female thread) allows installation away from the bore to access water above flood level or closer to electricity.
The pump features a cast iron body, stainless steel shaft, double race bearings and a carbon ceramic mechanical seal. The TEFC motor includes thermal overload protection and handles liquid temperatures up to 65°C. Supplied with the WK-CJ30-50 water kit assembled and glued, including an 18 litre tank with 6 litre draw-off. Covered by a 2-year warranty; loss-of-prime switch optional.
FEATURES
- DW57-20 injector with 50 mm suction and 40 mm discharge pipework.
- Thermoplastic injector tolerates salt, hard water and iron.
- Smooth injector bore reduces turbulence at higher flow rates.
- No moving parts or electricity down the bore.
- Jet and venturi matched to available groundwater yield.
- Cast iron pump body with stainless steel motor shaft.
- Double race bearings with carbon ceramic mechanical seal.
- TEFC motor with thermal overload protection.
- Suitable for liquid temperatures up to 65°C.
- WK-CJ30-50 water kit supplied assembled and glued.
- Includes pressure gauge, brass 5-way tee, gate valve and stainless steel barrel union.
- Backed by a 2-year manufacturer warranty.
