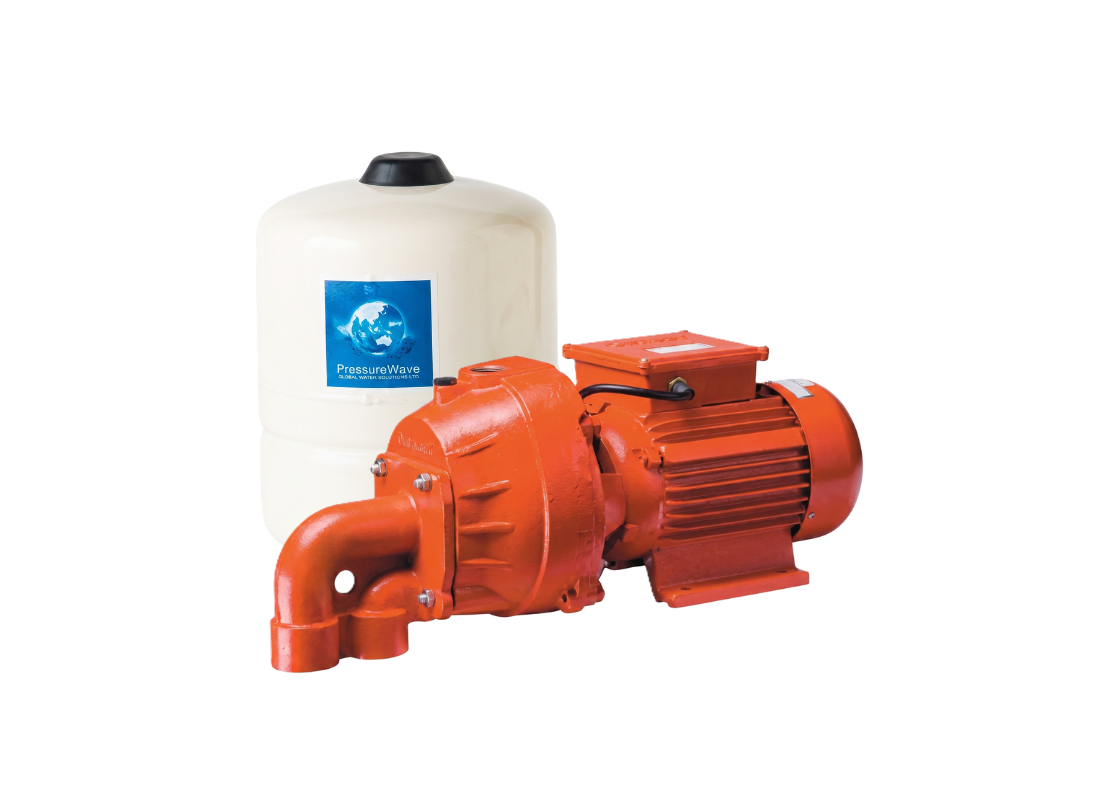

Subsurface water retrieval for farming properties utilizes the Orange Pumps CJ750-3P-DW54-20-T35 deep well system to tap underground aquifers. Operating with the down-bore DW54-20 thermoplastic injector assembly, the configuration handles mineralized deep well supplies without clogging. Typical uses include stock watering troughs, light crop irrigation, and supplying clean water to homestead storage tanks.
The certified performance parameters of the CJ750-3P-DW54-20-T35 deep well pump assembly demonstrate high operational capability. Under nominal load, the 1.5 kW / 415v electric motor drives the jet wet end to achieve approximately 66 m of maximum head. The system delivers approximately 90 L/Min maximum flow while drawing a rated operating current of 3.5 Amps under load.
The CJ750-3P-DW54-20-T35 incorporates a matched jet and venturi configuration that fits the down-bore DW54-20 thermoplastic injector parameters. Highly polished internal paths inside the submerged injector kit limit flow resistance and water swirling. The close-coupled motor integration maintains rigid alignment to protect internal rotating components from mechanical strain.
Constructed with a heavy-walled Cast Iron casing, the CJ750-3P-DW54-20-T35 pump body features 50 mm inlet and 40 mm outlet ports. The complete system package is supplied with a stainless steel barrel union for rapid priming and a solid brass 5-way tee. All system operations are monitored via the integrated pressure switch and gauge
FEATURES
- Supplied with professional Philmac foot valve and heavy-duty hose clamps for secure down-bore poly piping.
- Compatible with optional horizontal offset flanges for installation away from the vertical borehole line.
- Supplied stainless steel barrel union simplifies priming, down-bore piping connection, and on-site servicing.
- Integrated solid brass 5-way tee houses the pressure switch, pressure gauge, and discharge fittings securely.
- Internal water-shedding baffle plate shields the motor bearings from potential gland weepage or dampness.
- Submerged down-bore injector features zero moving parts to eliminate electrical risks below ground level.
