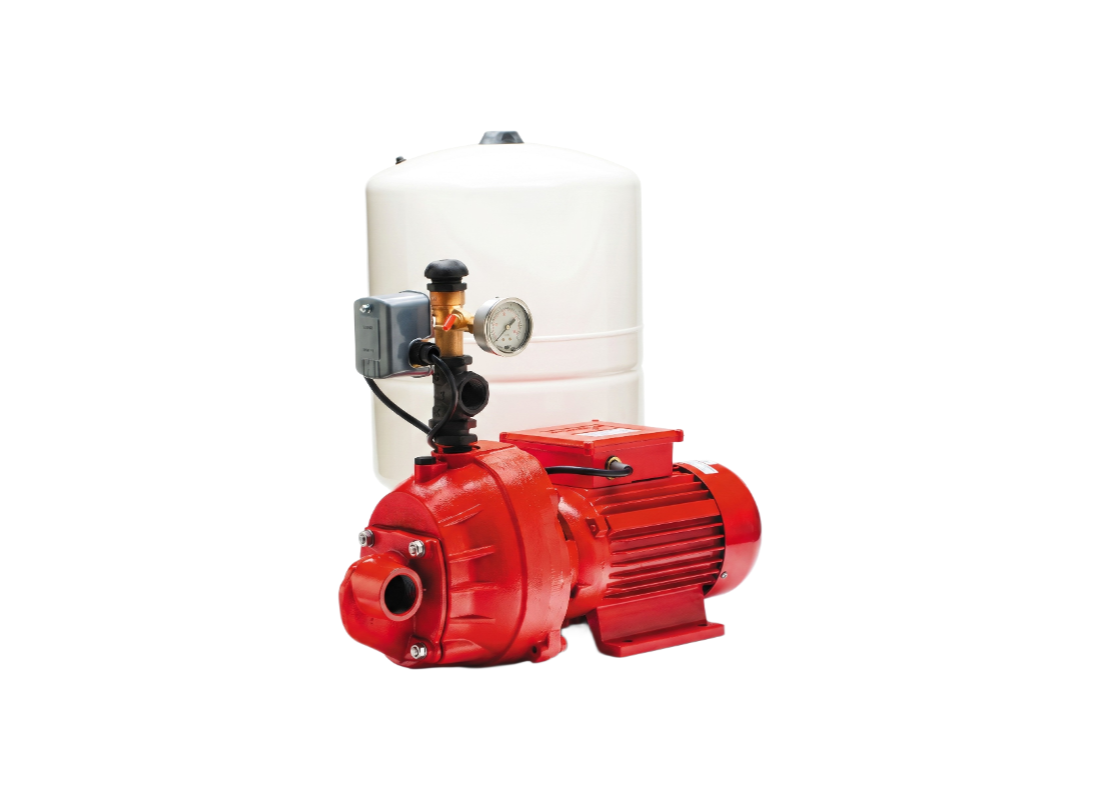

Orange Pumps CJ750-SW38 Cast Iron Shallow Well Pressure Pump for High Volume Water Transfer with 60 Litre Tank

Rural property owners requiring high-volume automatic tank filling or stock trough supply will benefit from this powerful single-phase pressure system. It is designed to draw water from dams or rivers and move it automatically whenever demand is detected. The inclusion of a 60 litre pressure tank provides efficient operation in this range by significantly reducing motor start-stop cycles.

Driven by a 1.5 kW single-phase 240v motor, the unit draws a rated current of 9.7 Amps during operation. Hydraulic performance reaches a maximum flow rate of 172 L/Min and delivers a maximum head of approximately 45 m. This profile is optimized for moving substantial volumes over moderate elevations across large property networks.

This model is supplied with the WK-CJ30-50 water kit and a Type D mechanical switch integrated with a 60 litre pressure tank. The internal SW38 injector is hydraulically tuned to deliver maximum flow while the jet and venturi design purges air from the casing. The 60 litre tank provides increased draw-off capacity, delaying pump activation for small demands and saving energy.

Mechanical durability is provided by a solid cast iron casing and a double race bearing system that shares the motor load. The Type D mechanical switch is engineered for high electrical tolerance against surges common in remote areas. The entire assembly handles liquid temperatures up to 65°C and is backed by a 2-year Orange Pumps warranty.

FEATURES

• Durable cast iron construction provides a rigid platform for long-term reliability in outdoor rural sites.
• 60 litre pressure tank provides increased water draw-off capacity to effectively minimize pump cycling and reduce energy costs.
• WK-CJ30-50 water kit includes a stainless steel barrel union, gate valve, and pressure gauge for accurate system monitoring.
• Type D mechanical switch features heavy-duty relay points for reliable automated operation without sensitive electronic components.
• SW38 injector configuration is specifically designed to achieve maximum water volume for rapid tank replenishment tasks.
• Double race bearing technology manages axial and radial loads effectively to extend the operational life of the motor.
• Large oval casing holds ample water around the impeller to assist with self-priming.
• TEFC protection safeguards internal electrical parts from moisture, dust, and overheating.
