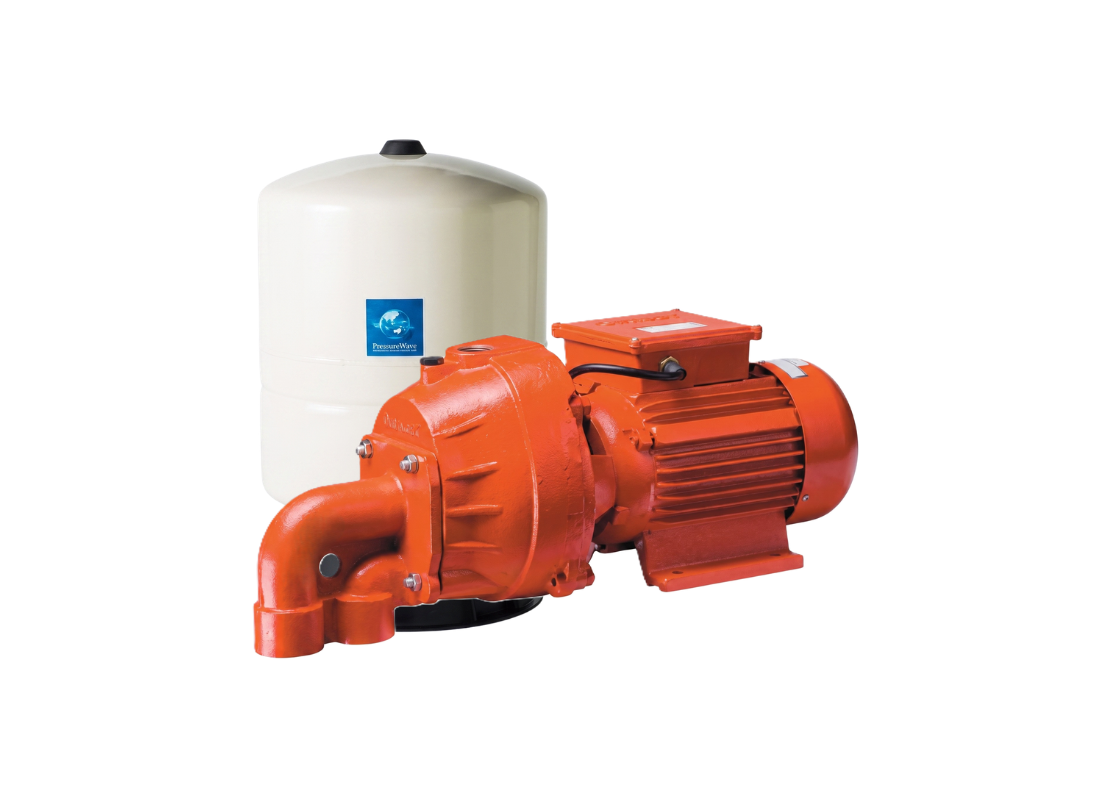

Accessing groundwater reserves at significant depths is achieved using the Orange Pumps CJ850-1P-D32-20-T60 jet pump installation. This setup operates with a submerged D32-20 thermoplastic injector kit to handle saline bore water and localized sand sediment. Agricultural properties utilize this model for pasture irrigation, domestic household services, and filling farm storage dams.
Operating under high pressure conditions, the CJ850-1P-D32-20-T60 deep well jet system provides verified hydraulic delivery. Driven by a robust 2.4 kW / 240v motor, the pump produces a maximum head of approximately 79 m and a maximum flow rate of approximately 47 L/Min. The electrical configuration runs continuously with a rated current draw of 14.1 Amps.
Matching the nozzle and venturi sizes to the down-bore D32-20 injector kit allows the CJ850-1P-D32-20-T60 to balance flow velocities. The smooth injection-molded thermoplastic surface of the submerged injector reduces fluid friction and localized swirling water paths. This close-coupled design prevents motor shaft misalignment to shield the internal mechanical seals from rotational wear.
Constructed with a heavy-walled Cast Iron casing, the CJ850-1P-D32-20-T60 pump body features 50 mm inlet and 40 mm outlet ports. The complete system package is supplied with a stainless steel barrel union for rapid priming and a solid brass 5-way tee. All system operations are monitored via the integrated pressure switch and gauge
FEATURES
- Integrated solid brass 5-way tee houses the pressure switch, pressure gauge, and discharge fittings securely.
- Compatible with optional horizontal offset flanges for installation away from the vertical borehole line.
- Internal water-shedding baffle plate shields the motor bearings from potential gland weepage or dampness.
- Heavy-walled cast iron pump housing resists extreme pressure fluctuations and environmental weathering.
- Supplied stainless steel barrel union simplifies priming, down-bore piping connection, and on-site servicing.
- Submerged down-bore injector features zero moving parts to eliminate electrical risks below ground level.
