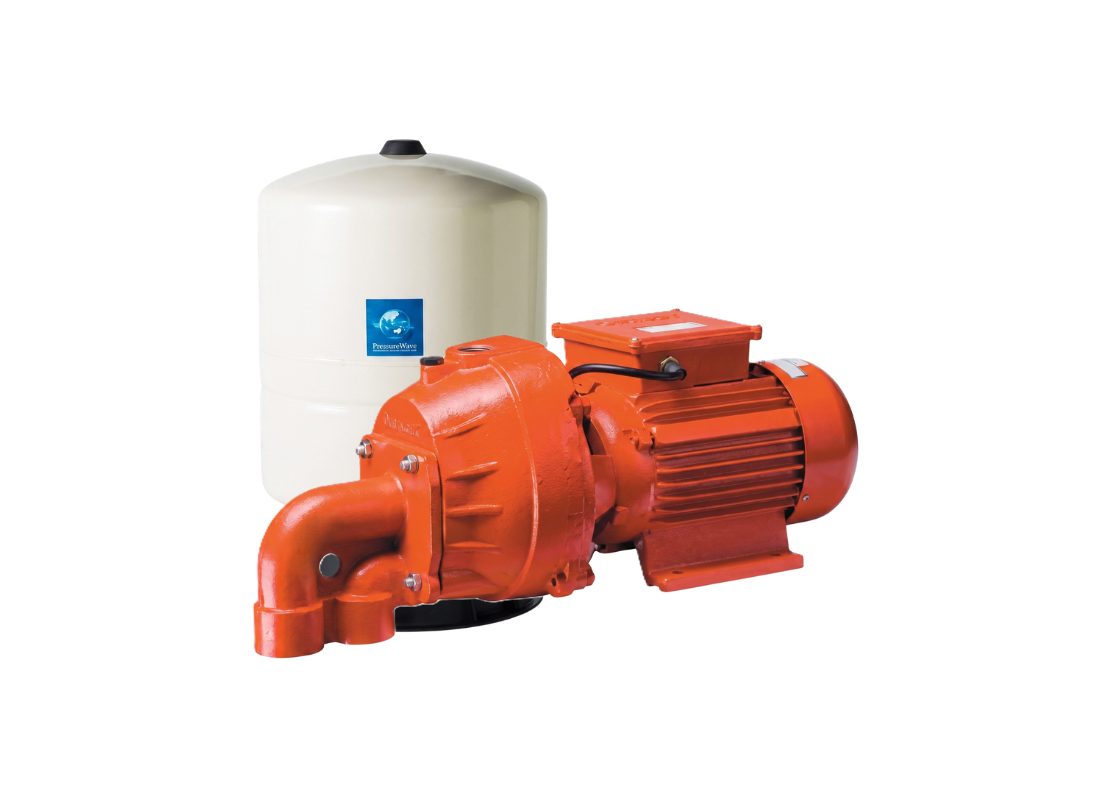

Accessing groundwater reserves at significant depths is achieved using the Orange Pumps CJ850-1P-DW32-15-T60 jet pump installation. This setup operates with a submerged DW32-15 thermoplastic injector kit to handle saline bore water and localized sand sediment. Agricultural properties utilize this model for stock watering troughs, light crop irrigation, and supplying clean water to homestead storage tanks.
Operating under high pressure conditions, the CJ850-1P-DW32-15-T60 deep well jet system provides verified hydraulic delivery. Driven by a robust 2.4 kW / 240v motor, the pump produces a maximum head of approximately 82 m and a maximum flow rate of approximately 55 L/Min. The electrical configuration runs continuously with a rated current draw of 14.1 Amps.
An efficient suction lift is achieved by matching the internal nozzle and venturi to the submerged DW32-15 injector on the CJ850-1P-DW32-15-T60. This non-electrical down-bore assembly contains no moving parts, lowering overall maintenance requirements. Having a close-coupled casing construction prevents shaft deflection and reduces stress on internal rotating parts.
The heavy-duty Cast Iron casing of the CJ850-1P-DW32-15-T60 features a 40 mm intake port and a 32 mm discharge port to handle high-pressure flow. It comes equipped with a brass 5-way tee and a stainless steel barrel union for servicing. The unit is controlled via the active pressure switch and gauge
FEATURES
- Supplied with professional Philmac foot valve and heavy-duty hose clamps for secure down-bore poly piping.
- Close-coupled layout maintains permanent alignment between the motor shaft and the cast iron wet end.
- Heavy-walled cast iron pump housing resists extreme pressure fluctuations and environmental weathering.
- Compatible with optional horizontal offset flanges for installation away from the vertical borehole line.
- Internal water-shedding baffle plate shields the motor bearings from potential gland weepage or dampness.
- Thermosetting plastic internal parts provide smooth fluid channels to reduce localized flow resistance.
