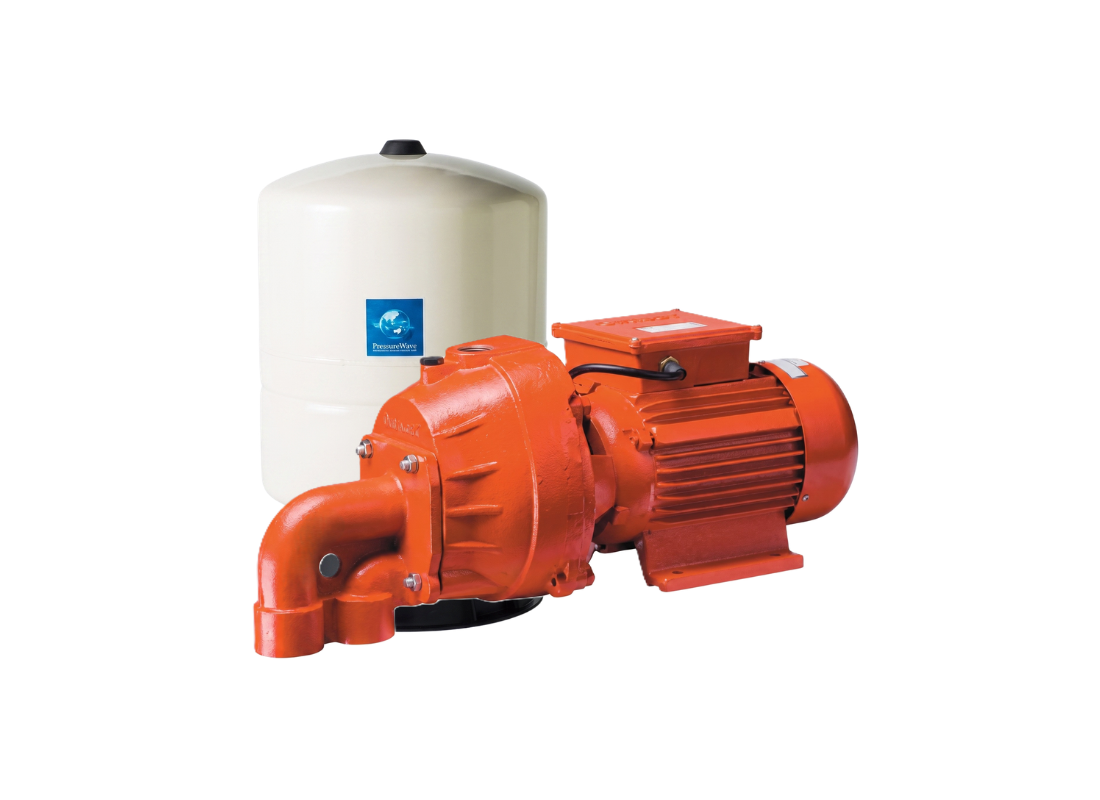

Accessing groundwater reserves at significant depths is achieved using the Orange Pumps CJ850-1P-DW76-20-T60 jet pump installation. This setup operates with a submerged DW76-20 thermoplastic injector kit to handle saline bore water and localized sand sediment. Agricultural properties utilize this model for pasture irrigation, domestic household services, and filling farm storage dams.
Testing data for the CJ850-1P-DW76-20-T60 deep well configuration confirms robust pressure output across deep vertical lifts. The close-coupled 2.4 kW / 240v motor drives the internal impellers to yield a maximum flow of approximately 115 L/Min and maximum head of approximately 66 m. Current consumption is rated at 14.1 Amps for continuous thermal stability.
Through precise nozzle and venturi alignment within the down-bore DW76-20 assembly, the CJ850-1P-DW76-20-T60 minimizes water turbulence during deep suction cycles. The thermoplastic material used for the injector prevents corrosion from high salt and mineral concentrations. A close-coupled layout maintains permanent motor shaft alignment to extend seal service life.
The physical build of the CJ850-1P-DW76-20-T60 includes a rugged Cast Iron housing featuring 50 mm suction and 40 mm discharge ports. Standard fittings provided include a brass 5-way tee and a stainless steel barrel union for servicing. A heavy-duty pressure switch and gauge monitor operations
FEATURES
- Supplied stainless steel barrel union simplifies priming, down-bore piping connection, and on-site servicing.
- Supplied with professional Philmac foot valve and heavy-duty hose clamps for secure down-bore poly piping.
- Type D automatic pressure switch includes heavy-duty relay contacts for automatic system starting control.
- Integrated solid brass 5-way tee houses the pressure switch, pressure gauge, and discharge fittings securely.
- Close-coupled layout maintains permanent alignment between the motor shaft and the cast iron wet end.
- Internal water-shedding baffle plate shields the motor bearings from potential gland weepage or dampness.
