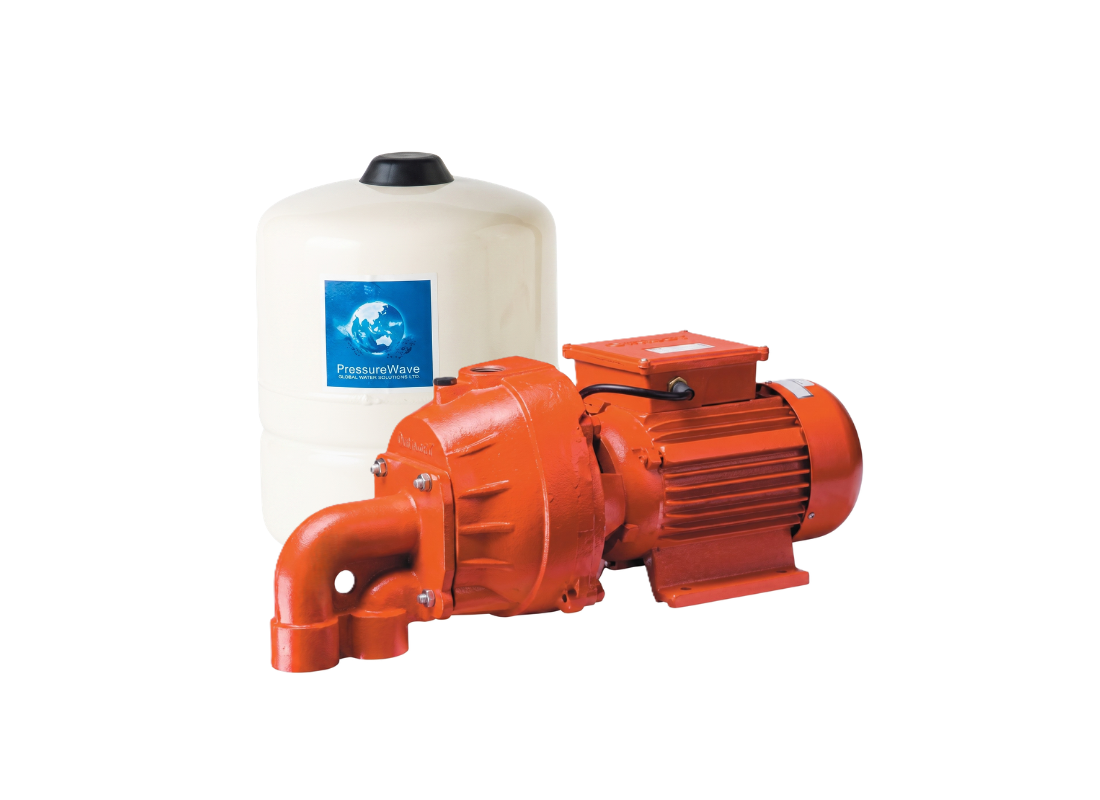

Accessing groundwater reserves at significant depths is achieved using the Orange Pumps CJ850-3P-D32-20-T35 jet pump installation. This setup operates with a submerged D32-20 thermoplastic injector kit to handle saline bore water and localized sand sediment. Agricultural properties utilize this model for pasture irrigation, domestic household services, and filling farm storage dams.
The certified performance parameters of the CJ850-3P-D32-20-T35 deep well pump assembly demonstrate high operational capability. Under nominal load, the 2.4 kW / 415v electric motor drives the jet wet end to achieve approximately 79 m of maximum head. The system delivers approximately 47 L/Min maximum flow while drawing a rated operating current of 5 Amps under load.
An efficient suction lift is achieved by matching the internal nozzle and venturi to the submerged D32-20 injector on the CJ850-3P-D32-20-T35. This non-electrical down-bore assembly contains no moving parts, lowering overall maintenance requirements. Having a close-coupled casing construction prevents shaft deflection and reduces stress on internal rotating parts.
The physical build of the CJ850-3P-D32-20-T35 includes a rugged Cast Iron housing featuring 50 mm suction and 40 mm discharge ports. Standard fittings provided include a brass 5-way tee and a stainless steel barrel union for servicing. A heavy-duty pressure switch and gauge monitor operations
FEATURES
- Close-coupled layout maintains permanent alignment between the motor shaft and the cast iron wet end.
- Supplied stainless steel barrel union simplifies priming, down-bore piping connection, and on-site servicing.
- Submerged down-bore injector features zero moving parts to eliminate electrical risks below ground level.
- Internal water-shedding baffle plate shields the motor bearings from potential gland weepage or dampness.
- Supplied with professional Philmac foot valve and heavy-duty hose clamps for secure down-bore poly piping.
- Heavy-walled cast iron pump housing resists extreme pressure fluctuations and environmental weathering.
