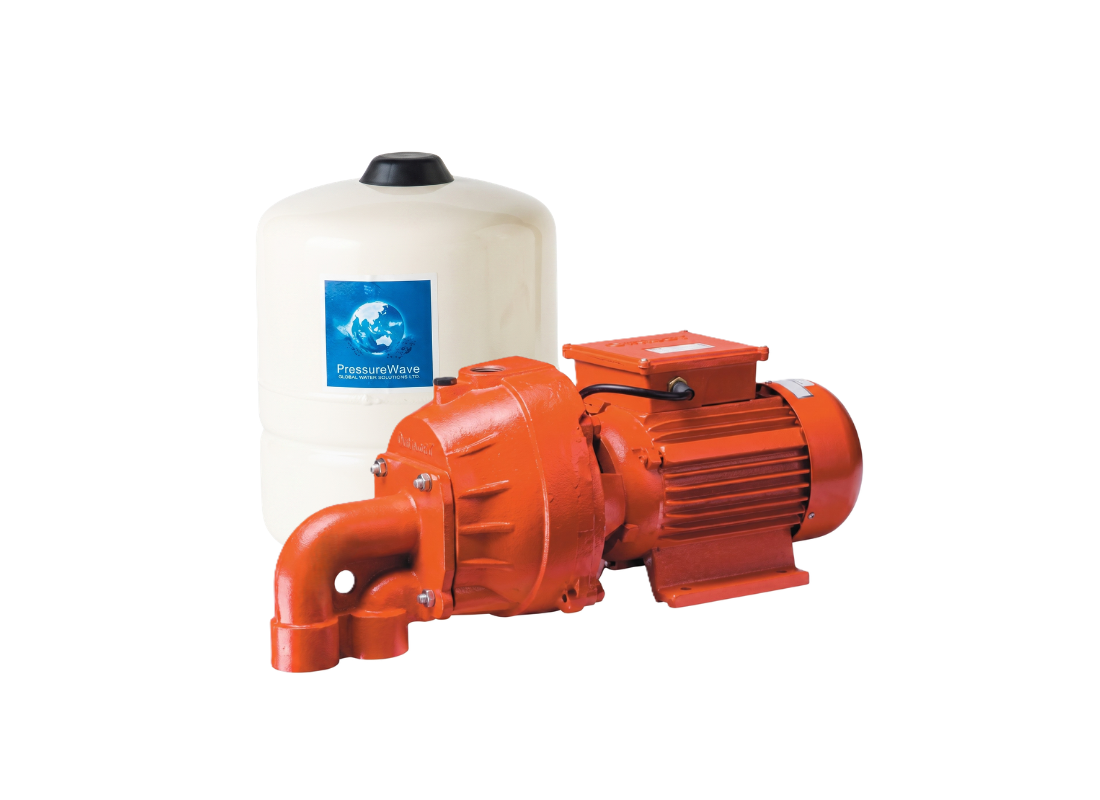

Accessing groundwater reserves at significant depths is achieved using the Orange Pumps CJ850-3P-DW76-20-T35 jet pump installation. This setup operates with a submerged DW76-20 thermoplastic injector kit to handle saline bore water and localized sand sediment. Agricultural properties utilize this model for pasture irrigation, domestic household services, and filling farm storage dams.
Hydraulic specifications for this CJ850-3P-DW76-20-T35 deep well model indicate suction performance at deep water levels. Featuring a 2.4 kW / 415v power rating, the motor maintains approximately 66 m maximum head and approximately 115 L/Min maximum flow. The unit draws a continuous rated current of 5 Amps under standard load.
The CJ850-3P-DW76-20-T35 incorporates a matched jet and venturi configuration that fits the down-bore DW76-20 thermoplastic injector parameters. Highly polished internal paths inside the submerged injector kit limit flow resistance and water swirling. The close-coupled motor integration maintains rigid alignment to protect internal rotating components from mechanical strain.
The physical build of the CJ850-3P-DW76-20-T35 includes a rugged Cast Iron housing featuring 50 mm suction and 40 mm discharge ports. Standard fittings provided include a brass 5-way tee and a stainless steel barrel union for servicing. A heavy-duty pressure switch and gauge monitor operations
FEATURES
- Compatible with optional horizontal offset flanges for installation away from the vertical borehole line.
- Submerged down-bore injector features zero moving parts to eliminate electrical risks below ground level.
- Supplied with professional Philmac foot valve and heavy-duty hose clamps for secure down-bore poly piping.
- Supplied stainless steel barrel union simplifies priming, down-bore piping connection, and on-site servicing.
- Type D automatic pressure switch includes heavy-duty relay contacts for automatic system starting control.
- Close-coupled layout maintains permanent alignment between the motor shaft and the cast iron wet end.
