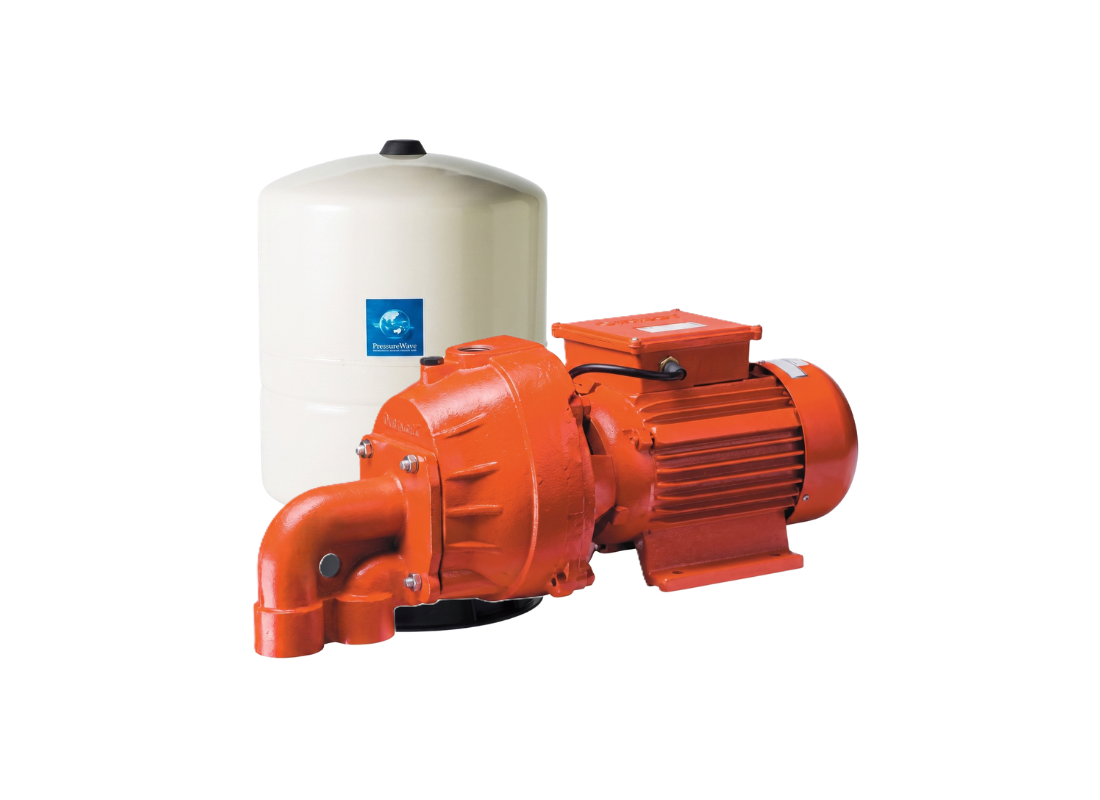

Drawing from deep boreholes or clean wells, the Orange Pumps CJ850-3P-DW79-20-T60 jet water pump delivers reliable long-term pressure duties. With its active DW79-20 thermoplastic injector kit submerged below the water table, the system handles scaling and lime concentrations. Main applications encompass supplying domestic household fittings, livestock paddocks, and clean crop water.
Operating under high pressure conditions, the CJ850-3P-DW79-20-T60 deep well jet system provides verified hydraulic delivery. Driven by a robust 2.4 kW / 415v motor, the pump produces a maximum head of approximately 53 m and a maximum flow rate of approximately 170 L/Min. The electrical configuration runs continuously with a rated current draw of 5 Amps.
The CJ850-3P-DW79-20-T60 incorporates a matched jet and venturi configuration that fits the down-bore DW79-20 thermoplastic injector parameters. Highly polished internal paths inside the submerged injector kit limit flow resistance and water swirling. The close-coupled motor integration maintains rigid alignment to protect internal rotating components from mechanical strain.
The heavy-duty Cast Iron casing of the CJ850-3P-DW79-20-T60 features a 50 mm intake port and a 40 mm discharge port to handle high-pressure flow. It comes equipped with a brass 5-way tee and a stainless steel barrel union for servicing. The unit is controlled via the active pressure switch and gauge
FEATURES
- Close-coupled layout maintains permanent alignment between the motor shaft and the cast iron wet end.
- Compatible with optional horizontal offset flanges for installation away from the vertical borehole line.
- Submerged down-bore injector features zero moving parts to eliminate electrical risks below ground level.
- Type D automatic pressure switch includes heavy-duty relay contacts for automatic system starting control.
- Supplied stainless steel barrel union simplifies priming, down-bore piping connection, and on-site servicing.
- Supplied with professional Philmac foot valve and heavy-duty hose clamps for secure down-bore poly piping.
