Bore water extraction from the deepest, most restrictive sources in the CJ range is the job of the DW32-15 injector, available in 415V form for three-phase properties. It delivers 82 m maximum head — the highest figure of any CJ injector in the 40 mm/32 mm pipe class — suiting sites where vertical lift is the primary challenge with three-phase efficiency.
Flow is 55 L/Min at 10 m suction, continuing to deliver 5 L/Min out to 50 m suction depth. The three-phase 2.4 kW / 415V motor draws 5 Amps per phase, supporting the most demanding depth requirements with efficient operation.
The thermoplastic DW32-15 injector is the only component lowered. It resists salt, hardness and iron found in groundwater, with a smooth bore that keeps turbulence low. The jet and venturi are matched to bore yield. An optional Offset Flange (101431, 1½ x 1½ inch female thread) allows installation away from the bore to access water above flood level or closer to electricity.

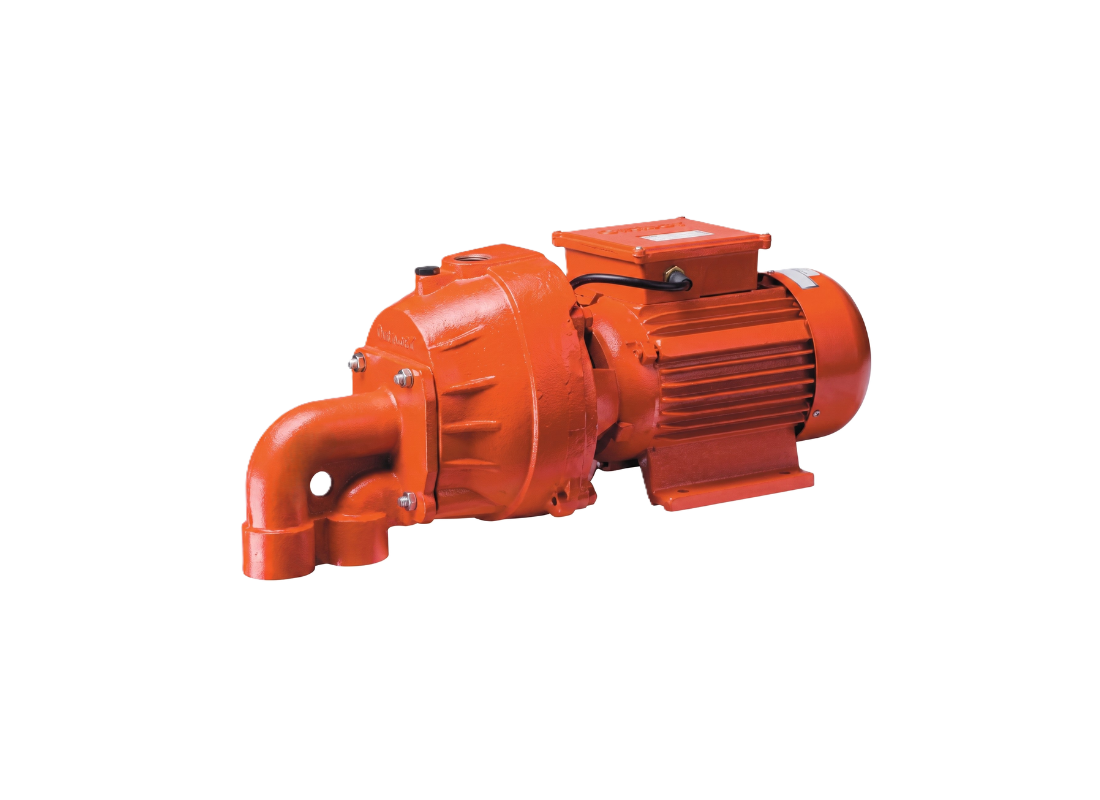

The pump features a cast iron body, stainless steel shaft, double race bearings and a carbon ceramic mechanical seal. The TEFC motor includes thermal overload protection and handles liquid temperatures up to 65°C. Supplied with the WK-CJ850 water kit assembled and glued, including a 60 litre tank with 20 litre draw-off. Covered by a 2-year warranty; loss-of-prime switch optional.
FEATURES
- DW32-15 injector reaches 82 m of maximum head.
- 40 mm suction and 32 mm discharge pipework.
- Three-phase 2.4 kW / 415V motor draws 5 Amps per phase.
- Thermoplastic injector resists salt, hard water and iron.
- Smooth bore reduces turbulence over long pipe runs.
- No moving parts or electricity down the bore.
- Jet and venturi sized to match bore yield.
- Cast iron pump body with stainless steel motor shaft.
- Double race bearings with carbon ceramic mechanical seal.
- TEFC motor with thermal overload protection.
- Rated for liquid temperatures up to 65°C.
- WK-CJ850 water kit supplied assembled and glued.
