Farm irrigation supply at the largest scale the CJ range offers is where the DW79-20 injector operates, and its 415V configuration brings the same 170 L/Min peak flow — the highest of any CJ injector — to three-phase properties. Using the large 50 mm/40 mm pipe class, it minimises friction at these volumes for maximum throughput with three-phase efficiency.
Head reaches 53 m at 10 m suction. The three-phase 2.4 kW / 415V motor draws 5 Amps per phase — a fraction of the 14.1 Amps the single-phase equivalent requires — supporting demanding high-volume duties with efficient operation.
The injector sits down the bore, keeping moving parts and electricity above ground. Thermoplastic injector resists salt, hardness and iron. At this flow rate the smooth internal bore keeps turbulence low. The jet and venturi are matched to bore yield. An optional Offset Flange (101431, 1½ x 1½ inch female thread) allows installation away from the bore to access water above flood level or closer to electricity.

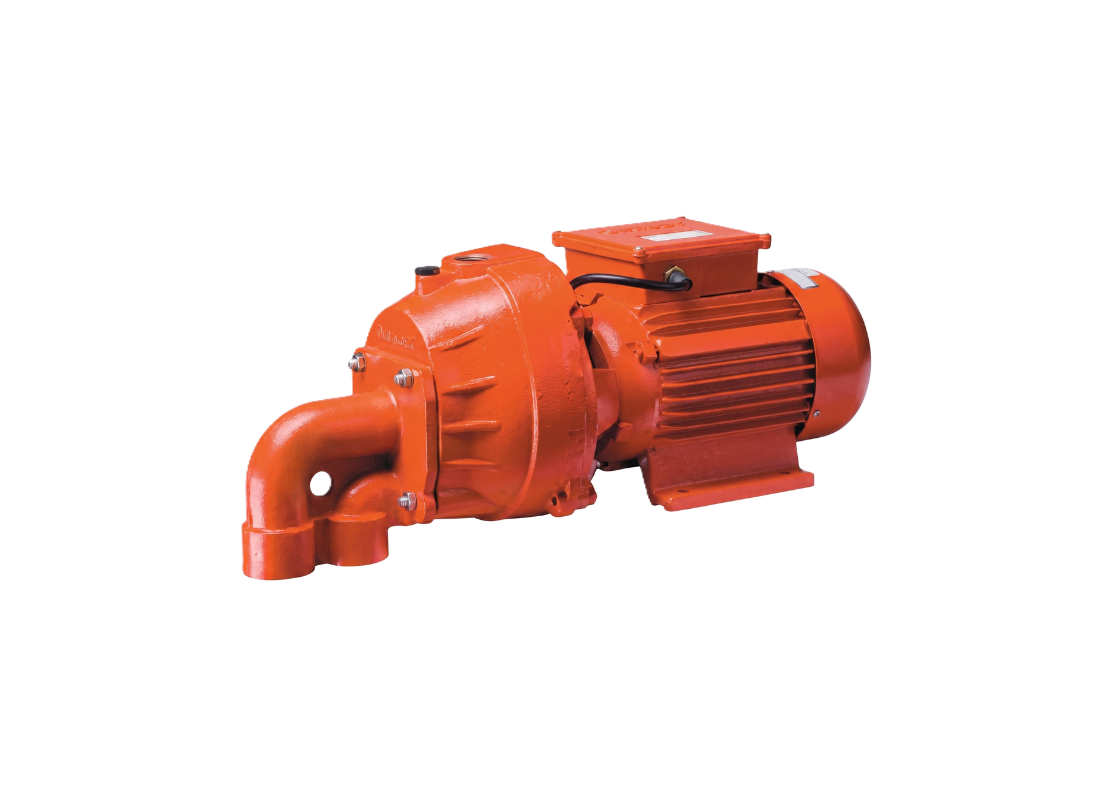

The pump features a cast iron body, stainless steel shaft, double race bearings and a carbon ceramic mechanical seal. The TEFC motor includes thermal overload protection and handles liquid temperatures up to 65°C. Supplied with the dedicated WK-CJ850 water kit assembled and glued, including a 60 litre tank with 20 litre draw-off. A 2-year warranty applies; loss-of-prime switch optional.
FEATURES
- DW79-20 injector with 50 mm suction and 40 mm discharge pipework.
- Three-phase 2.4 kW / 415V motor draws 5 Amps per phase.
- Thermoplastic injector tolerates salt, hard water and iron.
- Smooth injector bore reduces turbulence at maximum flow.
- No moving parts or electricity down the bore.
- Jet and venturi matched to available groundwater yield.
- Cast iron pump body with stainless steel motor shaft.
- Double race bearings with carbon ceramic mechanical seal.
- TEFC motor with thermal overload protection.
- Suitable for liquid temperatures up to 65°C.
- WK-CJ850 water kit supplied assembled and glued.
- Includes pressure gauge, brass 5-way tee, gate valve and stainless steel barrel union.
