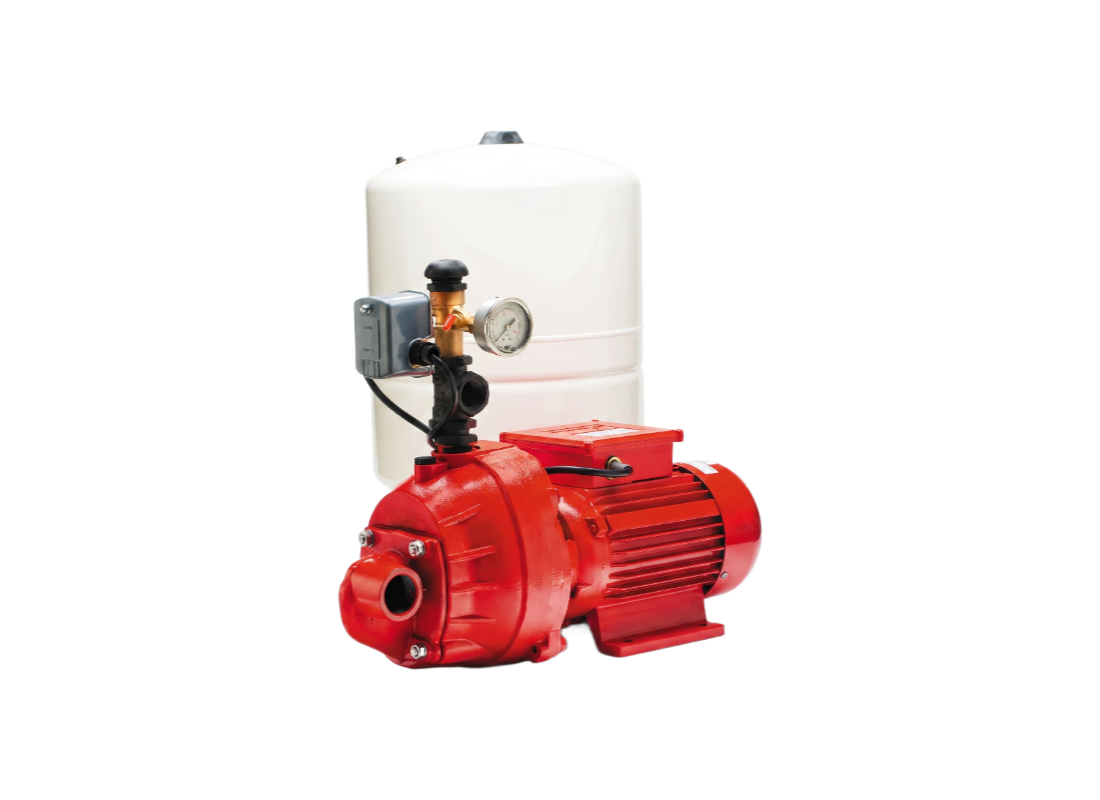

Orange Pumps CJ850-SW59 Cast Iron Shallow Well Pressure Pump for Bulk Tank Filling with 60 Litre Tank

Storage filling and automatic water transfer are the primary focus of this high-capacity three-phase pressure system. It is engineered for agricultural sites requiring an automatic solution for moving clean water volumes from dams or rivers. The integration of a 60 litre pressure tank ensures that bulk liquid transfer is managed with high energy efficiency and reduced motor stress.

The unit features a 2.4 kW motor drawing 5.0 Amps per phase on a 415v three-phase supply for stable and efficient performance. Hydraulic output is characterized by a maximum flow rate of 205 L/Min and reaching a maximum head of approximately 56 m. This profile is optimized for facilities that manage simultaneous high-volume distribution and storage replenishment tasks.

This model is equipped with the WK-CJ850 water kit and a Type D mechanical switch integrated with a 60 litre pressure tank for automated management. Its internal SW59 injector is hydraulically tuned to deliver high water volumes while the jet and venturi design purges air from the casing. The large 60 litre tank provides increased draw-off, delaying pump starts and saving wear during heavy-duty automatic usage.

Mechanical integrity is supported by a solid cast iron body and a double race bearing system that shares the motor load across two rows. The Type D mechanical switch is engineered for high tolerance to electrical surges, making it well suited to remote rural installations. The entire assembly is rated for liquids up to 65°C and is backed by a 2-year manufacturer warranty.

FEATURES

• 2.4 kW three-phase 415v motor offers high efficiency and consistent torque for bulk water management.
• 60 litre pressure tank provides increased water draw-off capacity to effectively reduce pump cycling and energy consumption.
• WK-CJ850 water kit features a stainless steel barrel union and brass 5-way tee for automated site management.
• Type D mechanical switch offers superior resistance to voltage spikes and power fluctuations in remote agricultural sites.
• SW59 injector configuration is designed to achieve high liquid volumes for rapid replenishment duties.
• Double race bearing technology effectively manages axial forces to significantly increase the service life of the motor.
• Large oval casing holds ample water around the impeller to assist with self-priming.
• TEFC motor protection and stainless steel motor shaft ensure internal electrical components remain protected from dust and moisture.
