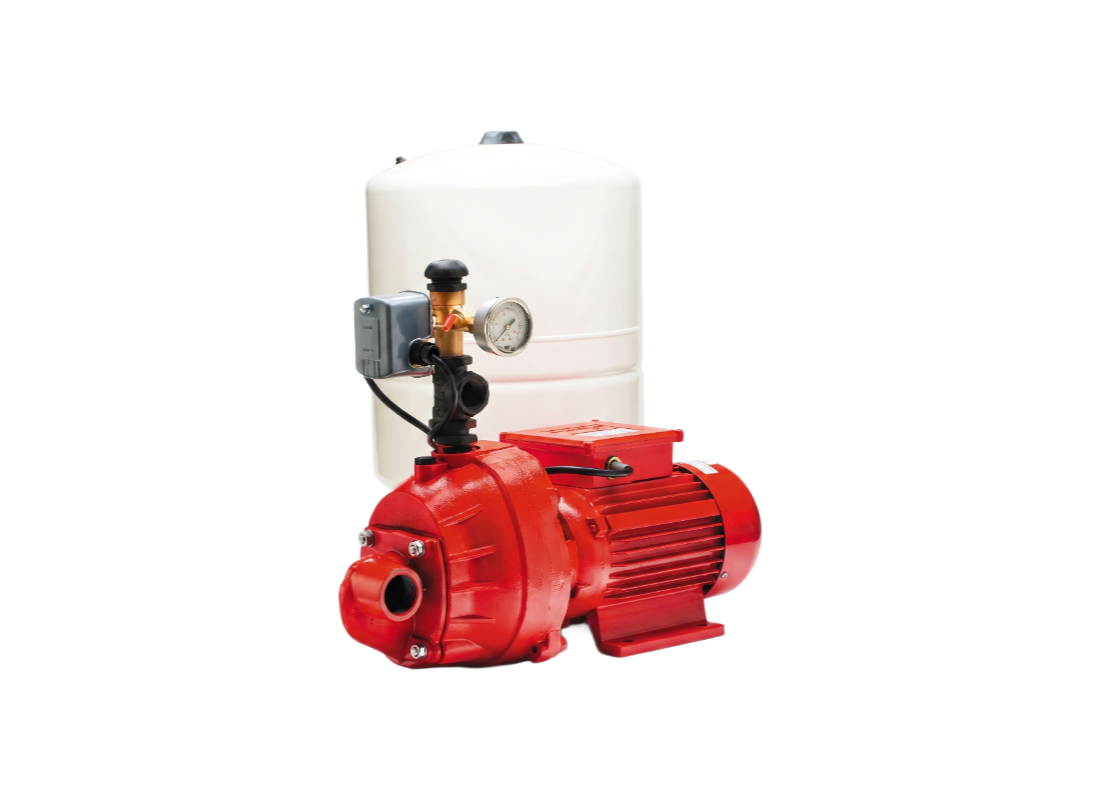

Orange Pumps CJ850-SW77 Cast Iron 3-Phase Shallow Well Pressure Pump for High Static Head with 60 Litre Tank

Static head distribution and automated water supply for vast site networks are the core service duties for this three-phase pressure pump. It is engineered for rural properties where clean water from dams or wells must be moved automatically over extreme terrain distances. The inclusion of a 60 litre pressure tank ensures that discharge pressure is available immediately while maximizing system efficiency.

The system features a 2.4 kW motor drawing 5.0 Amps per phase on a 415v three-phase supply for stable site activation. Hydraulic performance is characterized by a maximum head of approximately 79 m and delivers a maximum flow rate of 92 L/Min. This high-pressure profile is specifically optimized for overcoming vertical lift in automated property water networks.

Factory-fitted with the WK-CJ850 water kit and a Type D mechanical switch, the system includes a 60 litre pressure tank for automatic management. Its internal high-head SW77 injector works with the jet and venturi design to maximize pressure while effectively purging air from the casing. The 60 litre tank volume provides increased draw-off capacity to significantly reduce cycling and save wear on the motor.

Mechanical durability is provided by a solid cast iron body and a double race bearing system that protects the motor from axial forces. The Type D mechanical switch contains no sensitive electronics, providing high resistance to the effects of lightning and power surges common in remote areas. The unit handles liquid temperatures up to 65°C and includes a 2-year warranty.

FEATURES

• Rugged cast iron casing provides a rigid housing capable of withstanding the rigors of demanding agricultural and farm service.
• 60 litre pressure tank provides increased water draw-off to effectively minimize pump cycling and reduce system wear.
• WK-CJ850 water kit includes a stainless steel barrel union, gate valve, and pressure gauge for monitoring site performance.
• Type D mechanical switch with heavy-duty relay points provides reliable automatic operation without electronic risks.
• SW77 injector configuration is tuned to achieve high discharge pressure for site distribution.
• Double race bearing technology effectively manages axial and radial forces to extend the service life of the motor.
• Corrosion-resistant stainless steel shaft and TEFC housing protect the system from moisture and environmental contaminants.
• Large oval casing holds ample water around the impeller to assist with self-priming.
