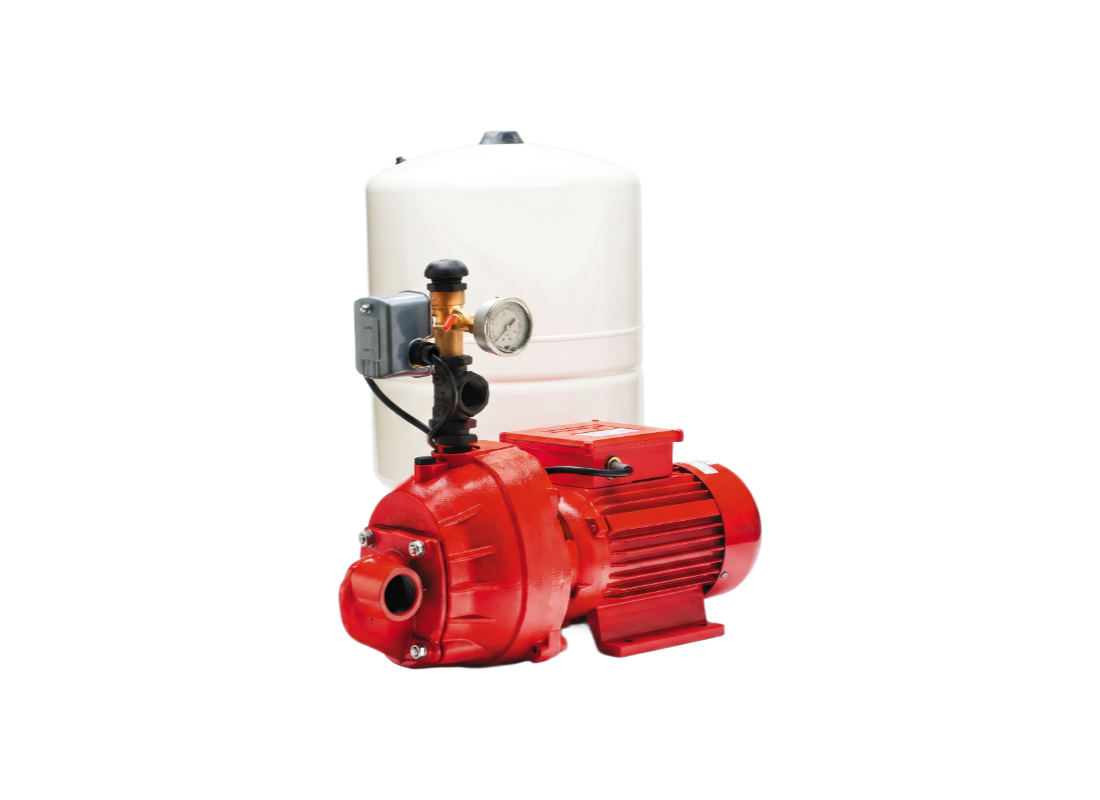

Orange Pumps CJ850-SW89 Cast Iron Shallow Well Pressure Pump for Farm Water Supply with 60 Litre Tank

Farm water management and automatic irrigation distribution are the intended applications for this three-phase jet-driven pressure pump. It is designed for rural sites requiring an automated 415v solution for moving clean water with balanced pressure. The 60 litre pressure tank provides the largest pressure tank option in the range, ensuring steady delivery across site networks with high efficiency.

Driven by a 2.4 kW three-phase 415v motor, the unit draws a rated current of 5.0 Amps per phase. Hydraulic characteristics include reaching a maximum head of approximately 68 m and a maximum flow rate of 146 L/Min. This balanced output is ideal for facilities that manage simultaneous stock trough supply and site irrigation tasks automatically.

Equipped with the WK-CJ850 water kit and a Type D mechanical switch, the system utilizes a 60 litre pressure tank for automated operation. Its internal SW89 injector is hydraulically tuned for balanced pressure and flow, while the jet and venturi design purges air from the casing. The large 60 litre tank maintains increased draw-off capacity, which effectively minimizes pump cycling and reduces mechanical wear over time.

Construction hardware includes a solid cast iron body and a double race bearing system designed for mechanical longevity under load. The Type D mechanical switch is engineered without sensitive electronics, providing high resistance to power surges or lightning typical of rural sites. The assembly handles liquid temperatures up to 65°C and includes a 2-year Orange Pumps warranty.

FEATURES

• Solid cast iron construction ensures the system remains a durable fixture in harsh outdoor agricultural and farm environments.
• 60 litre pressure tank provides increased water draw-off capacity to effectively minimize motor start cycles and save energy.
• WK-CJ850 water kit comes assembled with a brass 5-way tee and pressure gauge for reliable automated site distribution.
• Type D mechanical switch is designed for high electrical tolerance against surges and voltage spikes in remote properties.
• SW89 injector configuration delivers an optimal performance curve suitable for both pressurised distribution and transfer.
• Double race bearing assembly shared across two rows distributes mechanical loads for improved stability in high heat.
• Stainless steel motor shaft provides corrosion resistance.
• Large oval casing holds ample water around the impeller to assist with self-priming.
