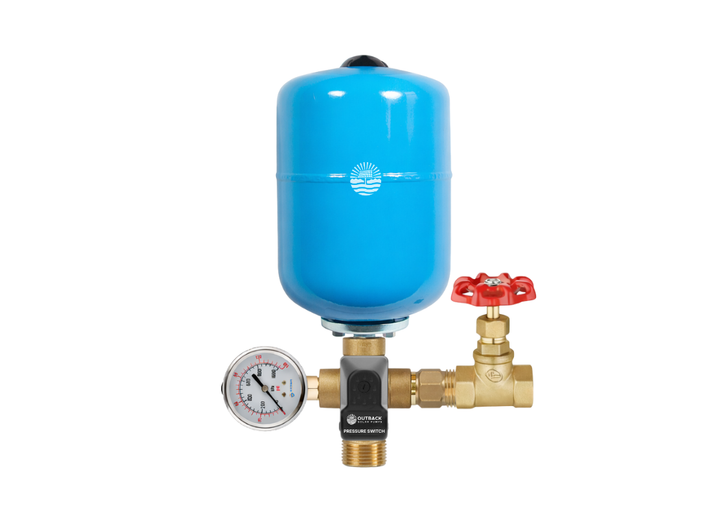

Outback AutoMate 25mm Headworks Kit to Suite Pressurised Solar Pumps

The Outback AutoMate 25mm Constant Pressure Headworks Kit is a complete installer-ready solution designed to convert solar bore pump systems into a fully pressurised water supply. By pressurising the delivery line, the AutoMate allows solar pumps to operate reliably with float valves, long pipeline runs, and remote tanks where traditional float switches may be impractical.

The system uses a reverse-acting pressure switch combined with an 8L pressure vessel to automatically start and stop the pump based on system pressure. When water demand opens—such as when a float valve drops in a tank or trough—the pressure falls and the pump starts. Once pressure is restored, the pump automatically shuts off, providing smooth and reliable system operation.

Designed specifically for solar pumping systems, the AutoMate headworks assembly reduces pump cycling, protects system components, and enables stable pressure delivery, making it ideal for livestock watering, irrigation supply, and remote tank filling applications.

FEATURES

• Converts solar bore pumps into a constant pressure water supply system

• Reverse-acting pressure switch automatically starts and stops the pump

• 8L pressure vessel reduces pump cycling and pressure fluctuations

• Designed for 25mm pipeline installations

• Allows use of float valves in tanks or troughs

• Ideal for long distance pumping systems

• Reduces electrical signal issues associated with float switches

• Complete installer-ready headworks assembly

WHATS INCLUDED

• Reverse-acting pressure switch

• 8L PN10 pre-charged pressure tank

• 25mm brass 5-way tee with ¼" ports
• 1000kPa pressure gauge

• 25mm brass nipple

• 25mm gate valve

• 10m 2-core electrical cable for pressure switch wiring
