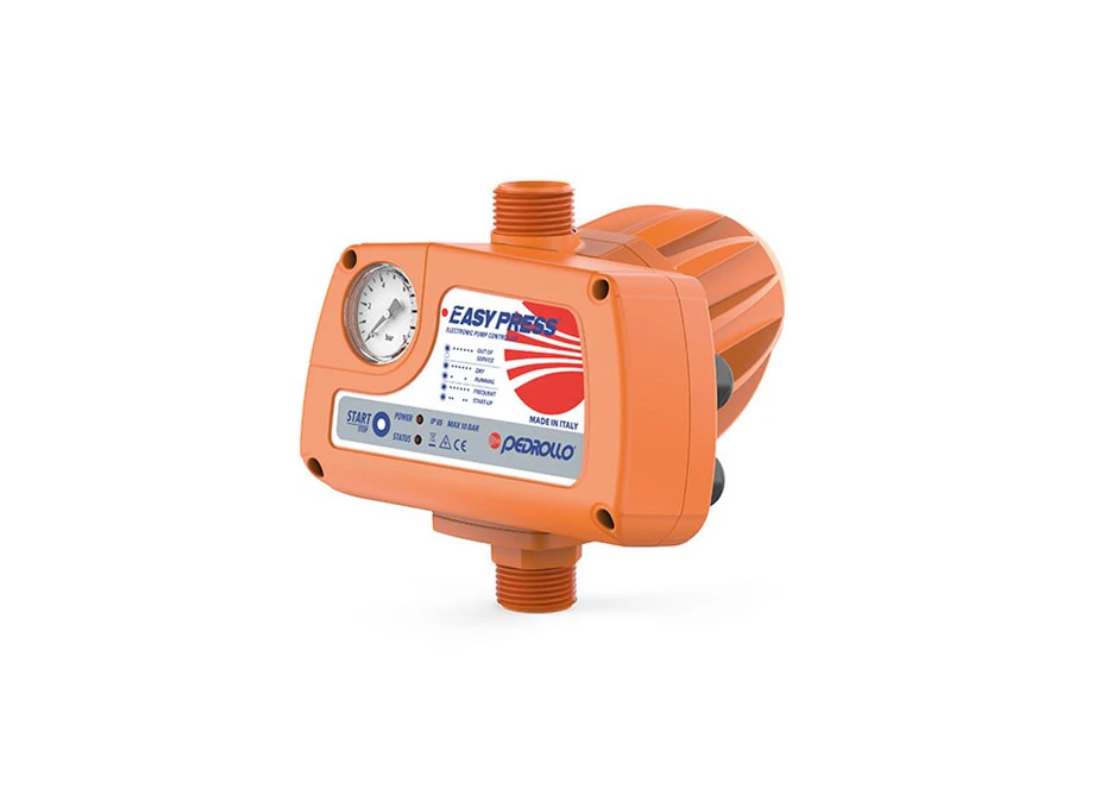

Pedrollo EASY EASYPRESS1.5 Electronic Pressure Pump Controller

The Pedrollo EASYPRESS 1.5 is a fully automatic electronic pump controller designed to control and protect single-phase domestic pumps up to 2 HP.

Equipped with an integrated pressure sensor and flow sensor, the EASYPRESS automatically starts the pump when system pressure drops below 1.5 bar and stops it when flow ceases or falls below 2 L/min. The built-in micro-accumulation chamber allows operation even without an expansion tank, although the use of a small pressure tank is recommended for optimal performance.

Integrated electronics provide protection against dry running, frequent cycling due to leaks, and system lockout caused by inactivity. With IP65 protection and a maximum operating pressure of 10 bar, the EASYPRESS is ideal for domestic water pressure boosting and irrigation systems.

FEATURES

• Electronic automatic pump controller
• Restart pressure: 1.5 bar
• Maximum flow capacity: 170 L/Min
• Suitable for pumps up to 2 HP
• Integrated pressure and flow sensors
• Automatic start/stop operation
• Dry-run protection
• Anti-cycling protection (leak detection)
• System inactivity lockout protection
• Built-in micro-accumulation chamber
• Dual LED status indicators
• Integrated pressure gauge
• IP65 protection rating
• Maximum operating pressure: 10 bar
• Liquid temperature up to +55°C
