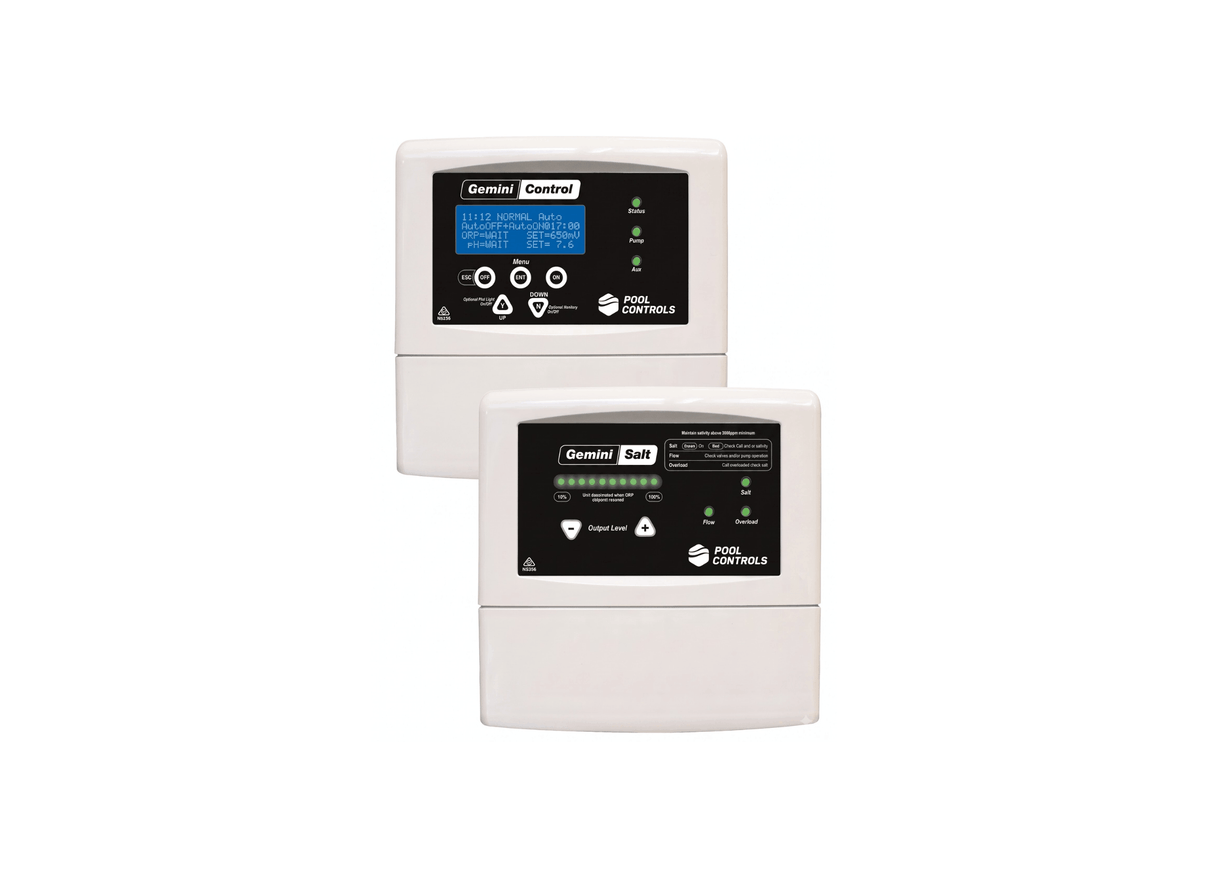

PoolControls GEMINI 30 Controlled Salt Water Management System for Domestic Pools & Spas

The GEMINI 30 provides fully controlled salt water management for domestic swimming pools and spas. While the pool system is running, the Gemini Control Unit continuously analyses water chemistry and turns on the Salt Unit when more chlorine is required. It also monitors pH and adjusts it to help maintain the desired water chemistry.

The multi-electrode probe assesses pool water chemistry and determines the chlorine production required from the electrolytic cell. At the same time, the Gemini System controls pH by feeding accurate doses of acid through a peristaltic pump. This automated approach is designed for use with conventional and mineral salt pools and spas.

For scheduled operation, the control unit uses a 24-hour quartz-crystal timer backed by a Real-Time Clock. During a power failure, the system keeps time and maintains AutoMode functions without requiring the settings to be re-programmed. The weather-resistant housing is designed for operation in full sun and rain.

The injection manifold is positioned after accessories such as the heater and before the chlorinator cell. This arrangement places the manifold within the return-side installation before chlorine is produced by the electrolytic cell.

Features

• Continuous water-chemistry analysis allows the controller to manage chlorine production and pH adjustment.
• Multi-electrode probe measures pool water chemistry and supports automatic control.
• Electrolytic cell produces chlorine when additional sanitisation is required.
• Peristaltic pump provides controlled acid dosing for pH adjustment.
• Self-cleaning function uses electronic polarity reversal to help clear scale from the electrolytic cell.
• Bayonet probe fitting provides simple twist-lock installation into the injection manifold.
• 24-hour quartz-crystal timer and Real-Time Clock maintain programmed operation during power failures.
• Dedicated filtration-pump outlet and two additional outlets provide timed power for the Salt Unit and other pool equipment.
• Weather-resistant construction is designed for operation in full sun and rain.
• Dosing pump squeeze tubes require replacement every six months by a suitably qualified technician.
• 3 Year Warranty applies to new domestic installations.

Warranty: 3 Year Manufacturer's Warranty.
